Cantilevered Cadaver Storage Racks SMI-4020

CLICK TO SCAN

Jindal body racks are uniquely designed for storage of cadavers in a cold room

The portable mortuary rack is ideal for a variety of cadaver storage applications. It is more compact than conventional cantilever storage units allowing for greater storage capacity without increasing space.

Free standing, mobile racking which can be used in any existing cold room or cold store to increase body storage capacity.

Storage capacity can be expanded by simply adding cadaver storage racks to designated walk-in refrigerated morgues or trailers. The racks are collapsible, requiring a minimal storage footprint when not in use.They can be easily set up by one person in minutes.

The cadaver storage racks can be custom built for caskets as well as cadaver storage trays or designed around the room specifications. The racks can be easily transported in trucks and trailers.

Construction

The racks are fabricated out of stainless steel having robust, ergonomic design for convenient handling & space saving storage.

These racks are designed according to the customer’s space availability & capacity requirements.

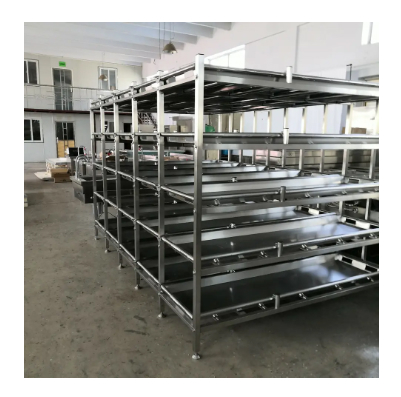

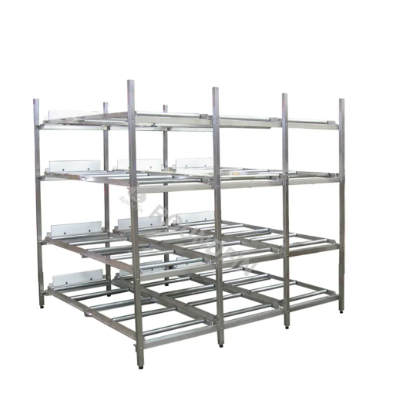

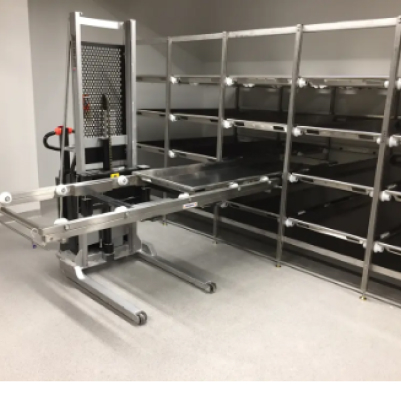

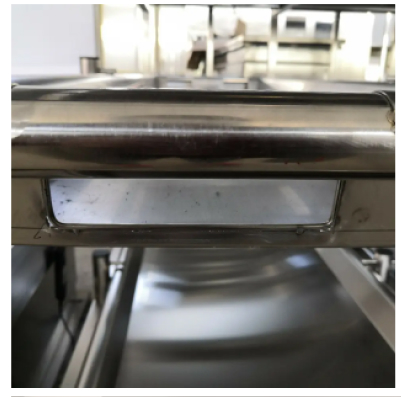

Detailed Images

Technical Data

Model

SMI-4020

Material

Stainless steel 304

Capacity

12 bodies

Over height

180 cm

Body tray size

194 X 58 cm

Thickness of tray

1.0 mm

Body tray load weight

150 Kg

Size

200 X 180 X 180 cm

Tier Height

40 cm

Weight

300Kg

Product Brochure

Product Brochure Link here

Featured Video
