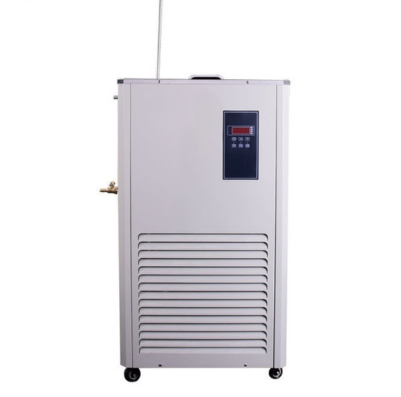

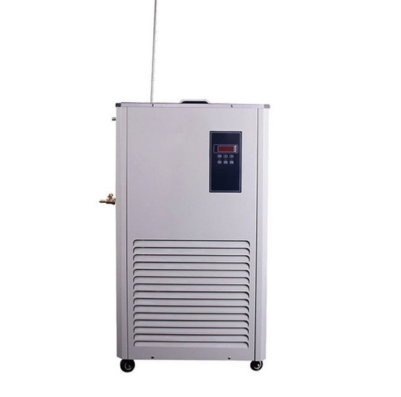

These recirculating chillers are designed for specific use with rotary evaporators.
|
Model
|
SMI-RCA-420
|
SMI-RCSB-5/20
|
SMI-RCSB-20/40
|
|---|---|---|---|
|
Temperature Display
|
LED display
|
||
|
Tank Volume
|
4.9 L
|
20 L
|
5 L
|
|
Matching Reaction Kettle(Steam)
|
1~2L
|
1~5L
|
20L
|
|
Tank Material
|
304 Stainless Steel
|
201 Stainless Steel
|
|
|
Tank Size(mm)
|
220*150*120
|
Φ220*180
|
Φ300*300
|
|
Instrument Temp. Control Range
|
-150°C ~100°C
|
||
|
Temp. Control Accuracy
|
±1°C
|
±0.5°C
|
|
|
Display Temp. Resolution
|
0.1°C
|
1°C
|
|
|
Pump Lift
|
4m
|
4~6m
|
|
|
Circulating Pump Flow
|
15 L/min
|
20L/min
|
|
|
Refrigerant
|
R134A
|
R134A
|
|
|
Refrigerating Capacity
|
450~260W
|
1248~319W
|
3729~989W
|
|
Pressure
|
\
|
2Mpa
|
|
|
Ambient Relative Humidity
|
(60~80％)Ventilation
|
||
|
Temperature Range
|
-40°C ~Room temp.
|
-20°C ~Room temp.
|
-40°C ~Room temp.
|
|
Optimum Ambient Temp.
|
5~35°C
|
5~25°C
|
|
|
Unload Min Temp.
|
-20°C
|
-20°C
|
-42°C
|
|
Circulation Pump Power
|
6W
|
100W
|
|
|
Circulating Pump
|
Magnetic pump
|
Fully-closed & No-leaked special pump
|
|
|
Circulating Water Mouth Interface
|
Outer diameter 11 mm/ Inner diameter 7mm
|
\
|
|
|
Sensor
|
PT100
|
PT100
|
PT100
|
|
Coil Diameter
|
\
|
Φ200mm
|
Φ275mm
|
|
Opening Size
|
\
|
Φ195mm
|
Φ250mm
|
|
Power Supply
|
220V±10%, 50Hz
|
380V±10%,50Hz
|
|
|
External Size (L*W*H)mm
|
497*232*490
|
610*500*910
|
510*345*650
|
|
Package Size (L*W*H)mm
|
590*310*570
|
650*450*870
|
610*500*910
|
|
Gross Weight (kg)
|
30
|
62
|
63
|
