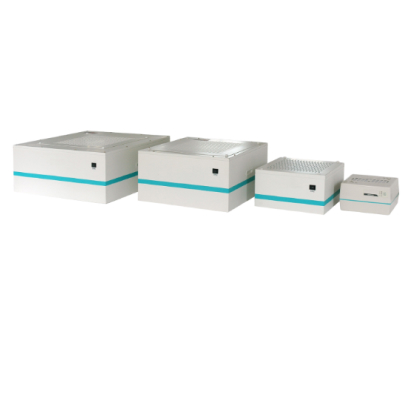

Air Clean Unit SMI-156ACU

CLICK TO SCAN

Description

  • It adopts a high performance AT fan with two speed gears
  • Use high quality HEPA filters, applicable to various cleanliness requirements
  • You may choose a special filter for removing gaseous chemical pollutants
  • Low noise, low power consumption, and light weight
  • The delicate structure makes maintenance easier
  • The motor is with thermal protection
  • The end user cab install the MAC vertically or horizontally by themselves
  • Suitable for quickly setting up various clean bench’s, clean booths, pass box and clean chest
Enquire Now

Technical Data

Model

Standard Type

E Type

P Type

SMI-201

SMI-500

SMI-800

SMI-200E

SMI-300E

SMI-600E

SMI-900E

SMI-60P

Adjustable Gear

H      L

H         L

H         L

H         L

H         L

H        L

H        L

  H

L

Rated Air Volume (m3/h)

200    160

500   400

800   650

200   160

300   240

600   450

900   650

60

36

Filter Efficiency

≥99.99%(@≥0.3μm)

Noise (dB(A))

≤58

≤52

≤54

≤56

≤58

≤56

≤52

Power Supply

AC220V, 1φ, 50Hz

Consumption (W)

≤30

≤120

≤140

≤35

≤80

≤110

≤140

≤30

Overall Dimension (mm)

365 X 365 X 200

535 X 535 X 280

660 X 660 X 280

400 X 400 X 200

500 X 500 X 200

610 X 610 X 200

1170 X 570 X 200

250 X 250 X 145

Size and Qty. of HEPA (mm)

305 X 305 X 50 X ①

484 X 484 X 50 X ①

610 X 610 X 50 X ①

400 X 400 X 69 X ①

500 X 500 X 69 X ①

610 X 610 X 69 X ①

1170 X 570 X 69 X ①



Weight (Kg)

11

24

28

9

12

16

22

3
