S.M. Scientific Instruments (P) LTD

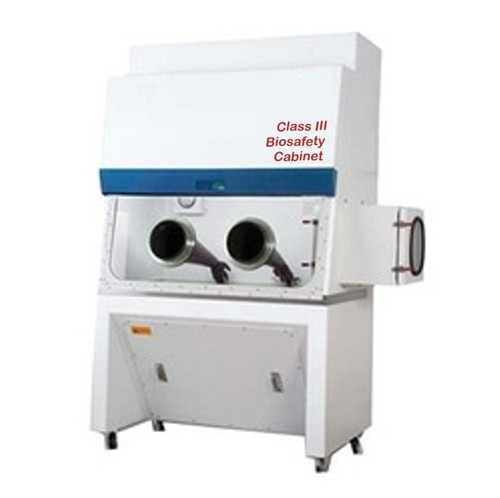

Class III Biological Safety Cabinet SMI-163C

Home ≫Clean Air >Biosafety Cabinets >Class III Biological Safety Cabinet SMI-163C

Class III Biological Safety Cabinet SMI-163C

CLICK TO SCAN

Description

JINDAL Biological Safety Cabinet Class III is a totally enclosed & gas-tight with ULPA filtered supply & exhaust air. Work is performed with long-sleeved gloves. The cabinet is kept under negative pressure of 120Pa, & the airflow is maintained by a dedicated exterior exhaust system. It can protect the operator, product & environment.
The biosafety cabinet is CE certified, and complies with EN 12469.

Advantages

  • EN12469 certified
  • Two HEPA filters
  • Dual DC centrifugal blowers
  • Elegant Touch screen control system
  • Front 10° slanted to offer operator comfort
  • With memory function in case of power failure
  • Complete interior made of single piece stainless steel
  • UV resistant powder coated with SS304 interior
  • Complete monitoring of the parameters of the cabinet through advanced microprocessor
Previous
Next
Enquire Now

Detailed Images

Ergonomic Features

  • 7-inch touch color display screen: Touch operation, real-time, more clear and dynamic display of various values
  •  Power-off memory, restore the state before power-off after power-on, and have visual prompts to alarm
  • Screen lock function: Touch the screen lock button lightly, and the operation interface is locked to prevent mis-operation and
    facilitate management
  • The three side walls of the working area adopt high-quality 304# stainless steel integrated structure, which is easy to clean
  • The work surface is made of high-quality 304# stainless steel, which is designed in a basin shape and is easy to clean
  • Convenient front window design, the front window glass can be opened and closed freely, which is convenient for putting in
    large equipment and cleaning operations

Technical Data

Specs/Model

SMI-163C-4

SMI-163C-6

External Size (W X D X H)

1750 X 890 X 2100 mm

2275 X 890 X 2250 mm

Internal Size (W X D X H)

1240 X 650 X 660 mm

1950 X 650 X 650 mm

Pass Box Size (W X D X H)

Internal size : 400 X 370 X 330mm

External size : 535 X 495 X 422mm

Internal size : 400 X 370 X 330mm

External size : 535 X 495 X 422mm

Gloves

One pair of 800mm butyl rubber gloves

One pair of 800mm butyl rubber gloves

Front Window

8mm thick toughened glass UV resistant

8mm thick toughened glass UV resistant

Production/Test Standard

CE / In accordance with EN12469

CE / In accordance with EN12469

Display

Colour Touch Screen Display

Colour Touch Screen Display

Pre-Filter

Polyester fiber, washable

Polyester fiber, washable

Pressure

Negative pressure >120 Pa

Negative pressure >120 Pa

HEPA filter

Air Supply filter : Efficiency 99.999% at 0.3um

First Exhaust filter : Efficiency 99.999% at 0.3um

Second Exhaust filter : Efficiency 99.999% at 0.3um

Air Supply filter : Efficiency 99.999% at 0.3um

First Exhaust filter : Efficiency 99.999% at 0.3um

Second Exhaust filter : Efficiency 99.999% at 0.3um

Noise Level

<58dB

<58dB

Illumination

>1000 Lux Eco-friendly LED light (18W X 2)

>1000 Lux Eco-friendly LED light (22W X 2)

Alarms

Audio visual alarm, deviation in air pressure, Filter replacement

Audio visual alarm, deviation in air pressure, Filter replacement

Work Zone MOC

SS 304 grade construction

SS 304 grade construction

DC Centrifugal Blower

Dual DC Centrifugal blower with speed control, high efficiency & low power consumption

Dual DC Centrifugal blower with speed control, high efficiency & low power consumption

UV Lamp

30W ; 254 nm

40W ; 254 nm

Power Supply

110/220V 50/60Hz, Single Phase

110/220V 50/60Hz, Single Phase

Package Size(W X D X H) & Weight

1900 X 1060 X 2290 mm & 410Kg.

2500 X 1060 X 2290 mm & 610Kg.
