Perchloric Acid Fume Hood SMI-160P

Home ≫ Clean Air> Fume Hood > Perchloric Acid Fume Hood SMI-160P

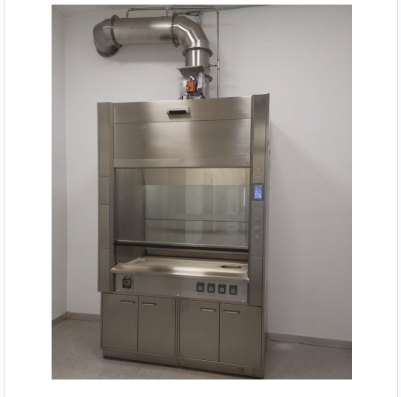

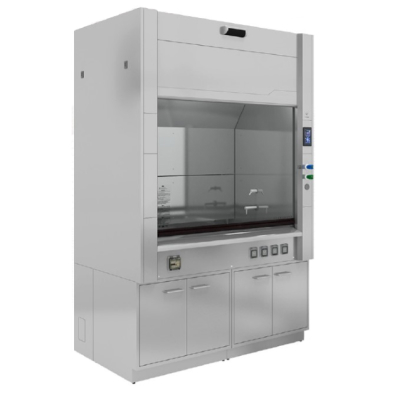

Perchloric Acid Fume Hood SMI-160P

CLICK TO SCAN

Description

  • Dimension: W1200/1500/1800 X D900 X H2350mm
  • Available Width: W920/1220/1520mm
  • Max Open Height of Sash:720mm
  • Inside Max Height: 1230mm
  • Inside Max Depth:660mm
  • Diameter of exhaust outlet:250/315mm
  • Light: max 500 Lux
  • Main body: Totally made by Stainless Steel 316
  • Airflow Velocity: 0.5m/s
  • Sash: Anti-explosion Glass
  • Built-in Showing System to prevent from the crystalline object to pile up
  • All inside liners of hood perfectly welded to prevent from overflow of any liquid
  • Multiple modules designed on Left and Right Column, flexibly to change the functions as per the requests
  • The handle of Sash door painted by Teflon with strongly chemical resistance
  • 2 Nos. of base storage cabinets, easily connected with ventilation system
Previous
Next
Enquire Now

Accessories

  • 4 Nos. of Gas Tap
  • 1 No. of Cup sink with Water tap
  • 4 Nos. of Socket, 10A (Standard accessory)

Technical Data

Model No.:

SMI-160P-01

SMI-160P-02

SMI-160P-03

Dimension (L×W×H)

1200 X 900 X 2350mm

1500 X 900 X 2350mm

1800 X 900 X 2350mm

Working Width

920mm

1220mm

1520mm

Max Open Height

≥720mm

Height Inside

1230mm

Depth Inside

660mm

Diameter of Exhaust outlet

250mm

315mm

Light

≥500 lux

Options

VAV, CAV, Gas Tap, Water Tap









Material

Body

316 SS

Sash

Explosive-proof Glass

Worktop

316 SS

Baffle

316 SS

Base Cabinet

Double-doors
