Foot Operated Double Scissor Mortuary Lift SMI-4019DS

Home ≫Mortuary >Hydraulic Mortuary Trolley >Foot Operated Double Scissor Mortuary Lift SMI-4019DS

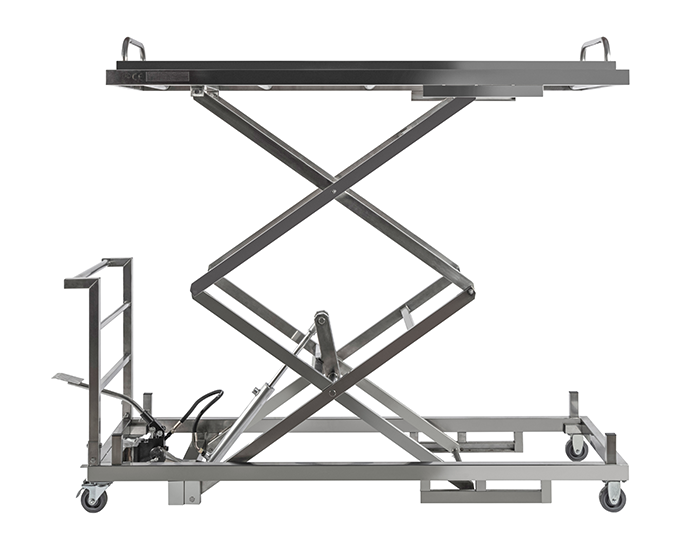

Foot Operated Double Scissor Mortuary Lift SMI-4019DS

CLICK TO SCAN

Features

  • Type: Manual lifting model
  •  2 scissor lifter
  • Lifting height 400 to 2000 mm
  • Made of the high quality stainless steel 304
  • Trolley with Día 13cm casters, all with the brake and it is allowed for easy movement
  • Unit can be easily loaded and unloaded by one person
  • The Lock design for the body tray, avoid  the tray is off down
  • Optional height and body tray width will be according customer requirements
Previous
Next
Enquire Now

Technical Data

Adjustable Lift Height

400 to 2000 mm

Min Height

400 mm

Max Height

2000 mm

Product size

2160 X 640 X 400 mm

Body tray size

1940 X 580 mm

Outer packing size

2230 X 750 X 500 mm

Material

Stainless Steel 304

Thickness of the tray

1.00mm

Actuator

7000N

NW/GW

100/130 Kg

Load Capacity

200 Kg
