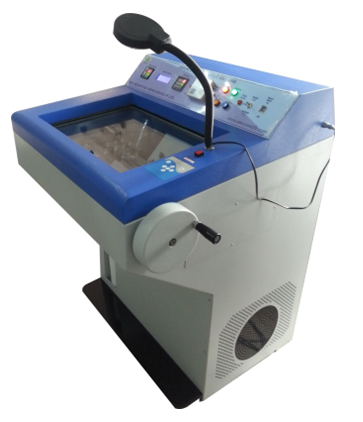

Fully Auto Cryostat Microtome (New Modular Design) SMI-3010FNMD

Home ≫ Histopathology >Cryostats >Fully Automatic Cryostat Microtome (New Modular Design) SMI-3010FNMD

Fully Auto Cryostat Microtome (New Modular Design) SMI-3010FNMD

CLICK TO SCAN

Cryostat Microtome provides a rapid and easy means for the sectioning of natural tissue from 2 to 20 Microns in a step of 2 Microns without distortion for high quality microscopic examination. These are specially designed for clinical and research operations. Sections have the high resolution of cytological details required for pathological diagnosis, histochemistry, fluorescence, biochemistry, microscopy etc. Technologies are simple and easy to learn. To withstand condensation inside the chamber, the rotary microtome is made of entirely rust proof material fitted with an anti roll device to avoid curling of sections. Plastic plate is adjustable in all directions.

At a Glance

  • Robust ergonomically designed Cryostat
  • Heavy duty castors for easy movement of the unit
  • Motorized Hand wheel movement
  • Single/Multiple Cutting Mode
  • Microprocessor based digital PID temp. control
  • Smooth running hand wheel
  • Highly responsive and efficient refrigeration system
  • Spacious chamber
  • Hygienic Drainage System
  • Power-saving refrigeration system
Previous
Next
Enquire Now

Features

  • The robust ergonomically designed cryostat ensures relaxed, efficient working conditions
  • The cryostat microtome offers performance, ease-of-use and versatility to make it the ideal instrument in all types of laboratory work. The Cryostat Microtome is used for cutting thin sections of fresh, frozen material
  • The cryostat temperature ranges up to –40°C, which can be set by a highly accurate microprocessor based on PID digital temp. Indicator cum controller. This low temperature is obtained by a highly efficient refrigeration unit
  • The cryostat microtome also incorporates an inbuilt hot gas time controlled defrosting system. This helps with heating the work area for cleaning purposes

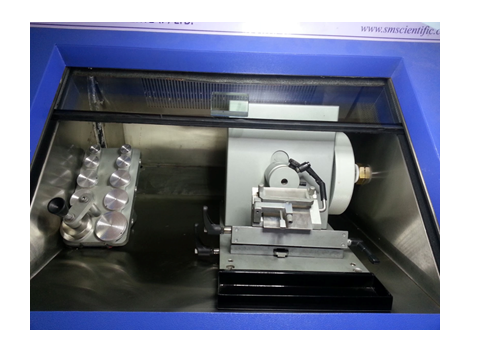

  • The outer body of the cryostat microtome is made of mild steel duly powder coated. The spacious inner chamber is made of polished stainless steel. Sliding acrylic transparent doors are provided
  • It is a top opening design for working access to microtomes. A lamp with an in-built magnifying glass is also provided which switches on automatically whenever the door opens to facilitate easy visibility. A Microtome hand wheel is provided outside the chamber on the right-hand side for easy operation
  • A self-contained drainage system ensures that condensate and defrost fluids are collected in a convenient container positioned at the front of the instrument. This allows controlled collection and disposal of potentially contaminated fluids, thus reducing the potential emission of pathogens into the laboratory environment
  • Motorized hand wheel movement is a standard feature with Single/Multiple cut mode
  • Four castor wheels fitted at the bottom provide easy mobility for use in various locations and for storage when not in use
  • Supplied complete with rustproof in-built microtome, refrigeration unit, transparent door, door cover, four demountable specimen holders, one bottle of low temperature oil and one microtome knife 120 mm long with back and handle in wooden box, cord and plug. Suitable to work on 220 V, single phase, 50 Hz, AC supply

Range Of Section Thickness

  • 0.5um to 100 um
  • 0.5um – 1um in increments of 0.5um
  • 1 um – 10 um in increments of 1um
  • 10um – 20 um in increments of 2um
  • 20um – 50um in increments of 5um
  • 50um – 100um in increments of 10um

Range Of Trimming Thickness

  • 0 to 500 um in increments of 5um
  • 0um – 20 um in increments of 2um
  • 20um – 50um in increments of 5um
  • 50um – 100um in increments of 10um
  • 100um – 500 um in increments of 50 um

Technical Data :

Product
Fully Auto Cryostat Microtome (New Modular Design)
Model No.
SMI-3010FNMD
Temperature of Cryo Chamber
Adjustable Up to -35°C
Temperature of Specimen
Up to -35°C
Temperature of Quick Freeze Shelf
Up to -45ᵒC
Number of Freezing Stations
20
Number of Peltier Cooled Freeze Stations
Up to -60ᵒC:2
Motorized Coarse Feed
Slow 600um/sec ; Rapid 900um/sec
Total Specimen feed
28mm
Vertical Stroke
60mm
Maximum Specimen Size
55 x 55mm
Refrigeration Capacity
690W x 2
Refrigerant
R404A , 300g ± 5g
Input Power
1300 VA
Net weight
200Kg
Designed to Operate On
220V/50Hz AC Supply or 110V/60Hz AC Supply
Defrost
1 automatic defrost cycle per 24hr/manual(duration 12 minutes)
Dimensions of the Machine
780mmL (705mm without handwheel) x 700mmW x 1152mmH
