The JINDAL Handheld Homogenizer SMI-MT-30K is a smart hand-held instrument for fast organization, homogeneous separation, and emulsification. With different dispersing heads, it is appropriate for 0.5–250 ml liquid samples, and the maximum speed is up to 35000 rpm. Its working principle is to make the sample circularly loop into a narrow space between the high speed and relative motion stator to shear and break the sample. E.g., tissue such as muscle, liver, breast, etc. can be completely homogenized in 10–30 seconds. It is applied in various territories, such as bio-pharmaceuticals, gene research, organization breakdown, cell slurrying, clinicopathologic analysis, emulsions, nanometer materials scattering, polymerization reactions, cosmetics, ink and paint, fine chemical engineering, pesticides, prospection, environmental protection, energy sources, etc.
Speed Range
|
8k rpm ~35k Rpm (1k rpm Increment)
|
Rotor Line Speed
|
6.3m/sec~14m/sec
|
Working Noise
|
72dB
|
Voltage
|
AC 220V,50Hz
|
Power Input/Output
|
160W / 110W
|
Dimension (WxDxH)
|
46 x 55 x 230mm
|
Net Weight
|
0.8 Kg
|

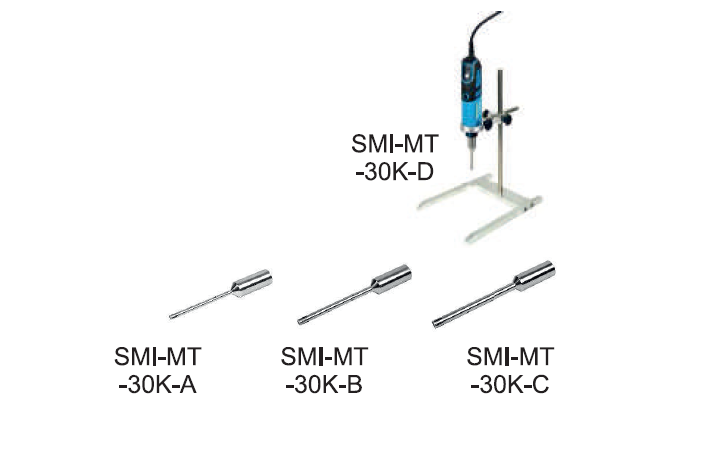

Model No.
|
Handling Capacity
|
Diameter of Outer hEad
|
Diameter of Inner Head
|
Gap Between Outer and inner Head
|
Min/Max. Dipping Depth
|
Length of Head
|
Material
|
---|---|---|---|---|---|---|---|
SMI-MT-30K-A
|
0.5-50ml
|
6mm
|
3.9mm
|
0.1mm
|
20/90mm
|
150mm
|
316L
|
SMI-MT-30K-B
|
1-100ml
|
8mm
|
6.1mm
|
0.3mm
|
20/170mm
|
167mm
|
316L
|
SMI-MT-30K-C
|
1-250ml
|
10mm
|
7.9mm
|
0.3mm
|
20/120mm
|
180mm
|
316L
|
