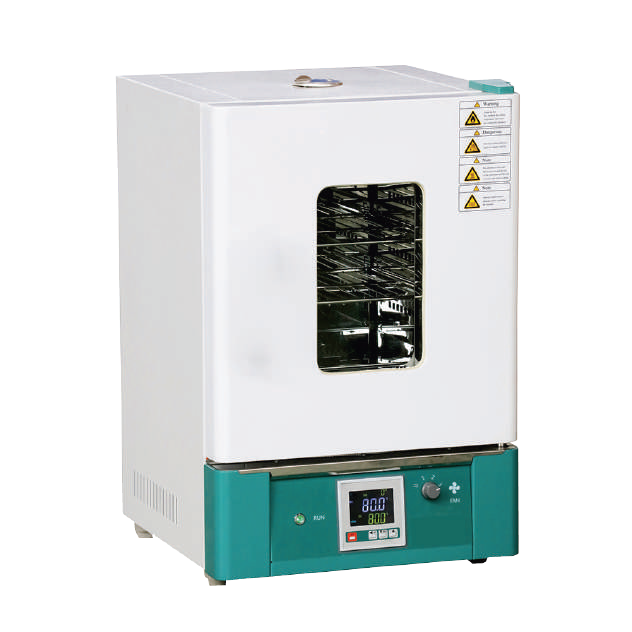

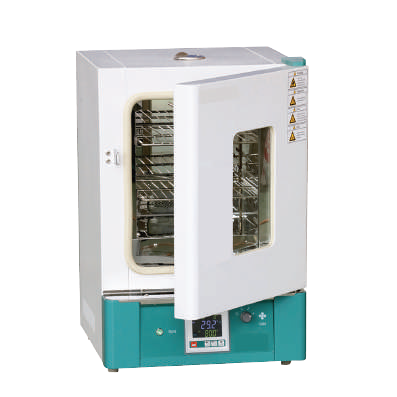

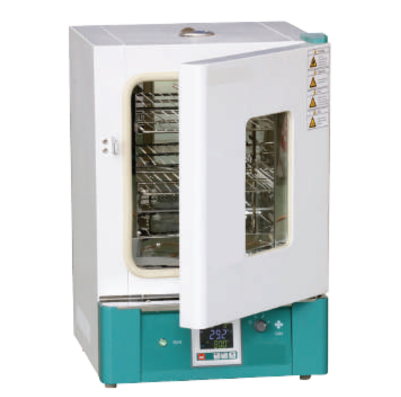

Laboratory Electric Oven (Temp. range up to 3000C): SMI 119
CLICK TO SCAN
Construction:
Jindal ovens are sturdy, with double-walled construction. The inner chamber is made of an ALUMINIUM or STAINLESS STEEL sheet. The outer chamber is made of mild steel sheet, duly powder coated.
The gap between the walls is filled up with special-grade glass wool for proper insulation to avoid heat losses. The inner chamber has ribs for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves. The oven door is mounted on heavy hinges with a handle. The door is duly insulated.
Elements:
Heating elements are made of high-quality nichrome wire and are put inside beads and placed at the bottom and in both side ribs for a uniform temperature all over the work space. Other types of heaters, like jacket heaters, rod heaters, and sheet heaters, are also available for specific requirements.
Temperature Control:
The temperature range of the hot air oven shall be from 500C to 3000C controlled by a hydraulic imported thermostat.
- Thermostat (Temperature accuracy +/- 1 Deg C)
- PID Control (Temperature accuracy +/- 0.5 Deg C)
Please specify the kind of controller and accuracy required at the time of ordering.
Ventilation
Air Ventilators are placed near the top of the both sides to remove hot gases and fumes if any.
Control Panel:
consisting of a switch to turn on or off the power, a rotary switch to select high or low rates of heating, a thermostat control knob, and indicators for mains and thermostats. Supplied with a cord and plug.
Designed to operate on a 220 volt, single-phase, 50 Hz AC supply. (Please specify any customization.)
Size of inner chamber:
W × H × D No. of Shelves
300 × 300 × 300 mm(12”X12”X12”) 2
350 × 350 × 350 mm(14”X14”X14”) 2
450 × 450 × 450 mm(18”X18”X18”) 2
450 × 600 × 450 mm(18”X24”X18”) 3
600 × 600 × 600 mm(24”X24”X24”) 3
600 × 900 × 450 mm(24”X36”X18”) 3
600 × 900 × 600 mm(24”X36”X24”) 3
