Vortex Mixer (Microprocessor Controlled) SMI-187A

Vortex Mixer (Microprocessor Controlled) SMI-187A

Home ≫Heating & Environment>Vortex Mixers>Vortex Mixer (Microprocessor Controlled) SMI-187A

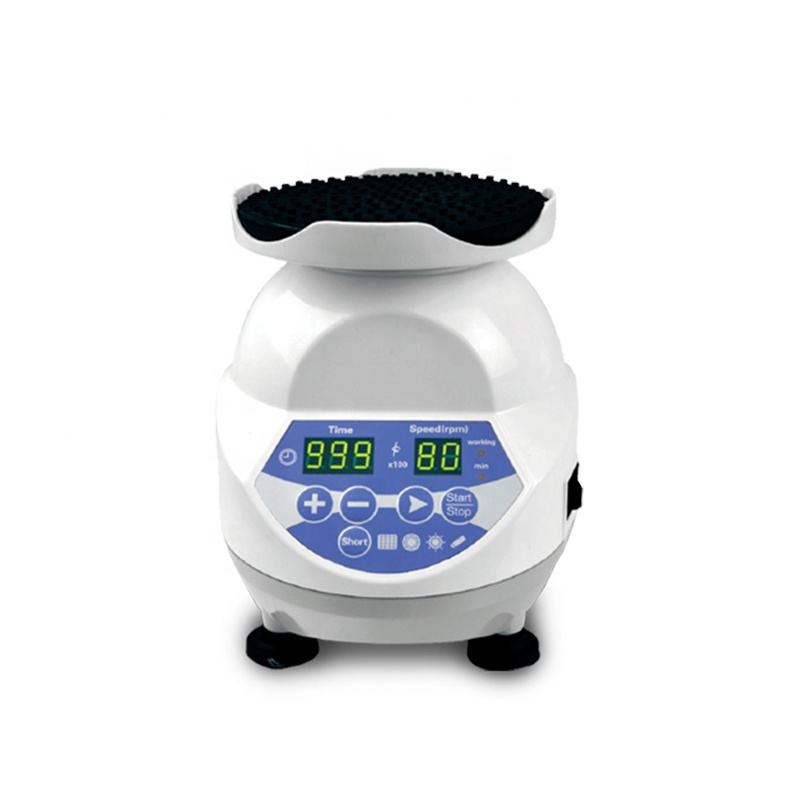

Vortex Mixer (Microprocessor Controlled) SMI-187A

CLICK TO SCAN

Description

The JINDAL microprocessor-controlled vortex mixer is used for vibration, blend, and stir of sample tissue, cells, bacteria, liquids, and chemical reagents in life science and the physical and chemical analysis fields. Multiple tubes are suitable for 0.2–50 ml microtubes and tubes or small containers with a diameter less than 108mm.

Ergonomic Product Features:

  • Smaller footprint, mini, and compact appearance.
  • Powerful function, sucker-type under-chassis.
  • Super shockproof, ideal for high-speed operation.
  • Multiple mixing modes, touch operation, continuous operation, and timing settable.
  • Wide speed range: 0–3000 rpm/min, continuously variable motor, and brushless DC motor.
  • Shaking blocks are convenient for replacement, stable and reliable, and sturdy and durable.
  • Various shaking block adapters are optional (suitable for Eppendorf tubes).
Previous
Next
Enquire Now

Technical Data:

  • Operation : Key + Digital Microprocessor Display & Control
  • Shaking Orbit : 3mm
  • Shaking Mode : Circle
  • Operation mode : Continuous running or short mix
  • Speed : 300-3000 RPM
  • Timer Range : 1sec to 999 min
  • Voltage : Designed to operate on 100-250V Single Phase 50/60Hz AC supply with adapter
  • Power : 30W
  • Suitable Optional Accessories : All
  • Dimension : 132 X 156 X 150mm
  • Net Weight: 2.2Kg.

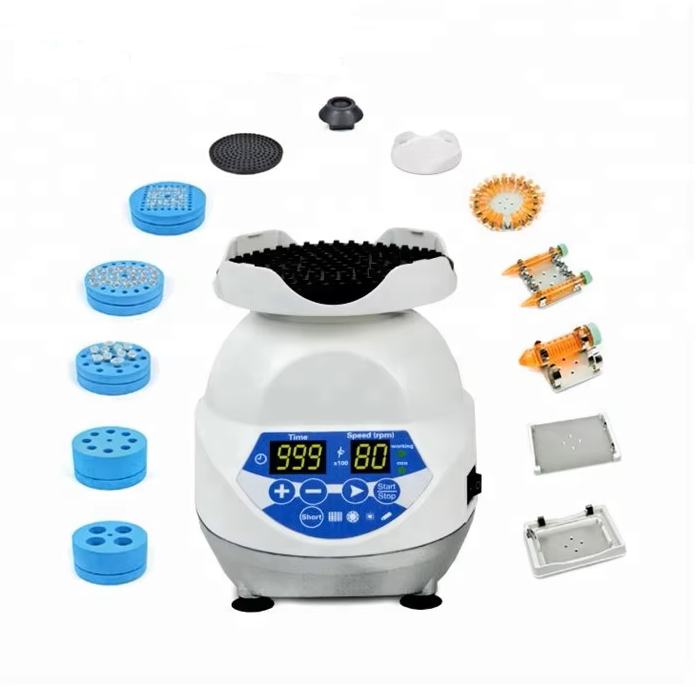

Optional Accessories:

Model No.
Description
VM-A
Standard head. Suit for tubes and containers with dia.<30mm
VM-P
Standard platform to hold foam tube holder
VM-B
Convex pad. Use with VM-P. Suitable for tubes and containers with dia.<99m
VM-C
Foam tube holder. Use with VM-P. For 0.2ml tubes, dia.5mm x 70 holes
VM-D
Foam tube holder. Use with VM-P. For 0.5ml tubes, dia.6.6mm x 36 holes.
VM-E
Foam tube holder. Use with VM-P. For 1.5/ 0.2ml tubes, dia.9.8mm x 20 holes
VM-F
Foam tube holder. Use with VM-P. For 15ml tubes, dia.14mm x 8 holes.
VM-G
Foam tube holder. Use with VM-P. For 50ml tubes, dia.26.2mm x 4 holes.
VM-H
Tube holder platform. For 1.5/2.0ml tubes x 22
VM-I
Tube holder platform. For 15ml tubes x 4
VM-J
Tube holder platform. For 50ml tubes x 2
VM-K
Plate holder platform. For all standard plates
