Fully Automatic Intelligent Slide Stainer SMI-4024I

Home Histopathology >Slide Stainers >Fully Automatic Intelligent Slide Stainer SMI-4024I

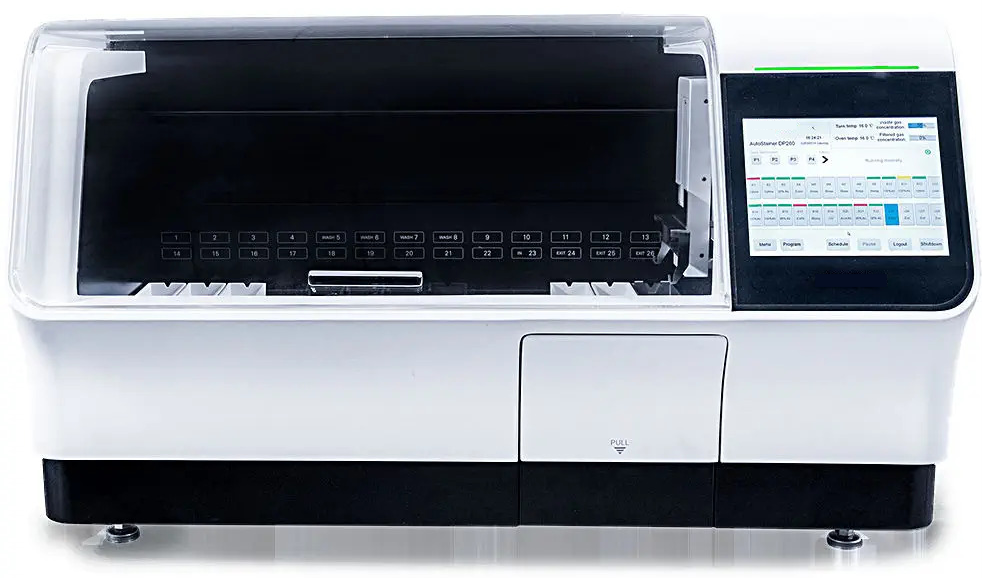

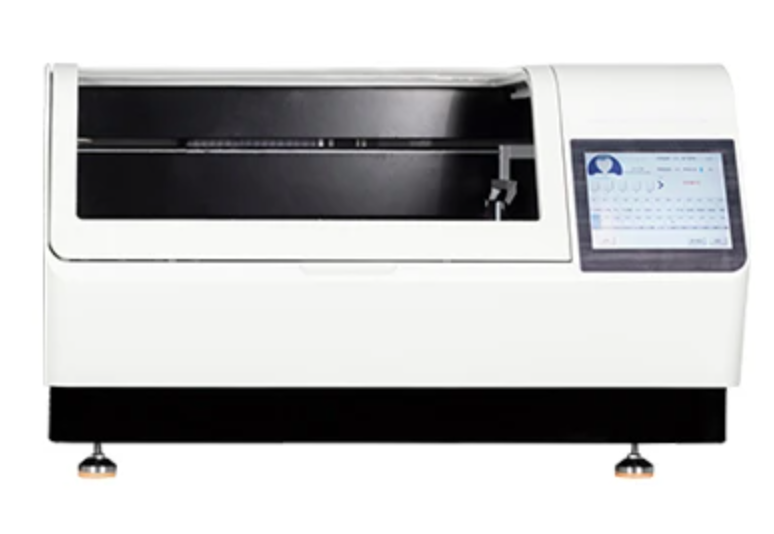

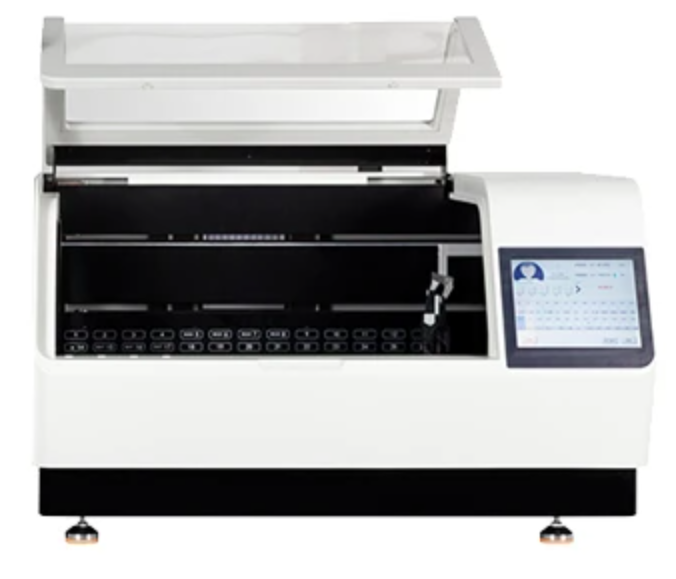

Fully Automatic Intelligent Slide Stainer SMI-4024I

CLICK TO SCAN

Description

Jindal Fully Automatic Intelligent Slide Stainer is an automatic staining machine used for human or animal and plant tissues. This model greatly enhances the histological and pathological histology specimens stained technology and automation level. The International Integrated design, Simple structure, reliable operation, processing precision, not only improves the staining effect but also makes the operation easy.



Staining Module

The staining module mainly consist of staining station, robotic arm system , human -machine interaction systems, appearance system etc.

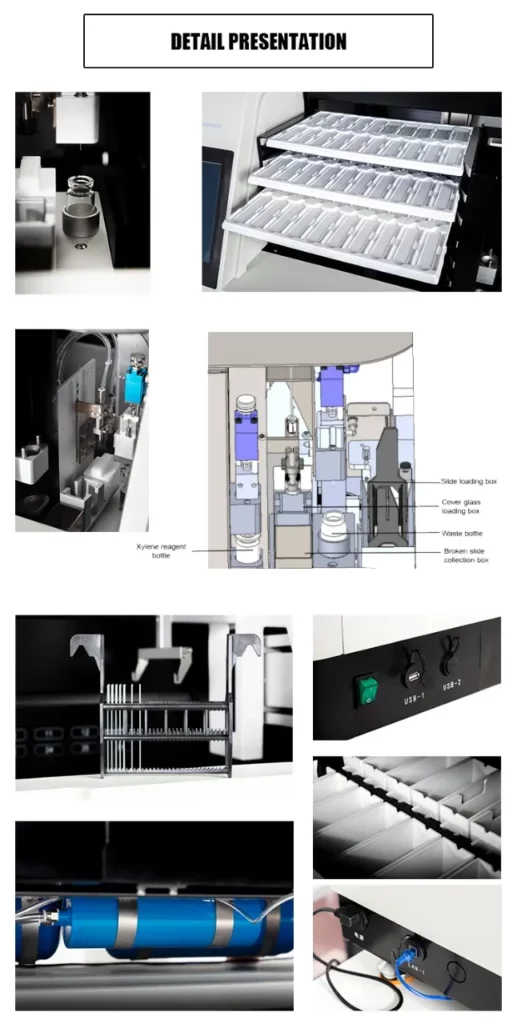

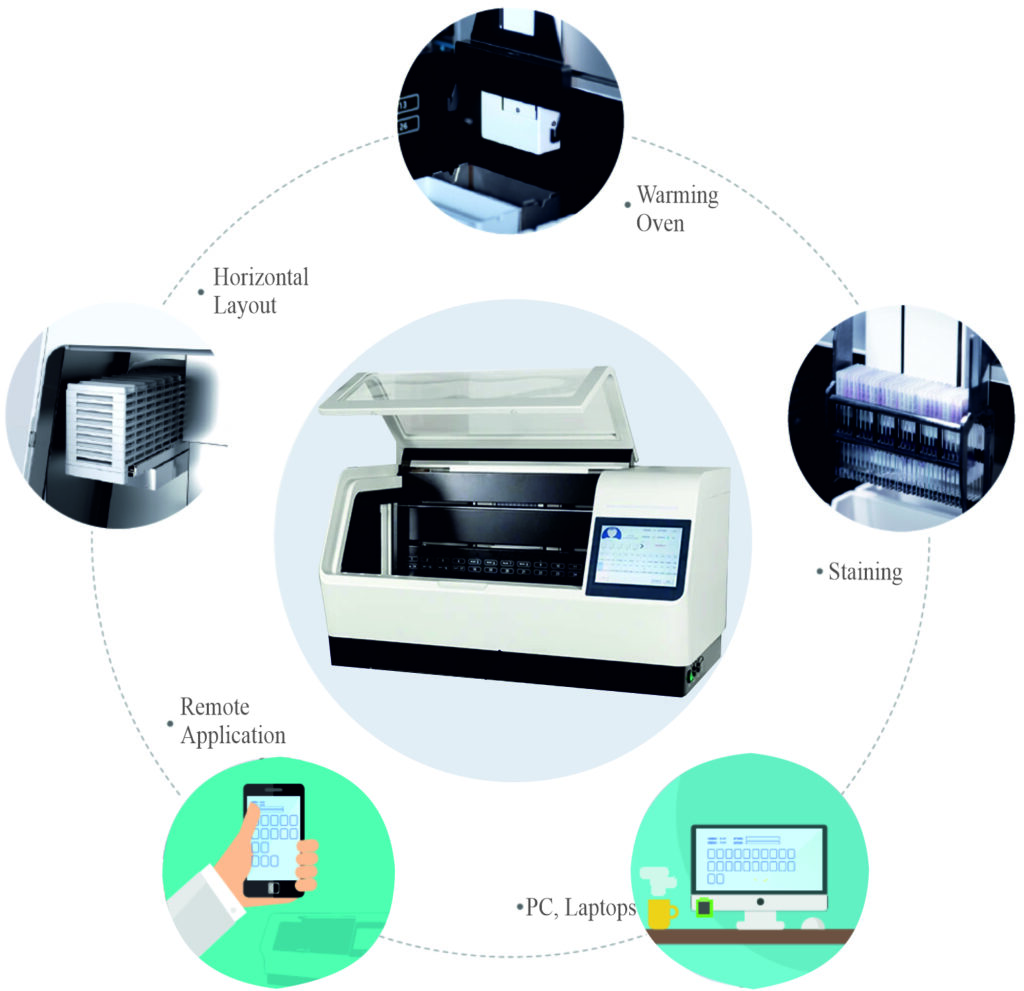

Detailed Images

Technical Data :

Product Name

Fully Automatic Intelligent Slide Stainer

Model No.

SMI-4024l

Dimensions, Unpacked ( W x D x H)

1066 X 700 X 630 mm

Net Weight

approx.130Kg.

Power Consumption

1200VA

Supply Voltage / frequency

100 to 240VAC 50/60Hz

Operating temperature range

+ 150C to 400C

Total stations

26

Oven Station and Temperature Range

1; Max. Temperature 750C

Reagent Heating Station

4; Max. Temperature 380C

Water Washing Station

4

Reservoir Volume

480mL ± 20mL

Programe Storage Capacity

>=100 Programs

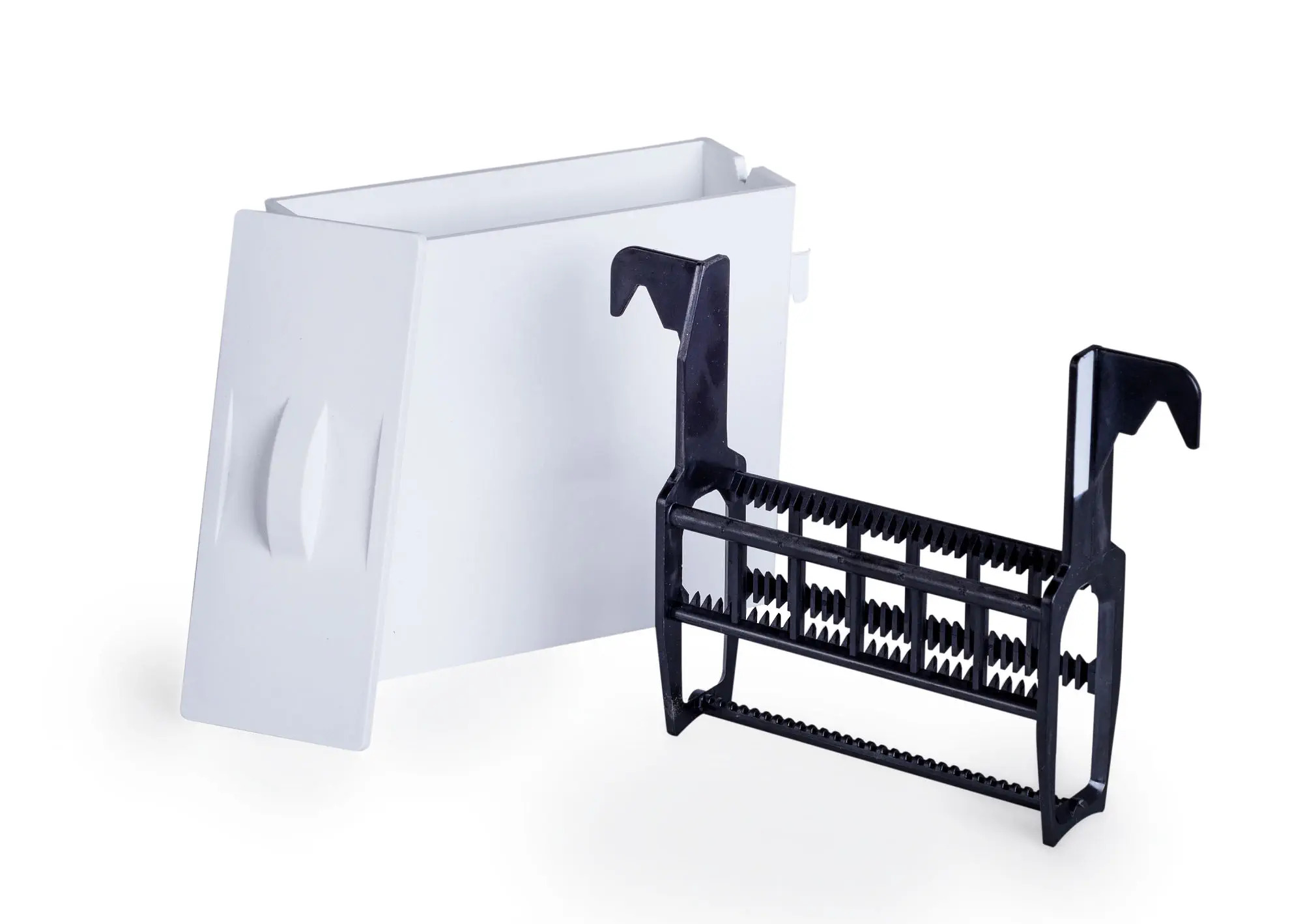

Slide Rack Capacity

30pcs

Throughput H/E

360 Slides per hour

Product Brochure

Product Brochure Link here
