Intelligent Tissue Floating Bath Cum Slide Warmer SMI-146ITS

CLICK TO SCAN

Description

The tissue floatation bath is used for precise control of different samples at constant temperature. It is ideal for tissue culture, enzyme reactions, fermentation, tissue section processing etc.
The latest lab tissue floatation bath consists of a black coated aluminum chamber with the outer body made of galvanized steel sheet duly powder coated. The black coating inside ensures easy viewing of the floating tissues. A micro temperature controller with LED display ensures accurate temperature control.

Features

The baking sheet part is colored with special technology, which has the advantages of wear resistance and no paint peeling
A multi-layer bevel design can process 60 tissue slices at the same time
6 sets of standard staining racks can be placed in the drying section, which can process 180 tissue sections at the same time
This device uses a medical-grade high-definition color touch screen, all information is clear at a glance and easy to operate
Precise temperature control by computer, fast and stable temperature rise
It takes up to 10 minutes to reach 75 degrees 75. The oven dryer and the slide dryer can be set to be heated separately
Timing switch function. Set time can be accurate for minutes
Unique timing reminder function, set any duration, and beep after the time is up
We also provide customers with a glass cover that can increase the heating efficiency

Main Features

Large user-friendly touch screen shows all the information. It is easy to operate and control the functions

Heating system is fast and stable with the over heat protection function

All-in one three functions combination machine: Flotation Water Bath, Dryer and oven all in one machine. Dryer and oven heating function can be switched off if desired

Flotation Water bath: LED light in the bottom of the water bath ensures better operation

Large ergonomic curved drying surface ensures 64 tissue processing at a time

Oven : It can hold 3 standard staining racks at a time

On and Off function with time

The floating water bath is the tempered glass container. It has a double LED headlight and backlight on the bottom, both can be switched on and off as per the user requirement

Electronic & mechanical dual temperature protection system. In case of failure of the electronic control system, the mechanical protector cuts off the heating power to prevent damaging of tissue slices

Timing alarm function: User can set any time as per the requirement. When it reaches the set time, the audio/visual alarm alerts the operator to remove the tissues. This prevents the tissue slices from baking for too long

Detailed Images

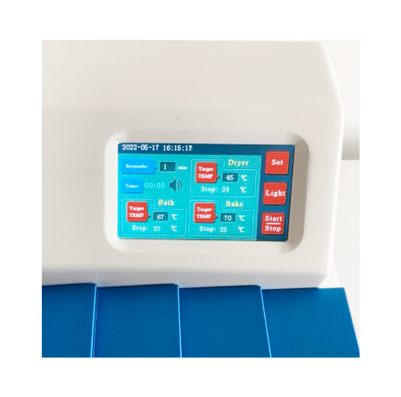

Large user-friendly touch screen

Displays all the information in real time & makes it easy to monitor & control the whole function

Water bath

LED light in the bottom of the water bath ensures better operation

Large dryer working surface

Large ergonomic curved drying surface ensures 64 tissue processing at a time

Slide rack Oven

It can hold 3 standard staining rack rack one time

Technical Data

Intelligent Tissue Floating Bath Cum Slide Warmer SMI-146ITS
Main Parts	Three parts: Floating bath, Dryer, Oven
Floating Bath	0 to 99℃, with a least count of 1℃
Dryer	0 to 99℃,with a least count of 1℃
Oven	0 to 99℃,with a least count of 1℃
Whole Product Size(L x W x H) mm	540 x 360 x 180
Water Bath Size(L x W x H) mm	212 x 168 x 55
Dryer Size (L x W x H) mm	206 x 170 x 55
Oven Size(L x W x H) mm	235 x 95 x 92
Floating Bath	2L
Dryer	64Nos. Tissue Glass Slides
Oven	3Nos. Standard Staining Racks
Voltage Supply	AC100 to 240V±10%,50Hz±1Hz
Power	600VA

Product Brochure

Product Brochure Link here
