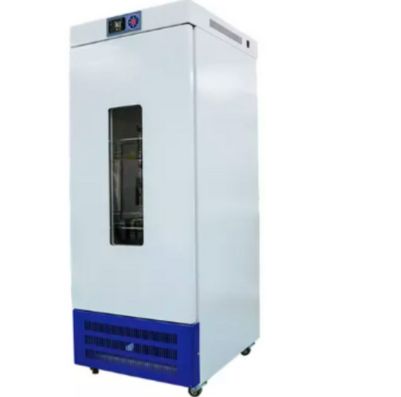

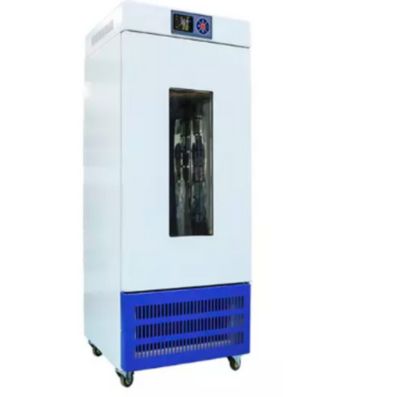

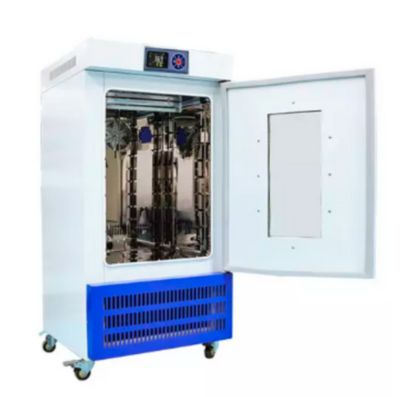

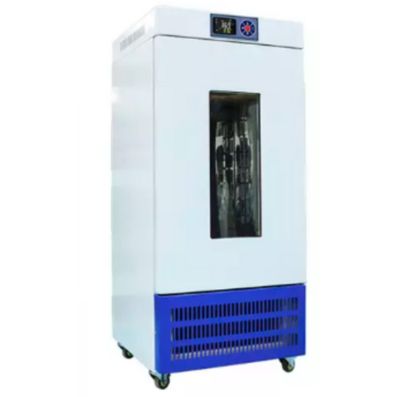

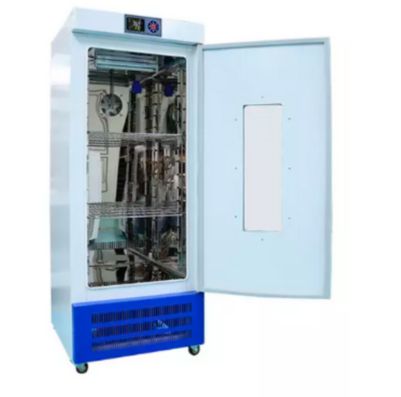

Biochemistry Incubator SMI-OIBI

CLICK TO SCAN

Description

This product is ideal for applications in environmental protection, sanitation, epidemic prevention, drug inspection, agriculture, aquaculture, and various scientific research fields. It is also well-suited for use in universities and production departments. Designed as a specialized constant temperature device, it supports water body analysis, BOD determination, cultivation and preservation of bacteria, molds, and microorganisms, as well as plant cultivation and breeding experiments. Moreover, setting the temperature between 20–37°C enables it to prevent the crystallization of mannitol solutions

Features:

  • The refrigeration system features a new fluorine-free design, promoting environmental protection.

  • Includes a parameter memory function to automatically resume operation after power restoration.

  • The inner chamber has a circular arc design, making it easy to clean.

  • Equipped with Castors wheels , movable shelves with adjustable spacing for flexible storage.

  • Temperature is controlled using advanced microcomputer technology, ensuring precision and reliability. The liquid crystal display shows the current operating status in real time.

  • Operated via a light-touch adjustment switch, offering smooth and flexible operation. An over-temperature alarm device is also included for added safety.

  • A built-in fan creates forced convection, ensuring uniform temperature distribution within the working chamber.

  • The outer body is made of high-quality steel plate with a sprayed surface, while the inner chamber is crafted from high-grade stainless steel for durability and corrosion resistance.

  • An internal lighting system is included for convenient observation.

  • The chamber door features magnetic sealing and a hollow glass observation window, providing excellent sealing and easy closure. The window allows direct observation of the culture inside the chamber.

  • Equipped with a power socket to support BOD testing equipment, oscillators, and other small instruments used within the incubator.



Technical Data:



Model

SMI-OIBI-80

SMI-OIBI-100

SMI-OIBI-150

SMI-OIBI-200

SMI-OIBI-250

SMI-OIBI-300

SMI-OIBI-400

Capacity(L)

80

100

150

200

250

300

400

Temperature Control Range

0 to 65℃

Temperature Fluctuation

±1℃

Temperature Nonuniformity Value

±2℃

Timing Range

0 to 9999min/h

Rated Power(W)

1000

1200

1400

Refrigerant

R134a

R404a

Power Supply

Standard: 220V, 50Hz; Optional: 110V, 50Hz

Shelves

2pcs/adjustable

Working Time

Continuous

Outer Size (mm)

540 X 580 X 1100

540 X 580 X 1220

590 X 630 X 1380

590 X 660 X 1530

620 X 700 X 1600

660 X 700 X 1700

720 X 760 X 1800

Chamber Size (mm)

400 X 370 X 560

400 X 370 X 680

450 X 420 X 850

450 X 450 X 1000

480 X 490 X 1070

520 X 500 X 1170

580 X 540 X 1270

Packing Size (mm)

680 X 730 X 1290

680 X 730 X 1410

730 X 770 X 1570

730 X 800 X 1720

760 X 850 X 1790

800 X 850 X 1890

860 X 900 X 1990

Gross Weight (kg)

80

85

120

138

147

157

170

Standard Accessories

Socket, Light

Optional Accessories

USB, Print

Remarks

* The performance parameter test is under no-load conditions, the ambient temperature is 20℃; the ambient humidity is 50%RH

* Cannot be used for long-term refrigeration storage

Optional Additional Function

  • Micro Printer: Allows paper recording of temperature data.
  • USB Data Output Port: Enables electronic recording of temperature data.

Product Brochure

Product Brochure Link here
