S.M. Scientific Instruments (P) LTD

Constant Temp. & Humidity Incubator SMI-CTHI

Home Incubators > Constant Temp. & Humidity Incubator SMI-CTHI

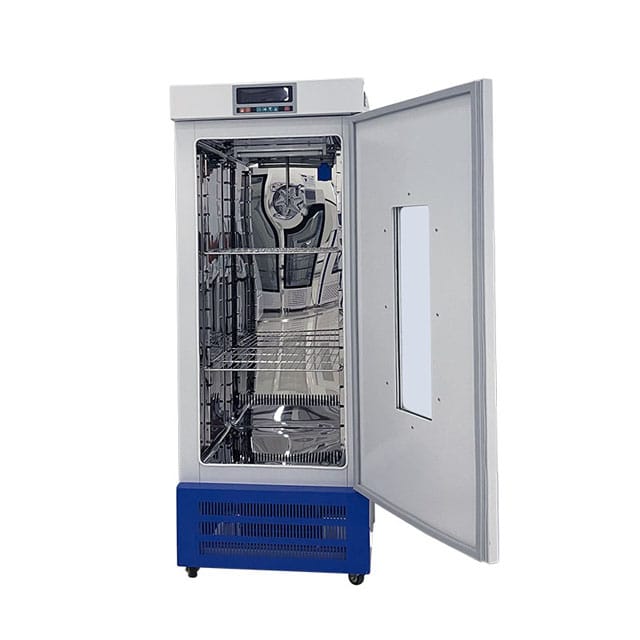

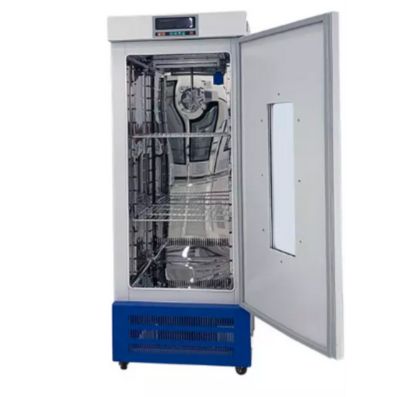

Constant Temp. & Humidity Incubator SMI-CTHI

CLICK TO SCAN

Description

Jindal constant temperature and humidity box features a precise temperature and humidity control system, providing various environmental simulation conditions essential for industrial research and biotechnology testing. It is widely applicable for sterile testing, stability inspections of pharmaceuticals, textiles, and food processing, as well as for evaluating raw material properties, product packaging, and the lifespan of industrial products.

Features:

  • Eco-Friendly Design: Uses CFC-free refrigerants for sustainable and environmentally friendly operation.
  • Power-Off Memory Function: Retains settings and parameters during power interruptions for seamless operation.
  • Easy Maintenance: Arc-angle chamber design ensures effortless cleaning.
  • Adjustable Shelving: Movable and pullable shelves with customizable spacing to fit diverse storage needs.
  • Mobility Made Simple: Equipped with casters for easy transport and repositioning.
  • Optimal Temperature Control: Micro air circulation fan ensures uniform temperature distribution throughout the chamber.
  • Durable Construction:
    • Exterior: Made of cold-rolled, sprayed steel for strength and durability.
    • Interior: SUS304 stainless steel for enhanced corrosion resistance and hygiene.
  • Energy-Efficient Lighting: Fitted with a long-lasting LED lamp for clear visibility inside the chamber.

Technical Data :

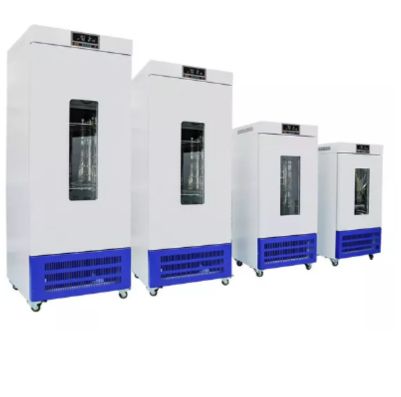

Model

SMI-CTHI-HT80

SMI-CTHI-HT100

SMI-CTHI-HT150

SMI-CTHI-HT200

SMI-CTHI-HT250

SMI-CTHI-HT300

SMI-CTHI-HT400

Capacity(L)

80

100

150

200

250

300

400

Control Type

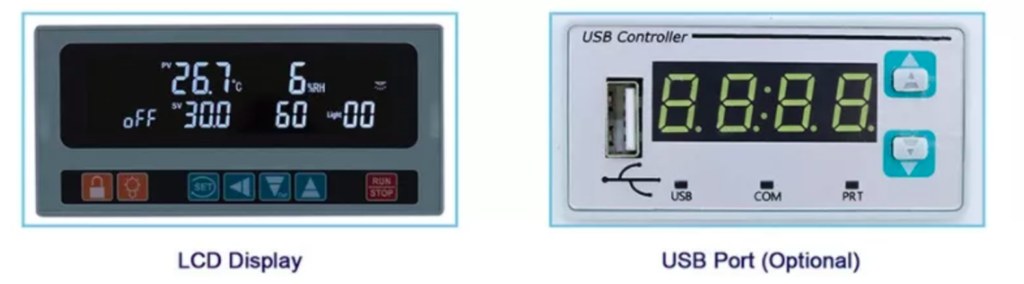

LCD display, Microcomputer PID controller

Temp. Range

0℃ to 65℃

Temp. Fluctuation

±1℃

Temp. Uniformity

±2℃

Humidity Range

50% to 90%RH

Humidity Fluctuation

±5% to 8%RH

Display Accuracy

0.1℃/1%RH

Humidification Method

Built-in humidification system

Time Setting

0 to 9999min(h)

Refrigerant

R134a

R134a

R404a

Consumption

1200W

1200W

1200W

1300W

1300W

1500W

1500W

Power Supply

AC220V±10%, 50/60Hz(Standard); AC110±10%, 60Hz(Optional)

Socket Type

Typ1609

Accessory

Standard: Socket/Lamp; Optional: USB/Printer

External Size(W X D X H) mm

540 X 580 X 1110

540 X 580 X 1230

590 X 630 X 1390

590 X 660 X 1540

620 X 700 X 1610

660 X 700 X 1710

720 X 760 X 1810

Internal Size(W X D X H) mm

400 X 370 X 560

400 X 370 X 680

450 X 420 X 850

450 X 450 X 1000

480 X 490 X 1070

520 X 500 X 1170

580 X 540 X 1270

Packing Size(W X D X H) mm

680 X 730 X 1290

680 X 730 X 1410

730 X 770 X 1570

730 X 800 X 1720

760 X 850 X 1790

800 X 850 X 1890

860 X 900 X 1990

Net Weight(kg)

70

75

95

100

110

120

140

Gross Weight(kg)

85

90

125

140

150

160

175



Optional Accessories:

  • Micro Printer: Prints detailed temperature data for accurate record-keeping.
  • USB Interface: Enables easy export of temperature data for analysis.
  • Automatic Water Supply System: Simplifies maintenance with a continuous water supply.

Product Brochure

Product Brochure Link here
