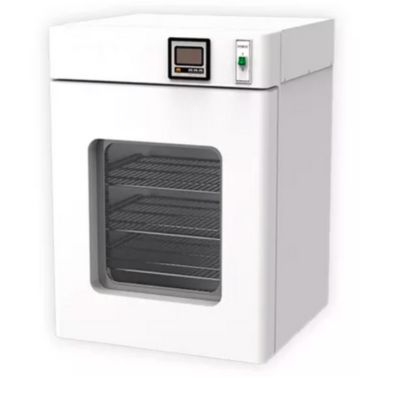

The Jindal Constant-Temperature Incubator is a precise and reliable laboratory instrument designed to maintain a stable environment for various biological, microbiological, and chemical processes.
Microcomputer-controlled smart temperature regulation system.
LCD display for both setting and monitoring chamber temperature, featuring parameter memory and recovery functions to safeguard against power outages, system failures, and data loss. Includes protection and alarm systems for excessive temperature, sensor malfunctions, creepage, and over-current, with both audible and visual alerts, as well as a timing function.
Independent temperature limit and alarm system, with automatic suspension when the temperature exceeds the set limit (optional).
Optional UV sterilization system.
RS-485 interface, allowing connection to a printer or computer to record temperature variations (optional).
Optional double door design.
Model No.: | SMI-CTI-H50IV | SMI-CTI-H80IV | SMI-CTI-H160IV | SMi-CTI-H270IV |
Capacity | 50L | 80L | 160L | 270L |
Temp. Range | RT+5 to 65℃ | |||
Temp. Resolution | 0.1 | |||
Temp. Fluctuation | ±0.5℃ | |||
Temp. Uniformity | ±1℃(37℃) | |||
Time Range | 1 to 9999mins | |||
Shelves (Standard) | 2pcs | |||
Consumption | 250W | 300W | 400W | 600W |
Power Supply | AC220V±10%, 50/60Hz(Standard) | |||
AC110±10%, 60Hz(Optional) | ||||
lnternal Size (mm) | 350 X 360 X 410 | 400 X 400 X 500 | 500 X 500 X 650 | 600 X 600 X 750 |
External Size (mm) | 450 X 520 X 680 | 500 X 560 X 760 | 600 X 620 X 910 | 720 X 690 X 1020 |
Packing Size (mm) | 550 X 620 X 780 | 600 X 660 X 860 | 700 X 720 X 1010 | 820 X 790 X 1120 |
Gross Weight (kg) | 40 | 47 | 70 | 90 |
Product Brochure Link here
