Dry Bath Incubator SMI-KT-200-4

CLICK TO SCAN

Description

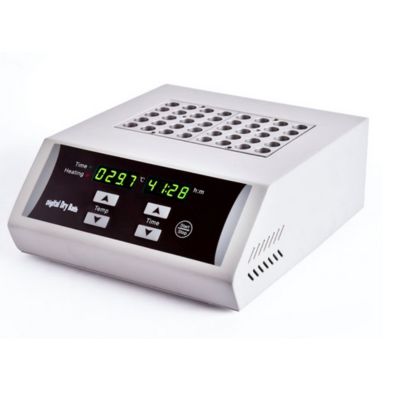

JINDAL Dry bath incubator SMI-KT200-4 is a microprocessor-controlled device, with high precision of temperature control, sample preparation parallelism, an alternative to the traditional water bath device. It can be widely used in various samples of cultivation, preservation and reaction. Applications of industry include pharmaceuticals, chemicals, food safety, environmental, quality inspection, etc.

Latest Ergonomic Features:

  • Fast heating speed, uniform heating, accurate temperature control, high stability, low energy consumption, and no noise
  • Built-in temperature deviation calibration function, automatic fault detection, and buzzer alarm
  • Equipped with an over-temperature protection device for safety and reliability, enhancing the machine’s service life
  • Compact and space-saving design, making it convenient and easy to use
  • Continuous operation is optional, with various interchangeable blocks for easy replacement, cleaning, and disinfection
  • The SMI-KT200-4 supports independent heating and incubating, featuring a unique two-in-one design to meet diverse laboratory requirements
Previous
Next
Enquire Now

Technical Data:

  • Temp. Control Range : R.T.+5℃ to 120℃
  • Temp. Setting Range : 5℃  to 120℃
  • Temp. Stability@40℃ to 100℃ : ±0.5℃
  • Temp. Stability@>100℃ :  ±1℃
  • Block Temp. Uniformity@40℃ : ±0.3℃
  • Block Temp. Uniformity@>100℃ : ±0.5℃
  • Temp. Display Accuracy : 0.1℃
  • Heating Speed : ≤30min (20˚C to 120˚C)
  • Time Range : 1min to 99 h 59min
  • Sample Capacity : 4 standard blocks
  • Voltage : AC220V / AC 110V, 50/60Hz
  • Power : 600W
  • Fuse : 250V, 2A/3A, Փ5×20
  • Dimension (W X D X H) : 220 x 360 x 95mm
  • Net Weight : 4.7kg

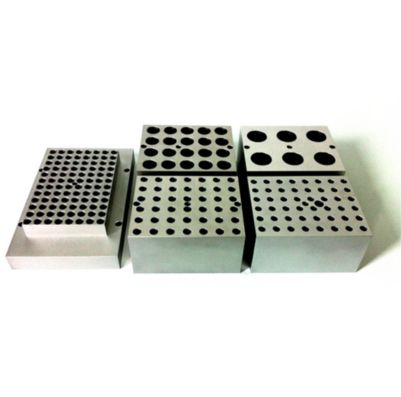

Optional Blocks:

SMI-KT-200-4

Model #

Spec

Dia. Of Hole

Hole Bottom shape

Block Dimension

  DT01

  6 mm x 42

  6.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT02

  7 mm x 42

  7.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT03

  10 mm x 20

  10.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT04

  12 mm x 20

  12.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT05

  13 mm x 20

  13.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT06

  15 mm x 12

  15.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT07

  16 mm x 12

  16.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT08

  19 mm x 12

  19.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT09

  20 mm x 6

  20.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT10

  26 mm x 6

  26.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT11

  28 mm x 4

  28.5 mm

  Flat bottom

  95.5 x 76.5 x 50 mm

  DT12

  40 mm x 2

  40.5 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT13

  0.5 ml x 42

  8 mm

  Cone bottom

  95.5 x 76.5 x 50 mm

  DT14

  1.5 ml x 24

  10.8 mm

  Cone bottom

  95.5 x 76.5 x 50 mm

  DT15

  2.0 ml x 24

  10.8 mm

  Round bottom

  95.5 x 76.5 x 50 mm

  DT16

  0.2 ml x 48

  6.1 mm

  Cone bottom

  95.5 x 76.5 x 50 mm

  DT17

  0.2 ml x 96

  6.7 mm

  Cone bottom

  95.5 x 153.5 x 33.5 mm

  DT18

  Flat bottom plates

  Top size 76 x 116 x 4mm

  Flat plate block

  95.5 x 135 x 22.5 mm

  DT19

  Customized

  Customized

  Customized

  Customized
