Dual Temperature Control Dry Bath Incubator SMI-BTC-100D

Home ≫ Incubators> Dual temperature control dry bath incubator> Dual Temperature Control Dry Bath Incubator SMI-BTC-100D

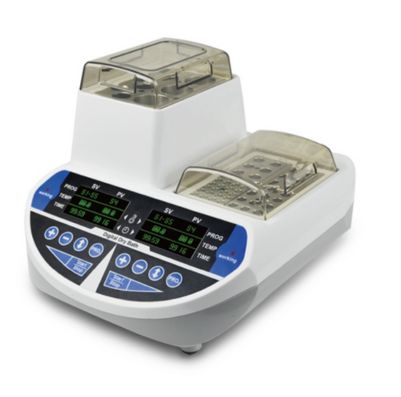

Dual Temperature Control Dry Bath Incubator SMI-BTC-100D

CLICK TO SCAN

Description

The JINDAL Dual Temperature Control Dry Bath Incubator (SMI-BTC-100D has high precision temperature control and good sample preparation parallelism with a microprocessor-controlled thermostat to replace traditional water bath devices. It can be widely used in the cultivation and preservation of samples, DNA amplification, the electrophoresis of denaturation, and serum coagulation. Application sectors throughout pharmaceutical, chemical, food safety, environment, quality inspection, etc. The BTC series is proud of its compact appearance and excellent performance.

Latest Ergonomic Features:

  • A unique dual-temperature control slot can individually control temperature to ensure no interference. One piece of equipment to meet the demand for more experiments
  • OLED display, simple interface, double time and temperature setting, means simultaneous temperature and diminishing time display
  • Fast heating speed, uniform heating, accurate temperature control, high stability, low energy consumption, and no noise
  • Built-in temperature calibration function, automatic fault detection, and buzzer alarm function
  • built-in over-temperature protection device, safe and reliable, enhances the service life of the machine
  • The product was compact and tight, occupying little space. Using freer and easier
  • Various blocks for convenient replacement, easy cleaning, and disinfection
  • A perfect high module sealing cartridge with cover can make a 15- or 50-ml high module totally enclosed in a dry bath.
  • The heated model can use external sensors to control temperature more accurately and directly
Previous
Next
Enquire Now

Technical Data:

  • Temp. Control Range : -10℃ ~100℃
  • Temp. Max. Decrease : R.T. decreases 20℃
  • Temp. Setting Range : -10℃ ~100℃
  • Temp. Stability@100℃ : ≤±0.5℃
  • Temp. Stability@40℃ : ≤±0.3℃
  • Block Temp. Uniformity : ≤±0.3℃
  • Temp. Display Accuracy : 0.1℃
  • Heating Speed : ≤15min (20℃ to 100℃)
  • Cooling Speed : ≤25min (R.T. to 4℃) @R.T. 26℃
  • Time Range : 1min~99h59min or continuous
  • Voltage : AC 90V ~230V, 50/60Hz
  • Power : 200W
  • Fuse : 250V, 2A/4A, Փ5×20
  • Dimension (W*D*H) : 240 x 260 x 168mm
  • Net Weight : 2.6Kg

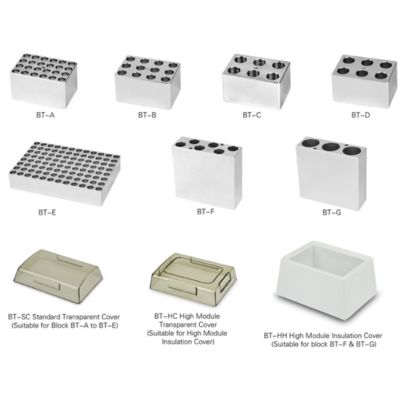

Optional Blocks:

Cat#
Spec
Dia. Of hole
Quantity can be Accommodated
BT-A
0.2ml x 24
6.1 mm
8 pieces
BT-B
0.5ml x 12
8 mm
8 pieces
BT-C
1.5ml x 6
10.8 mm
8 pieces
BT-D
2.0ml x 6
10.8 mm
8 pieces
BT-E
0.2ml x 96
6.1 mm
2 standard PCR plates
BT-F
15ml x 6
16.9 mm
4 pieces
BT-G
50ml x 3
19.2 mm
4 pieces
BT-H
1.5ml x 6
customized
customized
BT-I
customized
customized
customized

Product Brochure

Product Brochure Link here
