Mould Incubator SMI-OIMI

Home ≫ Incubator > Mould Incubator SMI-OIMI

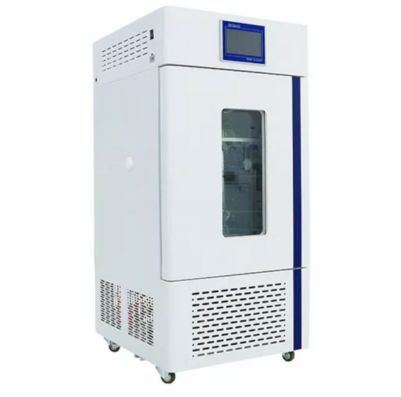

Mould Incubator SMI-OIMI

CLICK TO SCAN

Description

This series of products are widely used in medical and health, epidemic prevention and inspection, biopharmaceuticals, animal husbandry research, environmental protection, agricultural scientific research and other fields.

Features：

  • The 7 inch LCD touch screen can monitor the temperature and humidity curves in real time, which is convenient for observation and operation.
  •  Accurate control: equipped with a microcomputer temperature control system and an independent PID humidity control system.
  •  Three-level operation interface authority (administrator, experimenter, operator), to prevent the operation of irrelevant personnel from causing test interruption or equipment failure.
  •  Equipped with an interconnected PC interface for remote operation monitoring and optional mobile APP control program.
  •  The upper and lower slices of the evaporator are automatically switched to defrost, without stopping the defrost.
  •  Ultraviolet lamp sterilization effectively prevents pollution during culture.
Previous
Next
Enquire Now

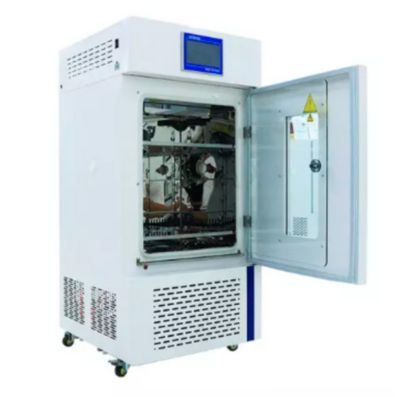

Detailed Images

Technical Data:

Model No.:

SMI-OIMI-M100P

SMI-OIMI-M150P

SMI-OIMI-M200P

SMI-OIMI-M250P

Capacity

100

150

200

250

Convection

Forced convection

Humidity Fluctuation

±3 to ±5%RH

Humidity Range

50 to 95％RH(Microcomputer PID control)

Temp. Control Range

0 to 60℃(Microcomputer PID control)

Temp. Resolution

0.1℃

Temp. Fluctuation

±0.5℃

Temp. Uniformity(at 37℃)

±1℃

Humidification Method

Built-in humidification system(Standard)

Timing Range

1 to 5999min

Sterilization Method

UV sterilization lamp(Timetable setting)

Refrigerant

R134a(CFC-free environmentally friendly refrigerant)

Power

AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional)

Input Power(W)

700 to 1500

Accessories

Standard: USB interface, Remote PC port

Optional: External ultrasonic humidifier

Shelves(Standard)

2

2

2

2

Internal Size (W X D X H)

448 X 405 X 580mm

518 X 418 X 700mm

598 X 445 X 770mm

598 X 447 X 940mm

External Size (W X D X H)

635 X 667 X 1335mm

705 X 677 X 1485mm

785 X 767 X 1525mm

762 X 767 X 1637mm

Package Size (W X D X H)

775 X 805 X 1515mm

845 X 815 X 1660mm

925 X 905 X 1705mm

890 X 905 X 1815mm

Net Weight

100kg

120kg

140kg

150kg

Gross Weight

125kg

140kg

165kg

180kg

*Note : It cannot be used for long-term refrigeration and storage; This product is not recommended for the cultivation of samples of human origin.
