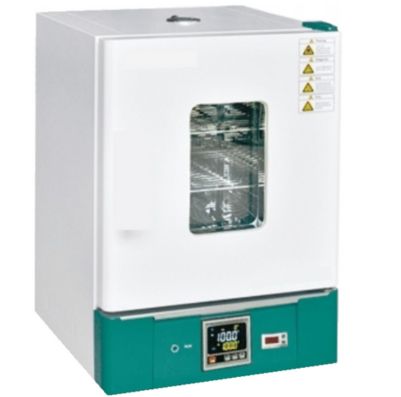

Oven Cum Incubator (Dual Function)

CLICK TO SCAN

Characteristics:

Horizontal air circularly by double air ducts, high Efficiency and high uniformity
PID controller, with over-temperature protection function
With oven/Incubator change switch, fan switch; and high Temperature blast motor, LED digital display
New anti-hot handle
Drying, baking, wax, heat treatment and bacterial culture in one chamber

GB-BE series have the following advanced features extra than the above functions :

LCD temperature controller. SSR to ensure safety.
4 grades speed fan, adjustable for different requirements.
Over-temperature protection system.
Independent temperature limiter.

Technical Data :

Model

SMI-GP-30B

SMI-GP-45B

SMI-GP-65B

SMI-GP-85B

SMI-GP-125B

SMI-GP-230B

SMI-GP-30BE

SMI-GP-45BE

SMI-GP-65BE

SMI-GP-85BE

SMI-GP-125BE

SMI-GP-230BE

Cycle Mode

Forced convection

Function

Temp. Range

Incubator:RT+5-80ºC Drying oven:80-300ºC

Temp. Resolution Ratio

0.1ºC

Temp. Motion

±1ºC

Temp. Uniformity

Incubator: ±1.0ºC Drying oven:±2.5%

Structure

Inner Chamber

Mirror Stainless Steel

Outer Shell

Cold rolling steel electrostatic spraying exterior

Insulation layer

Compound silicate heat preservation board

Heater

Stainless steel heater

Power rating

0.8kW

1.2kW

1.6kW

2.0kW

2.3kW

3.0kW

Exhaust hole

Փ 28mm top(with function of test hole)

Controller

Temp. control mode

PID Two temperature section intelligent PID

Temp. setting mode

Touch button setting

Temp. display mode

B type: LED Digital Display

BE model: LCD Digital Display

Timer

0-9999min (with timing wait function)

Operation function

Fixed temperature operation, timing function, auto stop.

Additional function

B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

BE model: Mechanical independent temperature limiter, 4 grades 3 speed adjustable-speed fan (GP230BE without fane speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

Sensor

Pt100

Specification

Inner Chamber size (W X L X H) (mm)

310 X 310 X 310

350 X 350 X 350

400 X 360 X 450

450 X 420 X 450

500 X 450 X 550

600 X 500 X 750

Exterior size (W X L X H) (mm)

460 X 510 X 695

500 X 550 X 735

550 X 550 X 840

590 X 610 X 830

636 X 680 X 915

730 X 680 X 1250

Packing size (W X L X H) (mm)

550 X 585 X 845

590 X 625 X 885

640 X 635 X 985

690 X 695 X 985

740 X 725 X 1085

860 X 790 X 1400

Volume

30L

45L

65L

85L

125L

230L

Shelf number

6

7

9

13

17

Load per rack

15kg

Shelf space

35mm

Current rating

AC220V/3.6A

AC220V/5.5A

AC220V/7.2A

AC220V/9.0A

AC220V/10.5A

AC220V/13.6A

NW/GW (kg)

33/37

37/43

44/49

50/56

60/66

94/120

Accessory

Shelf

2

Shelf frame

4

Optional Accessories

B model: Shelf; BE model: Shelf, RS485 interface, printer, program temperature control device, remote control, wireless SMS alarm, USB data storage

Additional Function

BE model: Mechanical independent temperature limiter, 4 grades 3 speed adjustable-speed fan (GP230BE without fane speed adjustor), sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory

Optional Accessories

B model: Shelf; BE model: Shelf, RS485 interface, printer, program temperature control device, remote control, wireless SMS alarm, USB data storage

Product Brochure

Product Brochure Link here
