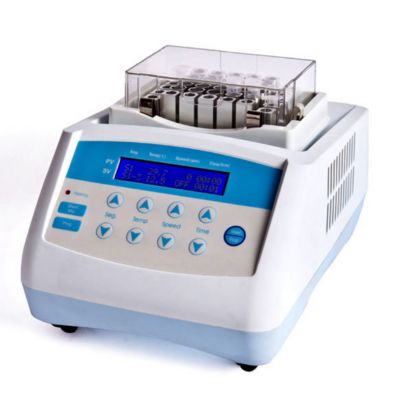

Thermo Shaker Incubator SMI-MTC-100

CLICK TO SCAN

Description

The JINDAL Thermo Shaker Incubator (Cooling) SMI-MTC-100 is a thermo shaker incubator with fast mixing speed and integrates four functions: mixing, shaking, heating, and cooling. Combined with intelligent operation design, it not only can mix various microvolume tubes, PCR plates, deep hole plates, microplates, and other common laboratory supplies, but it also has the function of vortexing and heating (cooling) all kinds of tubes. It can meet the needs of different users.

Latest Ergonomic Features:

  • Perfect radius and excellent 2 dimensional technology blend with adjustable mixing speed
  • Programmable. Efficient shaking and temperature control
  • Power recovery function. After power restored instrument can be set to automatically restore the original run
  • Microprocessor controlled incubator. Good linearity of temperature control. Precise control of the shaking speed
  • Timing function. Time range is from 0 to 100 hours
  • Various blocks to exchange, convenient for replacement
  • Built-in temperature calibration function and short mixing function
  • DC brushless motor drive, long life and free of maintenance
  • Multiple safety protection function. Conform to CE safety standards, safe and reliable
Previous
Next
Enquire Now

Technical Data:

  • Speed Range : 300 rpm to 1500 rpm
  • Shaking Orbit : 3mm (horizontal)
  • Temp. Control Range : 0℃ to 100℃
  • Temp. Max. Decrease : R.T. decreases 20℃
  • Temp. Setting Range : 0℃ to 100℃
  • Temp. Stability : ±0.5℃
  • Block Temp. Uniformity : ±0.5℃
  • Temp. Display Accuracy : 0.1℃
  • Heating Speed : ≤15min (20℃ to 100℃)
  • Cooling Time : ≤30min (R.T. decrease 20℃) @R.T.26℃
  • Time Range : 1min to 99h59min or continuous
  • Voltage : AC 90V to 230V, 50/60Hz
  • Power : 200W
  • Fuse : 250V, 3A, Ф5×20
  • Dimension (W X D X H) : 196 X 270 X 170mm
  • Net Weight : 8.8Kg

3 in 1 Shaking and Incubating Method

Plate (Shaking and Mixing )

  • 96 holes PCR plates (skirted, semi-skirted, un-skirted)
  • 384 holes PCR plates , 96 holes and 384 hole high plates, MTP, enzyme labeled plates

Tube Stands (shaking and mixing) 0.2ml PCR tube and stripe stand

  • PCR tubes and strips stand , 0.5 ml micro tubes stand , 1.5 ml/ 2.0 ml micro tubes stand

Blocks (Shaking , Mixing, Incubator)

  • Refer to exchangeable blocks for SMI-MTC-100 / SMI-MTH-100 series

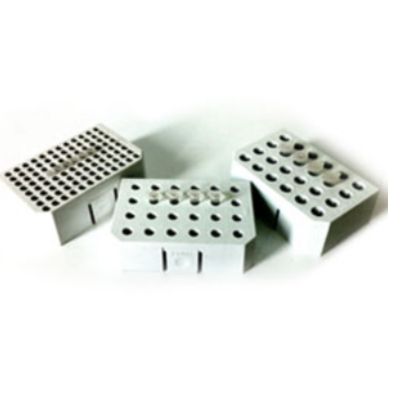

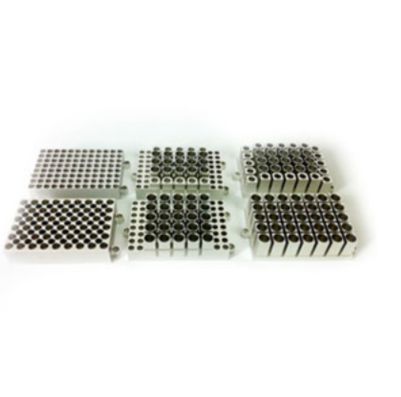

Optional Blocks:

SMI-MTC-100

Model #

  Spec

  Dia. of hole

  Hole bottom shape

  Block dimension

  A

  0.2 ml x 96

  6.7 mm

  Cone bottom

  107 x 71 x 20 mm

  B

  0.5 ml x 54

  8 mm

  Cone bottom

  107 x 71 x 25 mm

  C

  1.5 ml x 35

  10.8 mm

  Cone bottom

  107 x 71 x 32 mm

  D

  2.0 ml x 35

  10.8 mm

  Round bottom

  107 x 71 x 32 mm

  E

  0.5 ml x 20 + 1.5ml x 15

  8 mm / 10.8mm

  Cone bottom

  107 x 71 x 32 mm

  F

  ≤Φ12mm x 24

  12 mm

  Flat bottom

  107 x 71 x 32 mm

  G

  0.2 ml x 32 + 1.5ml x 25

  6.1 mm / 10.8mm

  Cone bottom

  107 x 71 x 32 mm

  H

  0.2 ml x 32 + 0.5 ml x 10 + 1.5ml x 15

  6.1 mm / 8 mm / 10.8 mm

  Cone bottom

  107 x 71 x 32 mm

  I

  Water Bath

  103 x 67 x 30 mm

  Flat bottom

  107 x 71 x 32 mm

  J

  Flat bottom plates

  Top size 69 x 107 x 12 mm

  Flat plate block

  116 x 71 x 15 mm

  K

  5 ml x 24

  13.5 mm

  Flat bottom

  107 x 71 x 32 mm

  L

  15 ml x 12

  16.9 mm

  Flat bottom

  107 x 71 x 100 mm

  M

  50 ml x 6

  29.5 mm

  Flat bottom

  107 x 71 x 100 mm

  N

  Customized

  Customized

  Customized

  Customized

Sr. No.

Spec

Block Dimension

MIX-A

0.2ml X 96

122 X 80.5 X 35 mm

MIX-B

0.5ml X 24

122 X 80.5 X 41 mm

MIX-C

1.5ml/2.0ml X 24

122 X 80.5 X 41 mm

NOTE : K/L/M are not standard blocks, Max Speed is 600rpm . MIX-A / MIX-B / MIX-C are tubes stands.
