Product
|

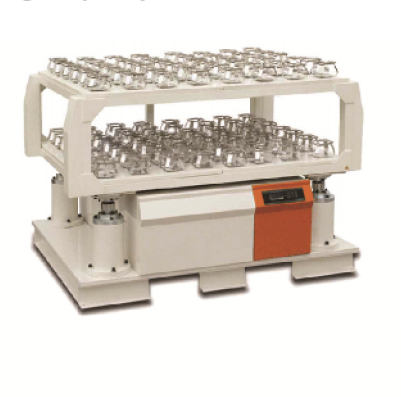

Large Capacity Shaker
|
|||
|---|---|---|---|---|
|
Model
|
SMI-189LC01
|
SMI-189LC02
|
SMI-189LC03
|
SMI-189LC04
|
|
Control
|
P.I.D.(Environmental Scanning Microprocessor)
|
|||
|
Display
|
LCD(simultaneous display of working & set parameters)
|
|||
|
Circulation Mode
|
Natural Convection
|
|||
|
Shaking Mode
|
Rotary Shaking
|
|||
|
Drive Mode
|
Unishaft Drive
|
Multi-dimensional driving
|
||
|
Rotating Speed
|
50~300 rpm
|
50~250 rpm
|
||
|
Rotating Accuracy
|
±1rpm
|
|||
|
Vibration Range
|
Φ50mm
|
|||
|
Timing Range
|
0~500 hours
|
|||
|
Shaking Plate Size
|
840*620mm
|
1108*740mm
|
1080*680 mm
|
1080*680 mm
|
|
Shaking Plate Quantity
|
2 pcs
|
4 pcs
|
6 pcs
|
|
|
Standard Capacity
|
250mL*54 500mL*35
|
250mL*86 500mL*60
|
250mL*150 500mL*108
|
250mL*225 500mL*162
|
|
Max. Capacity
|
250mL*108 or 500mL*70 or 1000mL*48
|
250mL*192 or 500mL*120 or 1000mL*80
|
250mL*300 or 500mL*216 or 1000mL*112
|
250mL*450 or 500mL*324 or 1000mL*168
|
|
External Material
|
Cold-rolled steel with antibacterial powder coating
|
|||
|
Power Supply
|
AC110V/220V±10%, 50/60Hz
|
|||
|
Consumption
|
280W
|
750W
|
1100W
|
|
|
External Size (W*D*H)(mm)
|
910mm W x 680mm D x 820mm H
|
1270mm W 810mm D x 425mm H
|
1590mm W x 1120mm D x 950mm H
|
1470mm W x 1110mm D x 1320mm H
|
|
Package Size (W*D*H)(mm)
|
1010mm w x 780mm D x 970mm H
|
1370mm W x 910mm D x 575mm H
|
1690mm W x 1220mm D x 1000mm H
|
1570mm W x 1210mm D x 1470mm H
|
|
Gross Weight(Kg)
|
358Kg
|
557Kg
|
830Kg
|
950Kg
|
Product Brochure Link here
