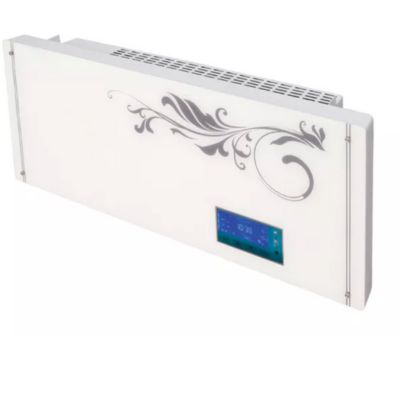

Air Sterilizer (Wall Mounted) SMI-ASWM

Home ≫Sterilization >Air Sterilizers >Air Sterilizer (Wall Mounted) SMI-ASWM

Air Sterilizer (Wall Mounted) SMI-ASWM

CLICK TO SCAN

Description

The Jindal Air Sterilizer is suitable for use in medical institutions, laboratories, production workshops with hygienic requirements, public places requiring disinfection, family rooms, etc. It is suitable for dynamic indoor air disinfection in class II, III, and IV environments of hospitals, families, schools, libraries, and blood stations, as well as food and beverage factories, pharmaceutical factories, catering facilities, and other public places.

Enquire Now

Features:

  • Large LCD display
  • Timing function for cumulative use of the UV lamp
  • Three operation modes: Automatic, Manual, and Timing
  • Built-in high brightness, long-life, ozone-free, U-type UV lamp
  • Automatic fault alarm function for UV lamp tube, motor, negative ion, plasma, and O3
  • Up to four disinfection periods within 24 hours can be set with memory function
  • Real-time detection and display of temperature and humidity within the disinfection space
  • Single-chip microcomputer control ensures stability and reliability
  • Touch panel operation facilitates convenient interaction between man and machine
  • Equipped with a super-infrared receiving device enabling long-distance remote control at any angle of 450
  • A built-in hidden remote control prevents loss
  • Utilizes bottom air inlet and top air outlet structure, with a silent fan circulating air to prevent direct cold air exposure to users
  • High-quality mirror plate enhances UV lamp radiation intensity and sterilization efficiency
  • Automatically detects and displays indoor air quality, activating purification when pollution exceeds the standard

Technical Data:

Model No.

SMI-ASWM-01

SMI-ASWM-02

SMI-ASWM-03

Circulating Air

≥600m3/h

≥800m3/h

≥1000m3/h

Noise

≤55dB

O₃ Residue

≤0.004mg/m3

≤0.005mg/m3

Applicable Room

≤60m3

≤80m3

≤100m3

Ultraviolet Leakage

≤3μw/cm2

≤3μw/cm2

≤2μw/cm2





Working Environment

Temp. Range

5℃ to 40℃

Humidity

≤80%

Atmosphere Pressure

80KPa to 106KPa

Consumption

≤200W

≤260W

≤340W

Power Supply

AC110/220V±10%, 50/60Hz

External Size (W X D X H)mm

1000 X 410 X 180

1000 X 410 X 200

1050 X 450 X 185

Package Size (W X D X H)mm

1085 X 290 X 495

1140 X 290 X 540

Gross Weight (Kg)

28.5

29.5

34.7
