S.M. Scientific Instruments (P) LTD

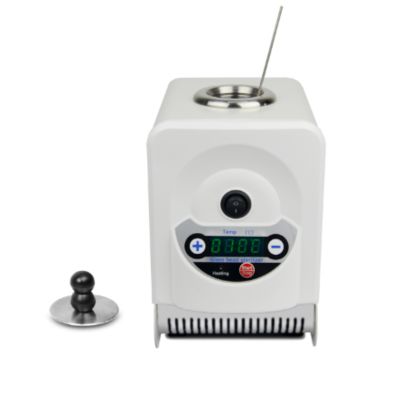

Glass Bead Sterilizer SMI-239

Home Sterilization >Glass Bead Sterilizer SMI-239



Glass Bead Sterilizer SMI-239

CLICK TO SCAN

Description

Jindal Glass bead sterilizer follows a scientific method for total sterilization of your instruments within 5 to 15 seconds. These sterilizers are compact state of the art, steam less non hazardous equipment for your clinic. It is a simple device for quick sterilization of small instruments with effective thermal sterilization. In this the clear glass beads are used in the well. The temperature of the glass beads sterilization is 240°C. The high precision temperature controller with over temperature protection is an added advantage. The instruments are dip in the glass beads for the quick sterilization.
Effective thermal insulation keeps the outer cover cool while keeping an even temperature inside the well. The heat loss is very low thus leading to very low power consumption.

Technical Data

Model No.:

BS-01

BS-02

Temp. Control Range

1000C to 3000C

1000C to 3000C

Temp. Stability

 ≤±50C

 ≤±50C

Heating speed

≤25min

≤25min

Heating Well Volume (diameter depth)

Dia 40 x 80mm

Dia 40 x 150mm

Glass Beds Capacity

300g

600g

Cover Material

Stainless steel

Stainless Steel

Insulation Material

Mineral Wool

Mineral Wool

Voltage

AC 220v / AC 110V, 50/60Hz

AC 220v / AC 110V, 50/60Hz

Power

120W

300W

Fuse

 250V,2A/3A, Dia 5×20

250V,2A/3A, Dia 5×20

Dimension (W X D X H)mm

130 X 150 X 200

130 X 150 X 240

Net Weight

2Kg

2.5Kg

Instructions for Use

  • Now the sterilizer is ready for use
  • Insert as many as possible drying instruments which need to be sterilized to glass beads
  • Turn off the power switch & close the cover after finished to prevent dust entering the chamber
  • Don’t touch the glass beads or the sterilization chamber before it reaches room temperature ! Avoid burns !
  • Turn on the power switch & allow the sterilizer to heat. After some time the vessel temperature will reach the set temperature
  • Fill the sterile container with clean, dry glass beads. Please don’t use any fillers or liquid inside the container. The standard filling depth is around 20mm

Product Brochure

Product Brochure Link here
