Blood Bank Central Monitoring System SMI-BMS

Home Blood Bank >Blood Bank Central Monitoring System SMI-BMS

Blood Bank Central Monitoring System SMI-BMS

CLICK TO SCAN

Description

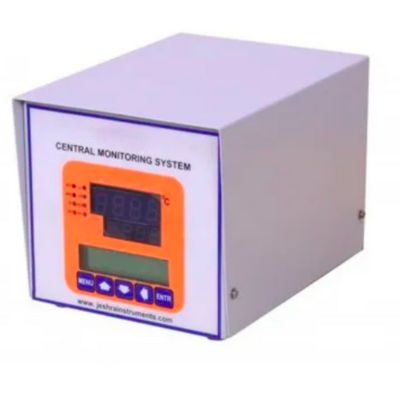

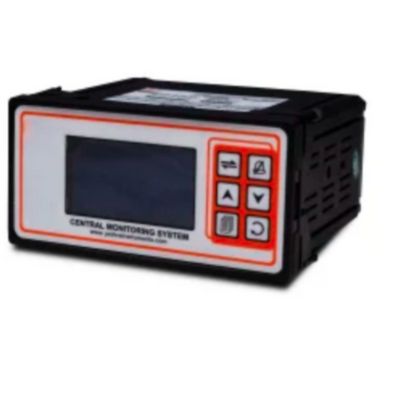

The Jindal Central Monitoring System, offered by us, is available in both versions such as 4 channel, 8 Channel and 16 Channel. It is specially designed for printing and monitoring data from a number of instruments in blood banks. It generates reports in both numeric and graphical format. We are reckoned among the reputed Manufacturers, Exporters and Suppliers of the Central Monitoring System. Our Central Monitoring System is manufactured using quality approved components and advanced technology at our well-equipped production unit.

Features:

  • 160 X 80 Monochrome Graphic Display & 6 Tactile Keys
  • 4 Universal Analog Channels
  • Each Channel Independently Configurable (Jumper-less) for : Thermocouples, RTD Pt100, mV, V, mA
  • Fast Channel Update Rate : 250 ms per Channel
  • Each Channel with Up to 4 Programmable Soft Alarms
  • Optional, 4 Common Relay Outputs for Alarms with Front Panel Acknowledgment Key
  • Optional 1 or 2 Excitation Voltage Outputs : 5V or 24V (Isolated)
  • User Assigned Channel Names for Easy PV Identification
  • Huge Data Storage Capacity : Appx. 38,56,000 Records
  • Date / Time Stamped Process Value (PV) & Alarm Status Recording for Each Channel
  • Continuous or Batch Recording with Programmable Recording Interval
  • Event Generated Records : Power-up, Alarm Toggle, RTC / Recording Interval Changed
  • Free 21 CFR Part 11 Compliant Software with PC Interface Version
  • Easy Data Transfer to PC in Excel Format for Pen-Drive Version
  • Supply Voltage : 85 to 264 VAC, 50/60 Hz

Specification

Brand
Jindal
Frequency
50 Hz
Usage/Application
Industrial
Finish
Painted
Voltage
220 - 280 V
Weight
4.5 - 6 Kg
Field Programmable Print Interval
1 to 120 Min
Number of Channels
Available in 4C, 8C & 16C

Product Brochure

Product Brochure Link here
