S.M. Scientific Instruments (P) LTD

Combined Refrigerator and Freezer SMI-165FCR-FL288

Home ≫Ultra Low Temp.>Combined Refrigerator and Freezer SMI-165FCR-FL288

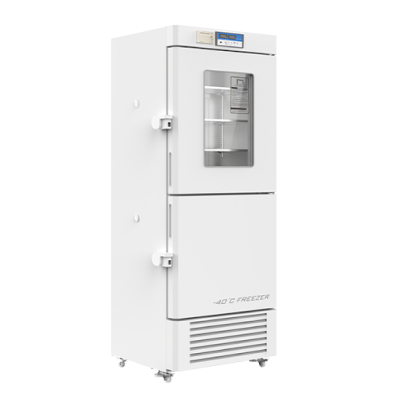

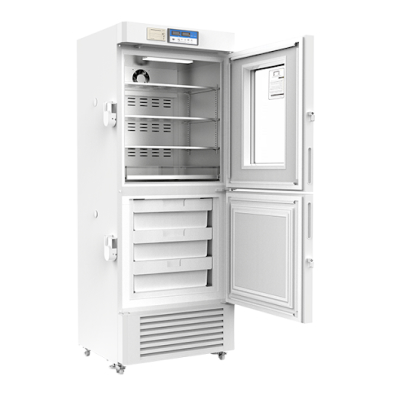

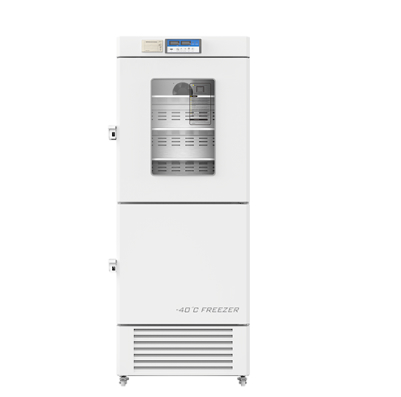

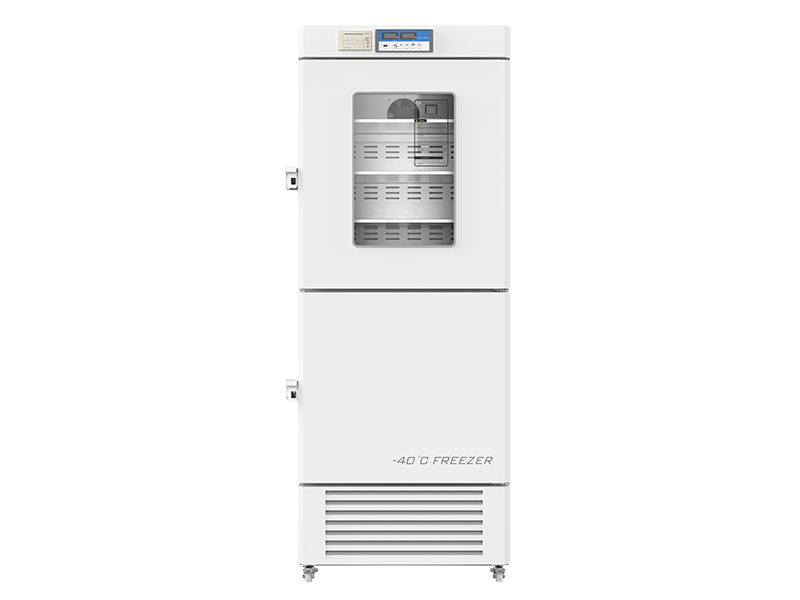

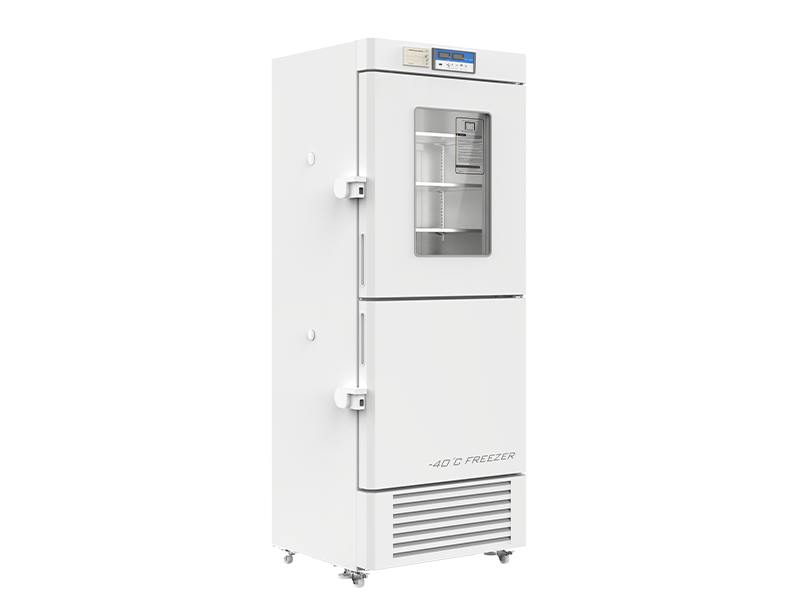

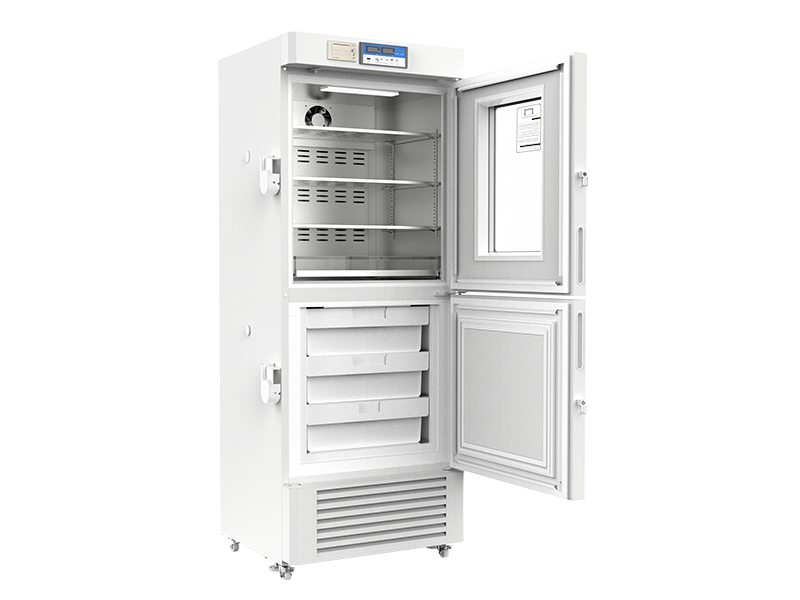

Combined Refrigerator and Freezer SMI-165FCR-FL288

CLICK TO SCAN

Description

  • High-precision Temperature Control System
  • High-efficiency Refrigerating System
  • Comprehensive Security System
  • Electric heating and LOW-E anti-condensation effect
  • Standard with Build-in USB datalogger

Jindal Combined Refrigerator and Freezer SMI-165FCR-FL288 is designed with separate control of refrigeration and freezing. It comes with two compressors and separate control of the upper refrigeration chamber and lower freezer chamber. This fridge freezer combo adopts Freon-free refrigeration, which is environmentally friendly and energy-saving. And it comes with updated thermal insulation with CFC-free polyurethane foam technology and thicker insulation layer.

Previous
Next
Enquire Now

High-precision Temperature Control System

The digital temperature and humidity are displayed independently, and operating status can be viewed and checked clearly. You are able to set the high temperature /low temperature alarm points on the medical grade refrigerator freezer freely based on your needs. And you can set the upper temperature in a range of 2℃~8℃ and lower temperature in a range of -10℃~-40℃.

High-efficiency Refrigerating System

This commercial refrigerator freezer is equipped with CFC free refrigerant and high-efficiency compressor, ensuring rapid cooling, energy-saving and high efficiency. It has two compressors and separately controls the upper refrigeration chamber and lower freezing chamber. With no CFC polyurethane foaming technology and thicker insulation layer, it can ensure a good insulation effect.

Comprehensive Security System

This medical refrigerator and freezer has 8 kinds of audible and visual alarm functions, including high\low temperature alarm, high ambient temperature alarm, sensor failure alarm, low battery alarm, communication failure (USB) data download failure alarm, door ajar alarm, and power failure alarm,etc, which ensure safer sample storage.

Features

  • Combination refrigerator freezer with upper 2°C ~ -8°C and lower-10°C~40℃.
  • Electronic temperature control for high-precision temperature and constant temperature.
  • Separate cooling type with upper fan direct cooling and lower direct cooling.
  • With 2 compressors and separate control of the upper refrigeration chamber and lower freezing chamber.
  • Digital temperature display to precisely control temperature and clearly monitor operating status.
  • Equipped with stainless steel inner material and three layers of stainless steel clapboard.
  • Equipped with sheet metal refrigerated drawers and acrylic plates.
  • Inter-room independent door lock and independent external padlock to ensure safe sample storage.
  • Electric heating and LOW-E, double glazing, good anti-condensation effect.
  • LED lighting in the cabinet of the combination refrigerator freezer for easy operation.
  • Standard with Build-in USB data logger for temperature data recording.
  • Three-layer ABS drawer in the freezer compartment.
  • 4 universal wheels+2 casters with brakes at the front and back, easy to move and place.

Specifications

Model
SMI-165FCR-FL288
Cabinet Type
Upright
Capacity(L）
288, R:188, F:100
Internal Size(W*D*H)mm
R: 600*510*710，F: 500*460*505
External Size(W*D*H)mm
700*640*1845
Package Size(W*D*H)mm
830*756*2004
NW(Kg)
143/165
Performance
Temperature Range
R:2～8, F:-10～-40
Ambient Temperature
16-32℃
Cooling Performance
R:5, F:-40
Climate Class
N
Controller
Microprocessor
Display
Digital Display
Refrigeration
Compressor
2pcs
Cooling Method
R: Forced air cooling, F:Direct cooling
Defrost Mode
R:Automatic, F:Manual
Refrigerant
R:R600a, F:R290
Insulation Thickness(mm)
B:50(R), 100(F)
Construction
External Material
Cold rolled steel
Inner Material
Stainless Steel
Shelves
R:3+1(Stainless steel),F:3(ABS)
External Lock
Yes
Data logging/Interval/Memory capacity
USB/Record every 10 minutes/1000,000data
Door with heater
Yes
Access Port
2pcs. Ø 25 mm
Casters
4 (2 casters with brakes)
Alarm
Temperature
High/Low temperature, High ambient temperature
Electrical
Power failure, Low battery
System
Sensor failure , Door ajar, Built-in USB datalog failure, Communication failure
Accessories
Standard
RS485, Remote alarm contact

Product Brochure

Product Brochure Link here
