Deep Freezer -150°C SMI-165E1

Home ≫Ultra Low Temp. >Deep Freezer -150°C > Deep Freezer -150°C SMI-165E1

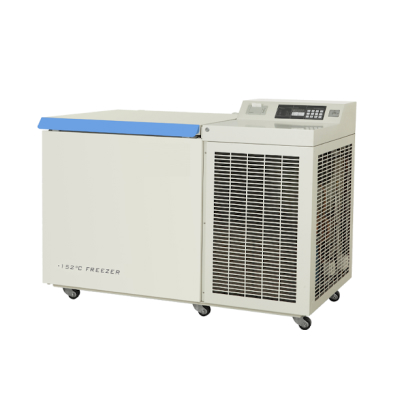

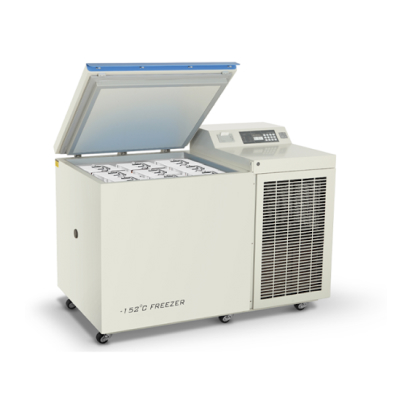

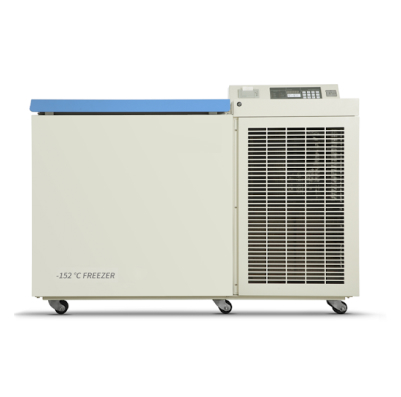

Deep Freezer -150°C SMI-165E1

CLICK TO SCAN

Description

The Jindal Deep Freezer -150°C SMI-165E1 features a unique, highly efficient, and recyclable cooling system, which won the second-class national prize for technological invention. With the SMI-165E1, the company has become the industry leader, capable of producing products with a temperature as low as -150°C and mass-producing them.

Scope of Application

The freezer is suitable for applications in scientific research, low-temperature testing of special materials, and the preservation of items such as skin, DNA/RNA, bones, bacteria, sperm, and biological products. It is ideal for use in hospitals, sanitation and anti-epidemic stations, biological engineering, university laboratories, military enterprises, and more.

Previous
Next
Enquire Now

Feature

  • Unique, high-efficient and recycling cooling system, a winner of the top second-class national prize in technological invention.
  • The turn-on delay and stopping interval protection function can ensure reliable operation.
  • The keyboard lock function and password protection function can prevent any adjustment of operating parameters without permission.
  • Unique two times foaming technology, super thick VIP insulation which greatly improves the insulation effect.  VIP vacuum insulation board, tightly locks the cold air to ensure the great insulation effect.
  • Optional single type upright racks Optional alarm lamp, voltage compensation, remote alarm and liquid N2 backup system.
  • Chest type with lid to be opened from the top, assisting balanced hinges to make it easy Casters can be fixed for easy movement and fixation.

Technical Data

Model No.

SMI-165E1

Capacity(L)

127

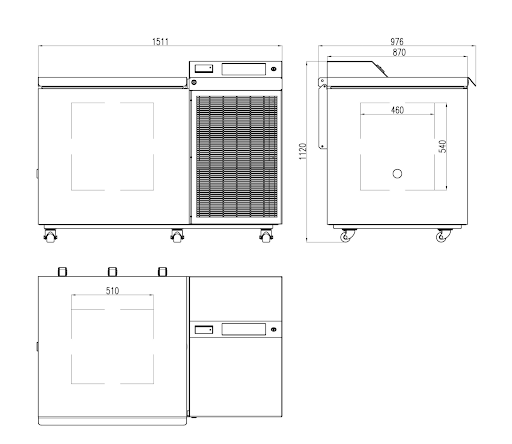

Internal size(W X D X H)mm

510 X 460 X 540

External size(W X D X H)mm

1665 X 1000 X 1115

Package size(W X D X H)mm

1815 X 1085 X 1304

NW/GW(Kgs)

390/529

Temperature range

-110 to -150℃

Ambient temperature

16-32℃

Cooling performance

-145℃

Climate class

N

Controller

Microprocessor

Display

Digital display

Compressor

1Nos.

Cooling method

Direct cooling

Defrost mode

Manual

Refrigerant

Mixture gas

Insulation thickness(mm)

205

External material

High quality Steel plates with spraying

Inner material

304 Stainless steel

Foaming lid

2

Backup battery

Yes

Casters

6

Access port

1pcs. Ø 40 mm

Data logging/Interval/Memory capacity

Printer/Record every 20 minute /100,000data

Temperature

High/Low temperature, High ambient temperature

Electrical

Power failure , Low battery

System

Sensor error, System failure, Condenser overheating, Communication failure

System

CO2 backup system
