Deep Freezer - 40°C Vertical SMI-165F

Home ≫ Ultra Low Temp.> Deep Freezer -40°C > Deep Freezer – 40°C Vertical SMI-165F

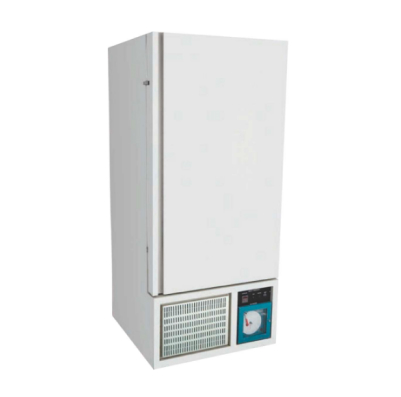

Deep Freezer - 40°C Vertical SMI-165F

CLICK TO SCAN

Description

The JINDAL Deep Freezer is specifically designed for Blood Banks, Research Institutes, and Biotechnology Firms to store various plasma components at the prescribed temperature of -40°C. This is achieved through advanced technology developed by our experts. We ensure high-quality equipment that maintains uniform temperature conditions, enabling contamination-free storage and transportation of blood and its components from collection to transfusion. Our freezers guarantee reliable storage of plasma components within the required temperature range.

Enquire Now

Robust Construction and Elegant Look

  • All SS 304 stainless steel interior
  • The heavy gauge, GI exterior with UV resistant powder coating keeps the equipment free from rusting and chipping
  • The interior shelves are made of SS304 grade stainless steel
  • The imported castor wheels ensure easy movement in the lab
  • The 12.5 cm foamed in PUF insulation of 60 Kg /cm2 density in exterior walls and door ensures ultimate protection and safety for the stored products
  • Acoustic insulation results in longer temperature-holding time and reduced power consumption
  • Eye-level positioning of the chart recorder and temperature display makes the user information more accessible and convenient.
  • The double gasket sealing and handle keeps the stored products completely intact in the freezer. It also reduces humidity migration into the interior and preserves the cold air inside the cabinet.
  • The hot line around the mouth of the cabinet prevents condensate formation
  • The 4 stainless steel interior compartments and 4 inner doors with latches ensure secure storage and less cold air loss during the opening and closing of the doors.
  • Built in 24 hours battery back-up for temperature recording unit keeps the temperature monitoring uninterrupted and monitors your valuable samples round the clock
  • User-friendly alarms and indications on the graphics LCD displays possible abnormalities
  • Eco-friendly CFC free refrigerant which is commercially & widely available R-404a
  • CFC free PUF insulation

Technical Data:

Model No.

SMI-165F100

SMI-165F200

SMI-165F300

SMI-165F400

SMI-165F500

Chamber Capacity

100Ltr.

200Ltr.

300Ltr.

400Ltr.

500Ltr.

Type

Vertical

Input Voltage

Freezer 230 +/- 10% V, 50 Hz, Single phase AC Power

Voltage Stabilizer

3 KVA

3KVA

4KVA

4KVA

4KVA

Chamber Temperature Range

-200C to -400C

No. of Trays

3 Adjustable stainless steel trays

3 Adjustable stainless steel trays

3 Adjustable stainless steel trays

4 Adjustable stainless steel trays

4 Adjustable stainless steel trays

No. Of Compartments

4 compartments

4 compartments

4 compartments

4 compartments

4 compartments

Inner Doors

4 Nos. made of stainless steel 304 Grade Doors

Main Door

125 mm thick PUF insulated door with rubber gasket sealing Cabinet

Cabinet Insulation

125 mm thick PUF insulation

Heating Near the door opening

Using the hot discharge line of compressor

Outer Construction

1.5mm thick GI sheet duly powder coated with UV resistant powder

Inside Construction

1mm SS304

Wheels

Lockable type on front (2 Nos) Castor wheel ; non-lockable type on rear (2 Nos)

Compressor

Hermetically sealed Imported Compressor

Temperature sensing method

RTD sensor placed in a SS bracket fitted at the left side of the second compartment from the bottom side

Temperature Sensor

RTD PT-100

Chart Recorder Temp. Range & duration

-1000C to +500C with duration of 7 days





Alarms & Indications

Compressor ON : Visual

High/Low temperature : Audio-Visual

Door open : Audio-Visual

Battery low : Visual

Power ON : Visual

Power Fail : Visual

Display Resolution

0.10C

Chart Resolution

30C

Recording Method

Ink pen on paper/pressure sensitive pen on pressure sensitive chart(optional)

High Temperature Alarm

Adjustable (Factory preset at +90C)

Low Temperature Alarm

Adjustable (Factory preset at -50C)
