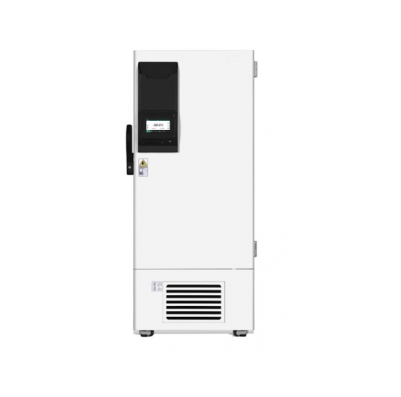

Deep Freezer -86°C SMI-165E-587L

CLICK TO SCAN

Description

The Jindal -86℃ ULT freezer is specifically designed and manufactured for the long-term storage of various biological products, including viruses, bacteria, erythrocytes, leukocytes, and tissues. It is widely used in blood banks, hospitals, epidemic prevention services, research institutes, laboratories in electronic and chemical industries, and biological engineering institutes.

Features

  • The classic black-and-white color scheme aligns with the aesthetics of more people.
  • A 7-inch LCD touch screen with an Android operating system is designed for this refrigerator, providing users with convenient and quick operation. The eye-level touch screen integrates features such as temperature display, historical graphs, alarms, and event logging.
  • The door handle can be easily operated with one hand, and the automatic pressure release port allows the door to be opened and closed frequently during daily use. The file box is designed for storing daily record files.
  • The advanced automatic cascade refrigeration system offers improved cooling efficiency and energy savings. The cooling speed has increased by 10%, and the enhanced insulation technology reduces cooling loss by 15%.
Previous
Next
Enquire Now

New Classic Design

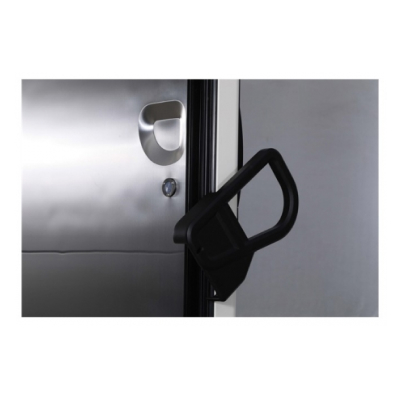

Easily Operated Door Handle

7-Inch LCD Touch Screen

Better Performance

Extensions Function

10 Types of Alarm

Detailed Images

Technical Data

Model No.

SMI-165E-587L

Cooling Method

Direct Cooling

Defrost

Manual

Temp. Range

-400C to 860C

Ambient Temp.

10 to 320C

Display

LCD Display

Access Port Qty/Dia.

1/25mm

USB Interface

Yes/1

Remote alarm access

RS232/485

Outside Material

Color sprayed steel

Inside Material

SUS304

Castor

Universal

Refrigerant

R4001(mixed gas)

Temp. Controller

Microprocessor

System

Auto-Cascade

Sensor

PTC 100

Compressor Brand /Qty

SECOP/2 Nos.

Capacity (L/cu.ft)

587/20.72

Insulation

PUFF+VIP

Inner door material/QTY

Foamed SUS304/2

Racks

16 (5 x5)

Boxes (2 Inches)

400

Samples (2ml)

40000

High/Low Temp.

Y

Power Failure

Y

Abnormal Voltage

Y

Sensor Error

Y

Door Ajar

Y

Filter Screen check

Y

Thermostat Failure

Y

Low Battery

Y

Condenser clean

Y

High Ambient

Y

Power Failure Backup

72h

Voltage Frequency

220V 50Hz/60Hz

Power (W)

1500W

Current (A)

10.35A

Power Consumption

16.02KWh/24h

Noise (dB)

53

Package Size (W X D X H)mm

970 X 1138 X 2185

Exterior Size (W X D X H)mm

872 X 1192 X 1994.5

Interior Size (W X D X H)mm

606 X 738 X 1310

Shipping CBM

2.42

N.W/ G.W (kg)

303/332

Chart Recorder

Optional

Data Logger

Optional

CO2 Backup System

Optional

LN2 Backup System

Optional

Gloves

Optional

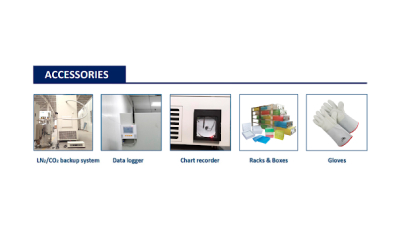

Accessories

Product Brochure

Product Brochure Link here
