Home ≫Ultra Low Temp.>Deep Freezer -86°C SMI-165E-837L
CLICK TO SCAN

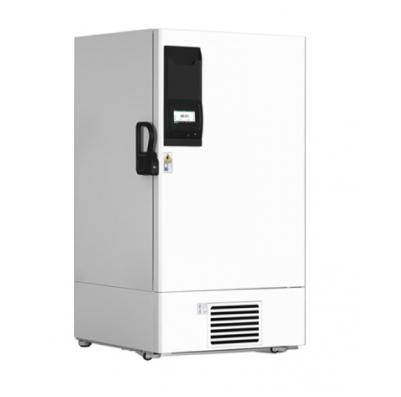

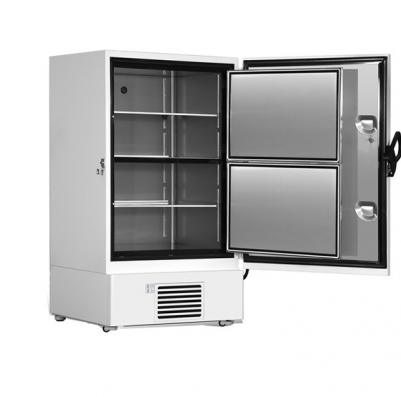

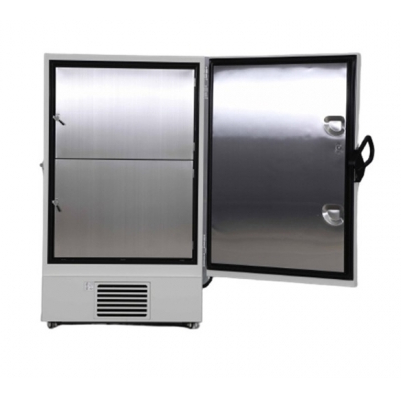

Jindal Deep Freezer -86°C SMI-165E-837L is specially designed and manufactured for long term storage of various biological products, with a new look, better ergonomics, a 7-inch touchscreen controller.The new generation products have made a great upgrade, the classic black and white color collection, in line with the aesthetics of more people. The NEW generation of E series ultra-low temperature freezers is out in the year of 2022. It has very competitive advantages in the global market.

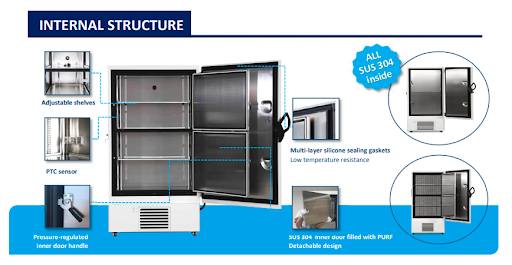

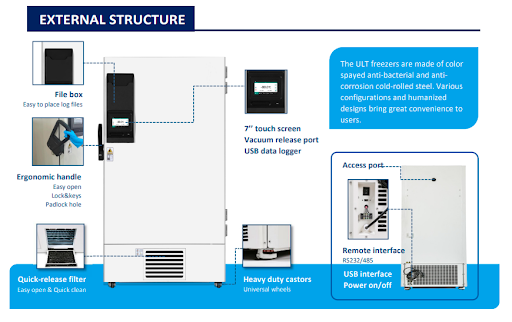

The door handle could be easily operated with one hand, and an automatic pressure release port can allow the door to open and close frequently in daily use. File box is designed for keeping daily record files.

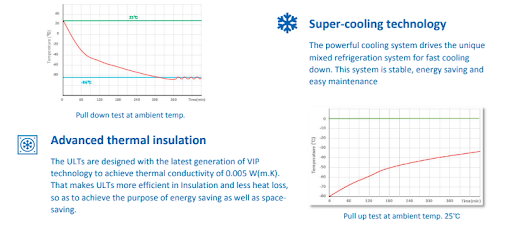

Advanced automatic cascade refrigeration systems have better cooling efficiency and energy saving. The cooling speed increased by 10%, Also, the improved insulation technology makes the cooling loss reduced by 15%.
The classic black and white color collection, in line with the aesthetics of more people.
A 7-inch LCD touch screen with android operating system is designed for this refrigerator, to enable users to operate conveniently and quickly.

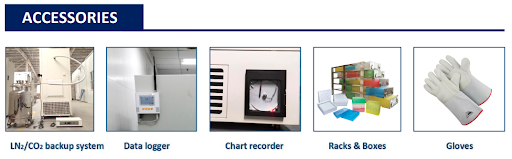

Standard configuration with built-in USB data logger, remote alarm and RS485 interface. Optional chart recorder, water cooling system and CO2/LN2 backup system.
High and low temperature alarm, power failure alarm ,high and low voltage alarm, sensor failure alarm,low battery alarm. condenser heat dissipation alarm, system failure alarm,etc,to ensure the safety of stored samples, Start-up delay and shutdown interval protection functions ensure reliable operation.
|
Model
|
SMI-165E-837L
|
|---|---|
|
Shelf/Drawer QTY
|
Stainless Steel Shelf/3
|
|
Capacity(L/Cu.ft)
|
837/29.59
|
|
Measurement(W*D*H)(mm)
|
1175*1075*1990
|
|
Insulation
|
VIP plus PURF
|
|
Racks
|
24(5X5)
|
|
Boxes(2 inches)
|
600
|
|
Samples Loading QTY(2ml)
|
60000
|
|
Temperature Range
|
-40℃~-86℃
|
|
Display
|
LCD Display
|
|
Cooling Type
|
Direct Cooling
|
|
Temp. Controller
|
Microprocessor
|
|
Ambient Temperature
|
10℃~32℃
|
|
Power Supply
|
220V/50Hz or 110V/60Hz
|
|
Basic
|
|
|---|---|
|
Cooling Method
|
Direct Cooling
|
|
Defrost
|
Manual
|
|
Temp. Range
|
-40°C~86°C
|
|
Ambient Temp.
|
10~32°C
|
|
Display
|
LED Display
|
|
Access Port Qty/Dia.
|
1/25mm
|
|
USB Interface
|
Yes/1
|
|
Remote alarm access
|
RS232/485
|
|
Outside Material
|
Color sprayed steel
|
|
Inside Material
|
SUS304
|
|
Castor
|
Universal
|
|
Electrical Data
|
Dimension
|
||
|---|---|---|---|
|
Voltage Frequency (V/Hz)
|
220V 50Hz/60Hz
|
Package Size (WxDxH)mm
|
1270x1100x2185
|
|
Power (W)
|
1700W
|
Exterior Size(WxDxH)mm
|
1160x1172x1994.5
|
|
Current (A)
|
10.75A
|
Interior size(WxDxH)
|
894x718x1310
|
|
Power Consumption
|
19.98KWh/24h
|
Shipping CBM
|
3.05
|
|
Refrigeration
|
|
|---|---|
|
Refrigerant
|
R4001(mixed gas)
|
|
Temp. Controller
|
Microprocessor
|
|
System
|
Auto-Cascade
|
|
Sensor
|
PTC
|
|
Compressor Brand /Qty
|
SECOP/2
|
|
Capacity (L/cu.ft)
|
828/29.59
|
|
Insulation
|
PURF+VIP
|
|
Inner door material/QTY
|
Foamed SUS304/2
|
|
Racks
|
24 (5x5)
|
|
Boxes (2 Inches)
|
600
|
|
Samples (2ml)
|
60000
|
|
Alarm
|
|
|
High/Low Temp.
|
Y
|
|
Power Failure
|
Y
|
|
Abnormal Voltage
|
Y
|
|
Sensor Error
|
Y
|
|
Door ajar
|
Y
|
|
Filter screen check
|
Y
|
|
Thermostat Failure
|
Y
|
|
Low Battery
|
Y
|
|
Condenser Clean
|
Y
|
|
High Ambient
|
Y
|
|
Power Failure backup
|
72h
|
|
Accessory
|
|
|
Chart Recorder
|
Optional
|
|
Data Logger
|
Optional
|
|
CO2 Backup System
|
Optional
|
|
LN2 Backup System
|
Optional
|
Product Brochure Link here
