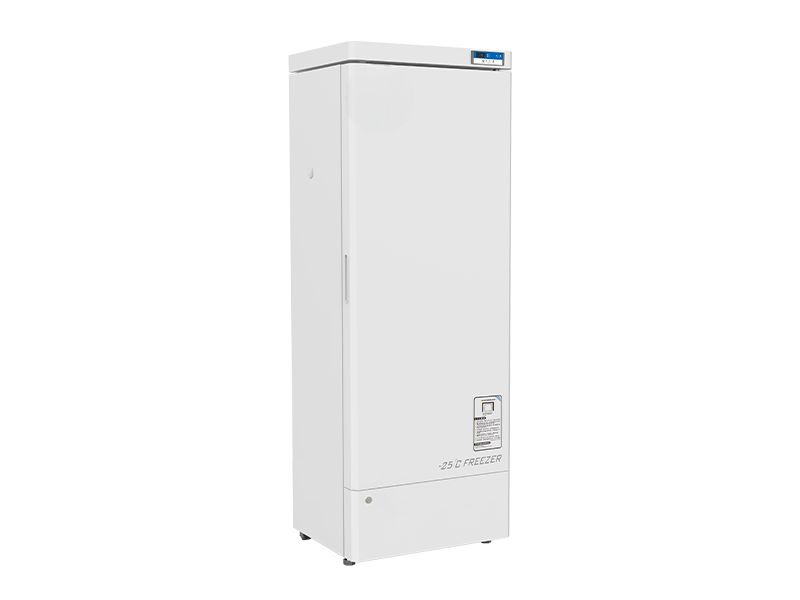

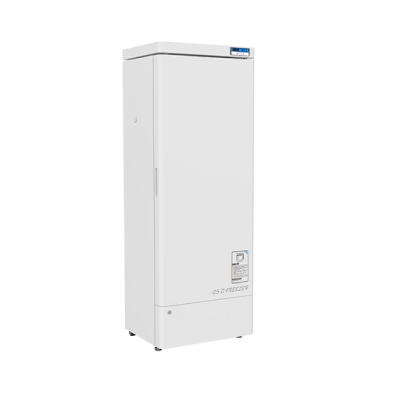

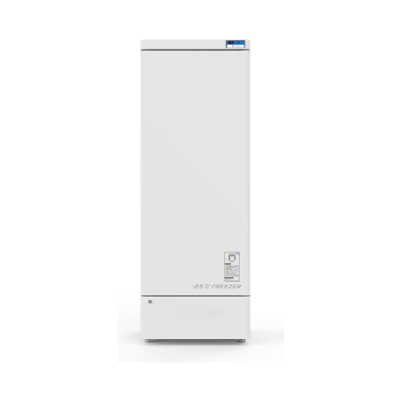

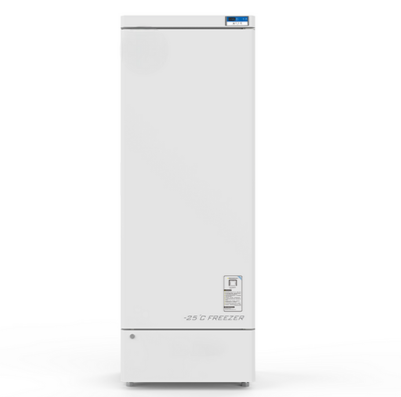

Economical Deep Freezer -10°C to -25°C SMI-165E-269

CLICK TO SCAN

Description

The Jindal Economical Deep Freezer (Model: SMI-165E-269) is a high-quality, cost-effective low-temperature freezer with stable performance. It features a globally renowned, high-efficiency, and environmentally friendly refrigeration system. The condenser is expertly designed to ensure temperature stability and reliability of the refrigeration system. This low-temperature freezer is specifically designed for laboratory and medical applications, making it ideal for the storage of specialized materials, vaccines, and biological products.

Refrigeration System

The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor, supplied by a renowned brand, ensure energy savings and low noise. The bottom-mounted condenser enhances temperature stability and system reliability.

Previous
Next
Enquire Now

Temperature Control

The high-precision computerized temperature control system ensures an adjustable temperature range of -10°C to -25°C inside the cabinet.

Security System

The advanced audible and visual alarm system, including sensor failure alarms and high/low-temperature alarms, enhances storage safety. The turn-on delay and stopping interval protection functions ensure reliable operation.

User Friendly

The airbag-type built-in door gasket is dustproof and easy to clean. The upward-opening door design, combined with a balancing door hinge, ensures effortless operation, while the built-in shelves provide convenient storage options.

Features

  • The system features a digital temperature display, and the internal temperature can be set within a range of -10°C to -25°C.
  • A high-precision microcomputer temperature control system and platinum resistor temperature sensors ensure precise temperature regulation.
  • The compressor, supplied by a globally renowned brand, is energy-efficient and environmentally friendly.
  • The proprietary refrigerating circuit ensures high efficiency and operational stability.

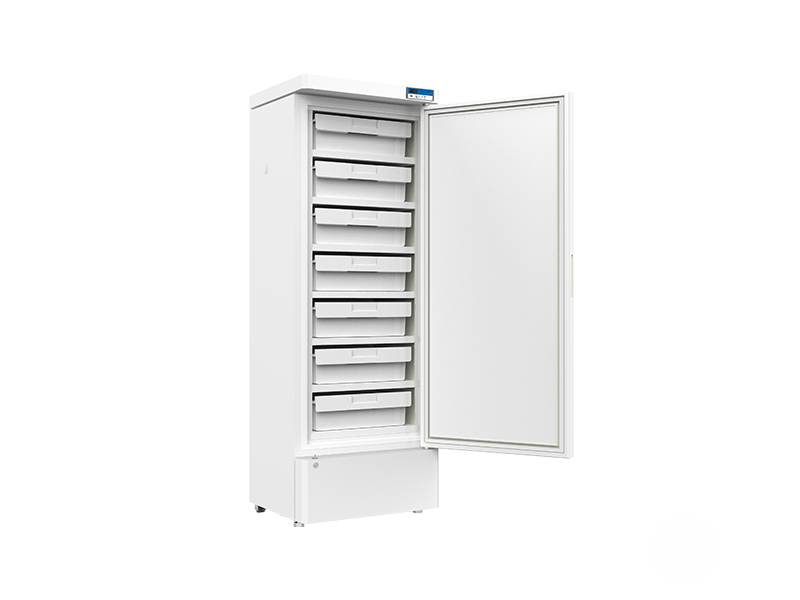

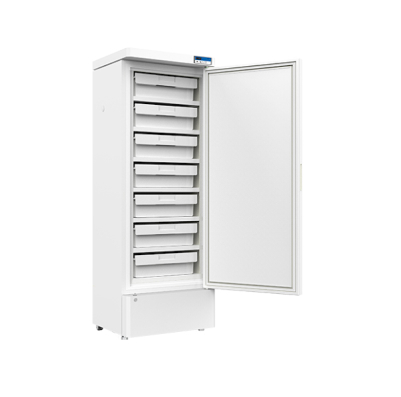

  • Seven ABS drawers allow for classified and organized storage.
  • A two-layer thermal insulating foamed door effectively minimizes refrigerant loss.
  • The cabinet is made of CFC-free polyurethane material, significantly enhancing its heat insulation performance.
  • A reliable audible and visual alarm system ensures safer storage conditions.
  • The system includes a turn-on delay and stopping interval protection feature to enhance operational reliability.
  • A keyboard lock function prevents unauthorized adjustments to operating parameters.
  • The door is equipped with a lock, ensuring secure storage of samples.

Technical Data:

Model No.:

SMI-165E-269

  Cabinet type

Upright

  Capacity(L）

269

Internal size(W X D X H)mm

500 X 460 X 1235

External size(W X D X H)mm

700 X 640 X 1792

Package size(W X D X H)mm

757 X 717 X 1865

NW/GW(Kg)

90/98

Performance

Temperature range

-10 to -25℃

Ambient temperature

16-32℃

Cooling performance

-25℃

Climate class

N

Controller

Microprocessor

  Display

Digital display

Refrigeration

Compressor

01  Nos.

Cooling method

Direct cooling

Defrost mode

Manual

Refrigerant

R600a

Insulation thickness(mm)

100

Construction

External material

PCM

Inner material

Aluminum Plate with Spraying

Drawers

7 (ABS)

Standard

RS485,Remote alarm contact

Access Port

2pcs. Ø 25 mm

Battery Back up

Yes

Data Logging/ Memory Capacity

USB/Record every 10 minutes / 100,000data

Door lock with key

Yes

Casters

4 + 2 Leveling Feet)

Alarm

Temperature

High/Low temperature, High Ambient Temperature

System

Sensor failure, Built-in USB datalogger failure, Door ajar, Main board Communication error, Recorder failure
