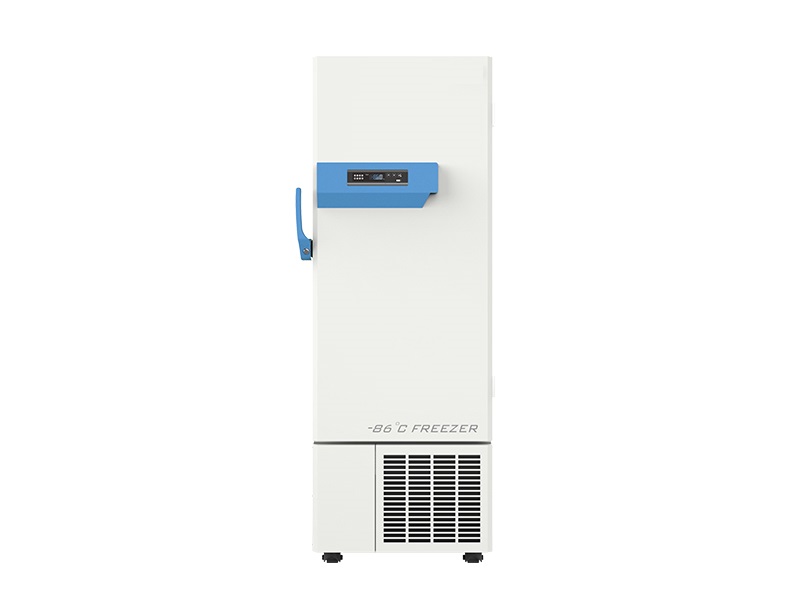

Jindal Economy Deep Freezer -86°C SMI-165EDF is cost-effective deep freezer for laboratory and medical grade. This ultra deep freezer is equipped with high-precision temperature control, ensuring the temperature uniformity in the cabinet with a range of -40°C to -86°C. The targeted refrigeration of the deep freezer enables fast refrigeration. It is designed to be human-oriented with energy saving and environmentally friendly. It can safely store laboratory research materials, pharmaceutical raw materials, and more. This medical / laboratory deep freezer is suitable for use in blood banks, health and disease prevention systems, hospitals, colleges & universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, military enterprise, deep-sea fishing companies, etc.
High-precision Temperature Control System
The -86°C ultra low temperature freezer comes with a microprocessor-based temperature control system, which enables you to set the temperature inside the cabinet in the range of -40°C ~ -86°C freely. And it makes sure the controlling precision is 1°C.
Powerful Refrigeration System
SMI-165EDF small deep freezer has adopted a high-efficiency compressor and famous EMB fan, which are energy-saving . The large finned condenser with a space between fins less and equal to 2 mm provides effective heat dissipation.
Effective Thermal Insulation System
This mini deep freezer is equipped with VIP Plus vacuum insulation foaming door with seal. And the six sides of the cabinet are made from high-performance vacuum insulation materials, which can perfectly improve the thermal insulation performance.
Audible and Visual Alarm System
Jindal lab deep freezer has a perfect audible and visual alarm system including sensor failure alarm, high/low temperature alarm, power failure alarm, door ajar alarm, etc. And it has features in turn-on delay and stopping interval protection, ensuring reliable operation.
Scope of Application
Ultra low deep freezer can be used as laboratory freezer, ultra low medical freezer and deep freezer，suitable for use in hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, military enterprises, deep-sea fishing companies, etc.
|
Model
|
SMI-165EDF
|
|---|---|
|
Cabinet Type
|
Upright
|
|
Capacity(L）
|
340
|
|
Internal Size(W*D*H)mm
|
470*578*1250
|
|
External Size(W*D*H)mm
|
755*895*1982
|
|
Package Size(W*D*H)mm
|
895*1003*2186
|
|
NW(Kg)
|
208/277(wood packing)
|
|
Performance
|
|
|
Temperature Range
|
-40～-86℃
|
|
Ambient Temperature
|
16-32℃
|
|
Cooling Performance
|
-86℃
|
|
Climate Class
|
N
|
|
Controller
|
Microprocessor
|
|
Display
|
Digital Display
|
|
Refrigeration
|
|
|---|---|
|
Compressor
|
1pc
|
|
Cooling Method
|
Direct Cooling
|
|
Defrost Mode
|
Manual
|
|
Refrigerant
|
Mixture Gas
|
|
Insulation Thickness(mm)
|
L/R:110,B:130
|
|
Construction
|
|
|
External Material
|
Cold rolled steel
|
|
Inner Material
|
Stainless Steel
|
|
Shelves
|
3(Stainless Steel)
|
|
External Lock
|
Yes
|
|
Access Port
|
1pc. Ø 25 mm
|
|
Door lock with key
|
Yes
|
|
Backup Battery
|
Yes
|
|
Data logging/Interval/Memory capacity
|
USB/Record every 10 minutes / 1000,000data
|
|
Casters
|
4
|
|
Alarm
|
|
|
Temperature
|
High/Low temperature,High ambient temperature
|
|
Electrical
|
Power failure, Low battery
|
|
System
|
Sensor failure, Condenser overheating ,Door ajar,Built-in USB datalogger failure, Communication error
|
|
Accessory
|
|
|
Standard
|
RS485,Remote alarm contact
|
|
Options
|
Chart recorder, CO2 backup system
|
Product Brochure Link here
