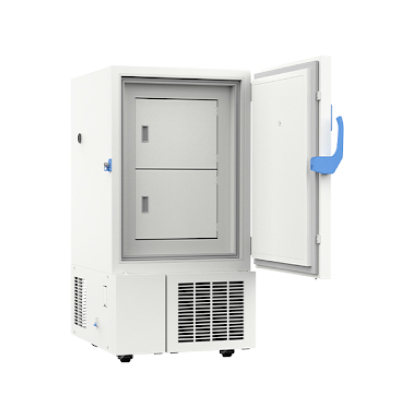

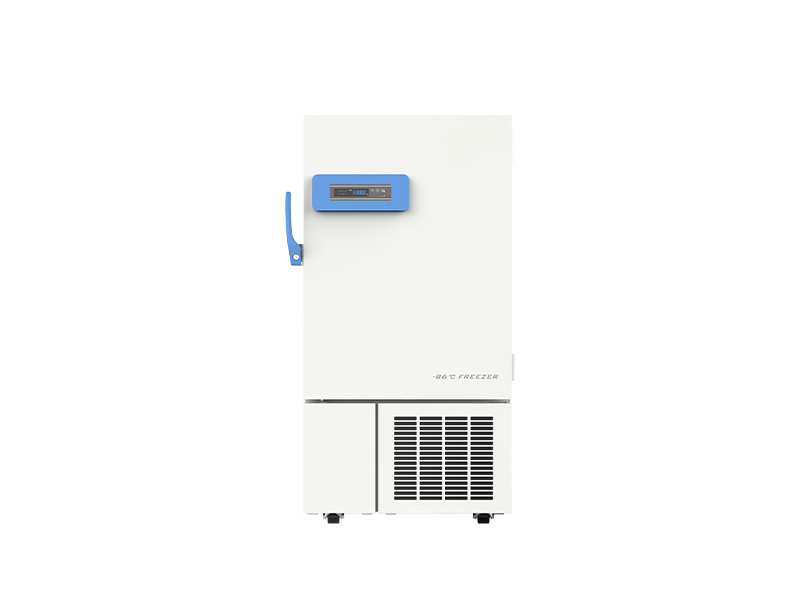

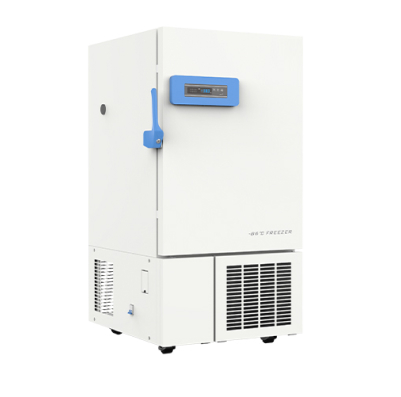

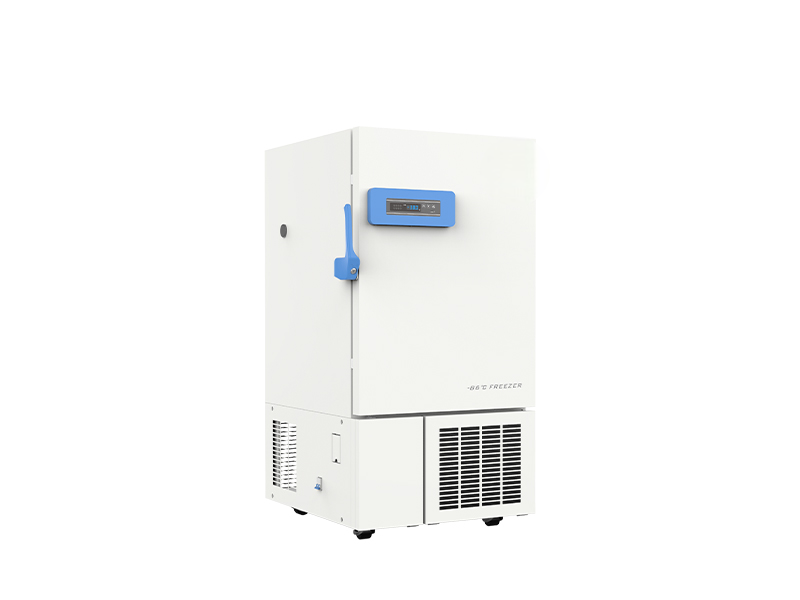

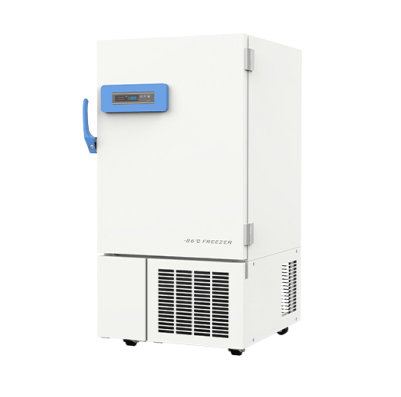

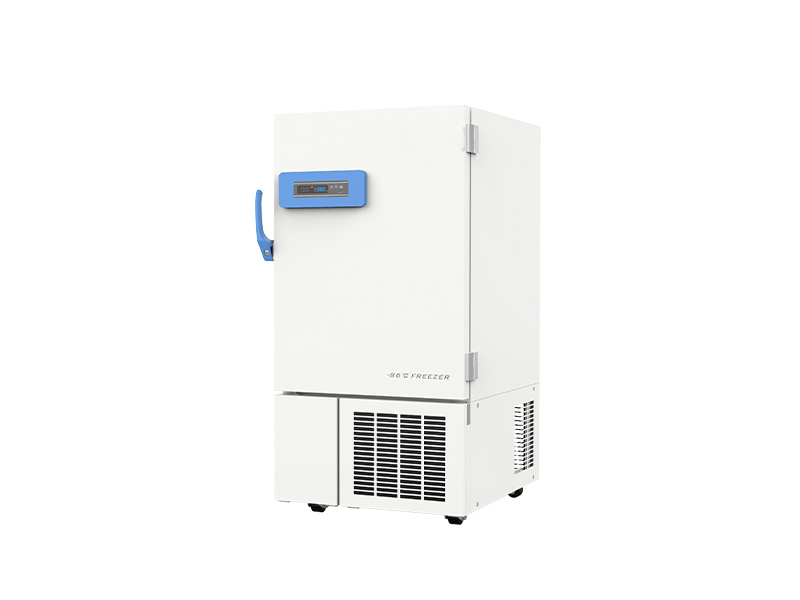

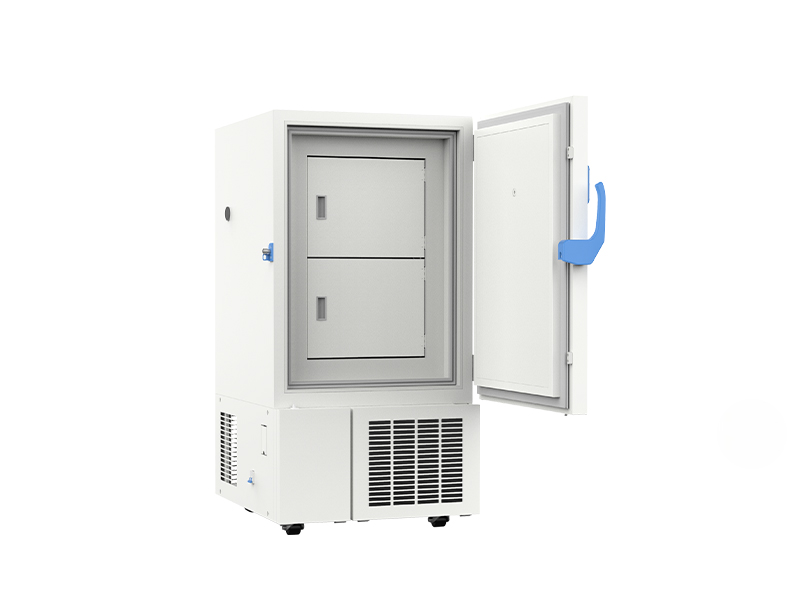

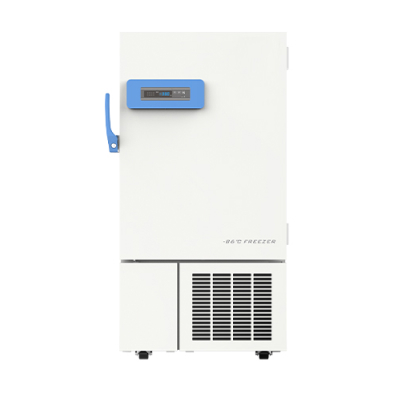

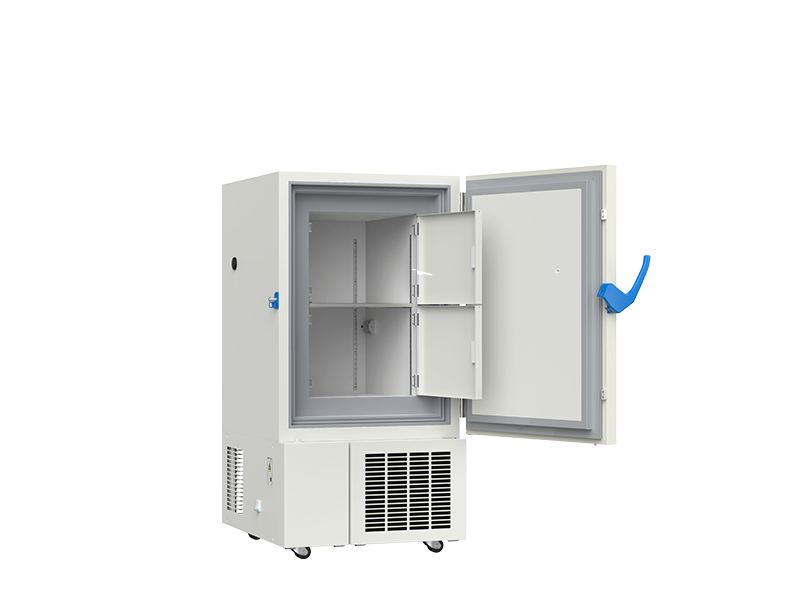

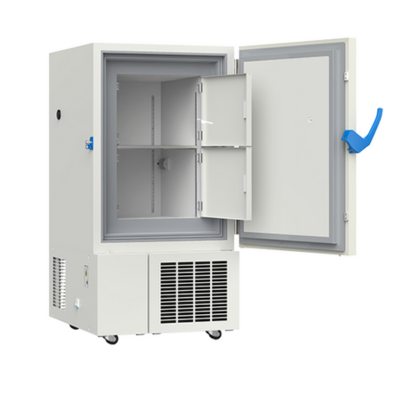

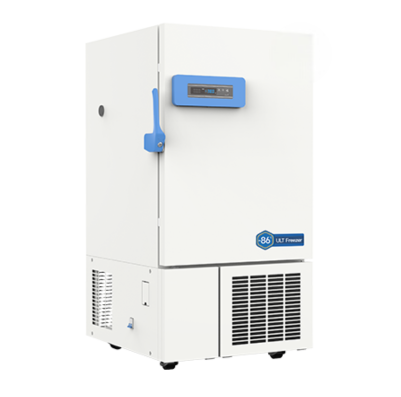

Jindal Economy ULT Freezer -86°C SMI-165EF-HC-216 is a laboratory freezer and medical freezer. This ultra deep freezer is equipped with high-precision temperature control, ensuring the temperature uniformity in the cabinet with a range of -40°C to -86°C. The targeted refrigeration of the deep freezer enables fast refrigeration. It is designed to be human-oriented with energy saving and environmentally friendly. It can safely store laboratory research materials, pharmaceutical raw materials, and more. This medical / laboratory deep freezer is suitable for use in blood banks, health and disease prevention systems, hospitals, colleges & universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, military enterprise, deep-sea fishing companies, etc.
High-precision Temperature Control System
The Economy ULT Freezer -86°C SMI-165EF-HC-216 comes with a microprocessor-based temperature control system, which enables you to set the temperature inside the cabinet in the range of -40°C ~ -86°C freely. And it makes sure the controlling precision is 1°C.
Powerful Refrigeration System
The SMI-165EF-HC-216 deep freezer has a Secop compressor and famous EMB fan, which are energy-saving and environmentally friendly. The large finned condenser with a space between fins less and equal to 2 mm provides effective heat dissipation.
Effective Thermal Insulation System
This undercounter deep freezer is equipped with VIP Plus vacuum insulation foaming door with seal. And the six sides of the cabinet are made from high-performance vacuum insulation materials, which can perfectly improve the thermal insulation performance.
Audible and Visual Alarm System
Jindal laboratory deep freezer has a perfect audible and visual alarm system including sensor failure alarm, high/low temperature alarm, power failure alarm, door ajar alarm, Low battery etc. And it has features in turn-on delay and stopping interval protection, ensuring reliable operation.
Scope of Application
JINDAL Economy ULT Freezer -86°C SMI-165EF-HC-216 can be used as laboratory freezer, ultra low medical freezer and vaccine freezer，suitable for use in hospitals, health and disease prevention systems, research institutions, colleges & universities, the electronic industry, biological engineering, laboratories in colleges & universities, military enterprises, deep-sea fishing companies, etc.
|
Model
|
SMI-165EF-HC-216
|
|---|---|
|
Cabinet Type
|
Upright
|
|
Capacity(L）
|
216
|
|
Internal Size(W*D*H)mm
|
470*582*768
|
|
External Size(W*D*H)mm
|
862*976*1555
|
|
Package Size(W*D*H)mm
|
983*1073*1741
|
|
NW(Kg)
|
218/235
|
|
Performance
|
|
|
Temperature Range
|
-40～-86℃
|
|
Ambient Temperature
|
16-32℃
|
|
Cooling Performance
|
-86℃
|
|
Climate Class
|
N
|
|
Controller
|
Microprocessor
|
|
Display
|
Digital Display
|
|
Refrigeration
|
|
|---|---|
|
Compressor
|
1pc
|
|
Cooling Method
|
Direct Cooling
|
|
Defrost Mode
|
Manual
|
|
Refrigerant
|
HC
|
|
Insulation Thickness(mm)
|
L/R:155,B:170
|
|
Construction
|
|
|
External Material
|
Cold rolled steel
|
|
Inner Material
|
Stainless Steel
|
|
Shelves
|
1(stainless steel)
|
|
External Lock
|
Yes
|
|
Access Port
|
1pc. Ø 40 mm
|
|
Door lock with key
|
Yes
|
|
Backup Battery
|
Yes
|
|
Data logging/Interval/Memory capacity
|
USB/Record every 10 minutes / 1000,000data
|
|
Casters
|
4
|
|
Alarm
|
|
|
Temperature
|
High/Low temperature,High ambient temperature
|
|
Electrical
|
Power failure, Low battery
|
|
System
|
Sensor failure, Condenser overheating ,Door ajar,Built-in USB datalogger failure, Communication error
|
|
Accessory
|
|
|
Standard
|
RS485,Remote alarm contact
|
|
Options
|
Chart recorder, CO2 backup system
|
