Intelligent Deep Freezer -60°C SMI-165I-269

Home ≫Ultra Low Temp. >Deep Freezer -60°C > Intelligent Deep Freezer -60°C SMI-165I-269

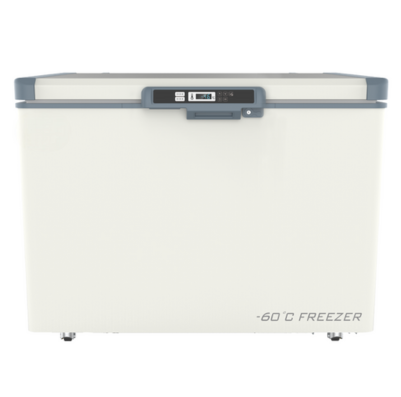

Intelligent Deep Freezer -60°C SMI-165I-269

CLICK TO SCAN

Description

The Jindal Intelligent Deep Freezer -60°C SMI-165I-269 is equipped with a high-quality refrigeration system that enables rapid cooling. Its high-precision temperature control system simultaneously displays various parameters, including power voltage, internal cabinet temperature, and environmental temperature, clearly indicating the operational status. The cabinet’s temperature can be freely set within the range of -30°C to -60°C. The two-layer, heat-insulated foamed door, combined with an airbag-type outer steel design, effectively prevents the loss of refrigerating capacity. Additionally, the liner is made of 304 stainless steel, ensuring safety for medical use.

High-efficiency Refrigeration System

  • The Freon-free refrigerant, compressor from an internationally renowned brand, and EBM fan ensure rapid cooling while being energy-efficient and environmentally friendly.
  • The refrigerating circuit, designed with proprietary intellectual property rights, guarantees high efficiency and stability.
  • The cabinet are made from high-performance insulation material, improving thermal insulation performance to a large extent.
Previous
Next
Enquire Now

Detailed Images

Temperature Control

The high-precision microcomputer temperature control system, combined with platinum resistor temperature sensors, ensures exceptionally accurate temperature regulation.

Ergonomic Design

The high-quality steel plate structure with a phosphate coating, along with a galvanized steel sheet (or optional stainless steel) liner and a low-noise design, helps create a more comfortable environment.



Scope Of Application

The Jindal Intelligent Deep Freezer -60°C SMI-165I-269 can be used as a laboratory freezer, medical freezer, or professional tuna storage freezer. It is suitable for scientific research, cryogenic testing of special materials, low-temperature resistance testing of biological materials, and the storage of vaccines, biological products, and military products.

This freezer is ideal for use in research institutions, the electronics industry, the chemical industry, hospitals, health and disease prevention systems, laboratories in colleges and universities, and military enterprises.

Features

  • The digital temperature display can simultaneously show various parameters, such as the internal cabinet temperature, power voltage, and environmental temperature, clearly indicating the operating status.
  • The high-precision microcomputer temperature control system, combined with platinum resistor temperature sensors, allows users to set the internal cabinet temperature within a range of -30℃ to -60℃.
  • The compressor, supplied by a globally renowned brand, and the EBM fan are powerful, energy-efficient, and highly effective.
  • The large-area finned condenser, with a fin spacing of 2mm or less, provides an extensive surface area for heat dissipation, ensuring excellent performance.
  • The two-layer heat-insulating foamed door with an airbag-type outer seal, along with the patented insulation design of the outer door system, effectively prevents refrigerant loss.
  • All six sides of the cabinet are made from high-performance vacuum insulation material, significantly enhancing thermal insulation performance.
  • The advanced alarm system includes multiple alert functions, such as high/low temperature alarms, door opening alarms, power outage alarms, abnormal voltage alarms, sensor failure alarms, low battery alarms, alarms for poor condenser heat dissipation, and system failure alarms.
  • The turn-on delay and stopping interval protection functions ensure reliable operation.
  • The keyboard lock and password protection functions prevent unauthorized adjustment of operating parameters.
  • The rotating handle facilitates easy door operation, while the adjustable layered structure provides convenient storage for various items.
    The stainless steel liner of the medical-grade deep freezer is low-temperature tolerant, corrosion-resistant, long-lasting, and easy to clean.

Technical Data:

Model

SMI-165I-269

Cabinet Type

  Chest

Capacity(L）

269

Internal Size(W X D X H)mm

1019 X 465 X 651

External Size(W X D X H)mm

1245 X 775 X 929

Package Size(W X D X H)mm

1332 X 810 X 975

NW/GW(Kg)

94/102

Temperature Range

-30 to -60℃

Ambient Temperature

16-32℃

Cooling Performance

-60℃

  Climate Class

N

  Controller

Microprocessor

  Display

Digital Display

Compressor

1 No.

Cooling Method

Direct Cooling

Defrost Mode

Manual

Refrigerant

Mixture Gas

Insulation Thickness(mm)

110

External Material

Cold rolled steel

Inner Material

Stainless Steel

Coated hanging basket

1

Door lock with key

Yes

Foaming Lid

Optional

Access Port

1pc. Ø 25 mm

  Casters

4（2 caster with brake)

Backup Battery

Yes

Temperature

High/Low temperature

Electrical

Power failure, Low battery

System

Sensor Failure



Product Brochure

Product Brochure Link here
