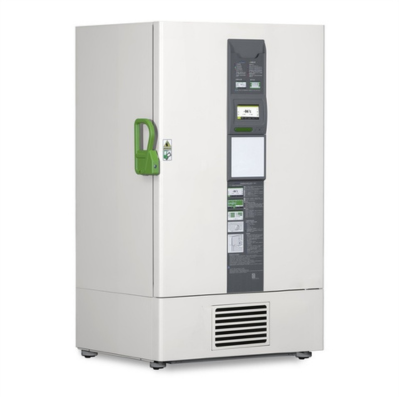

Jindal Intelligent Deep Freezer -86°C (Dual Cooling) Refrigerator is designed with two independent cooling systems which provides extra insurance for Biomedical-samples. Dual cooling system maximizes optimal reliability, and efficiency. Under normal working conditions, the 2 independent systems start in sequence at intervals.
Dual cooling system is designed with 2 independent cooling systems which provides extra insurance for Bio-samples. And a dual cooling system maximizes optimal reliability .
Should one system unexpectedly fail, the other will maintain a temperature in the -70℃ range ensuring that the sensitive samples are not put at risk separately.
Under normal working conditions, the 2 independent systems start in sequence at intervals. Then 2 systems work together to get a rapid pull-down performance.
A 7-inch LCD touch screen with Android operating system is designed for this refrigerator, to enable users to operate conveniently and quickly.
Multi-layer sealing can save energy and keep heat outside ,better insulation helps keep the freezer cold and last long,and also reduces noise during the running .
The ultra-low temperature freezer adopts the unique secondary foaming technology, and the ultra-thick VIP insulation layer greatly improves the insulation effect; the VIP vacuum insulation board tightly locks the cold air to ensure the insulation effect.
|
Temperature Range
|
-40℃~-86℃
|
|---|---|
|
Capacity
|
408L,588L,728L,838L
|
|
Cooling Type
|
Direct Cooling
|
|
Display
|
LED Display
|
|
Temp. Controller
|
Microprocessor
|
|
Power Supply
|
220V/50Hz or 110V/60Hz
|
|
Model
|
Shelf/Drawer QTY
|
Capacity（L/cu.ft)
|
Measurement(W*D*H)(mm)
|
Insulation
|
Racks
|
Boxes (2 Inches)
|
Samples Loading QTY(2ml)
|
|---|---|---|---|---|---|---|---|
|
SMI-165IDC-408D
|
Stainless steel shelf/3
|
408/14.40
|
900*940*1940
|
PURF
|
16(5X4,4X4)
|
288
|
28800
|
|
SMI-165IDC-588D
|
Stainless steel shelf/3
|
588/20.76
|
885*1100*1995
|
VIP plus PURF
|
16(5X5)
|
400
|
40000
|
|
SMI-165IDC-728D
|
Stainless steel shelf/3
|
728/25.70
|
1260*890*2010
|
VIP plus PURF
|
12(5X4)+12(6X4)
|
504
|
50400
|
|
SMI-165IDC-838D
|
Stainless steel shelf/3
|
838/29.59
|
1190*1045*2010
|
VIP plus PURF
|
24(5X5)
|
600
|
60000
|
Product Brochure Link here
