Intelligent Touch Screen ULT Vaccine Freezer -40 to -86℃ SMI-165ICS-SA-856

Home ≫Ultra Low Temp. > Intelligent Control System ULT Freezer >Intelligent Touch Screen ULT Vaccine Freezer -40 to -86℃ SMI-165ICS-SA-856

Intelligent Touch Screen ULT Vaccine Freezer -40 to -86℃ SMI-165ICS-SA-856

CLICK TO SCAN

Description

This Jindal Intelligent Touch Screen ULT Vaccine Freezer -40 to -86℃ SMI-165ICS-SA-856 Android-controlled, ultra-low energy-saving freezer can be used as a laboratory freezer, ultra-low medical freezer, or deep freezer. It is suitable for applications in hospitals, health and disease prevention systems, colleges and universities, research institutions, the electronics industry, biological engineering, and more.

The SMI-165ICS-SA-856 is a highly sought-after ultra-low temperature freezer, ideal for COVID-19 vaccine storage.

Interface Control System

A 7-inch intelligent HD touchscreen provides a user-friendly interface and more precise temperature control. Equipped with Bluetooth, Wi-Fi, and other features, it offers convenient operation and comprehensive functionality.

The high-precision microcomputer control system, combined with platinum resistor sensors, allows users to set the internal cabinet temperature within a range of -40℃ to -86℃.

Previous
Next
Enquire Now

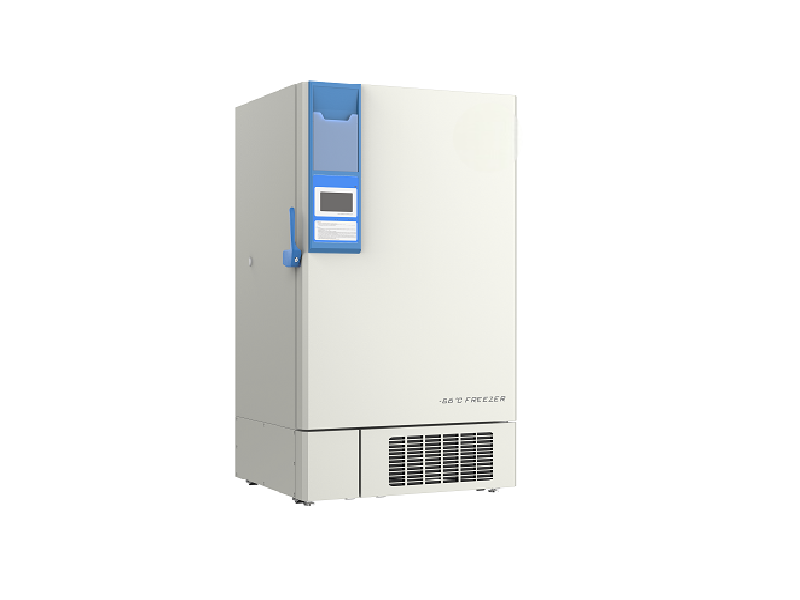

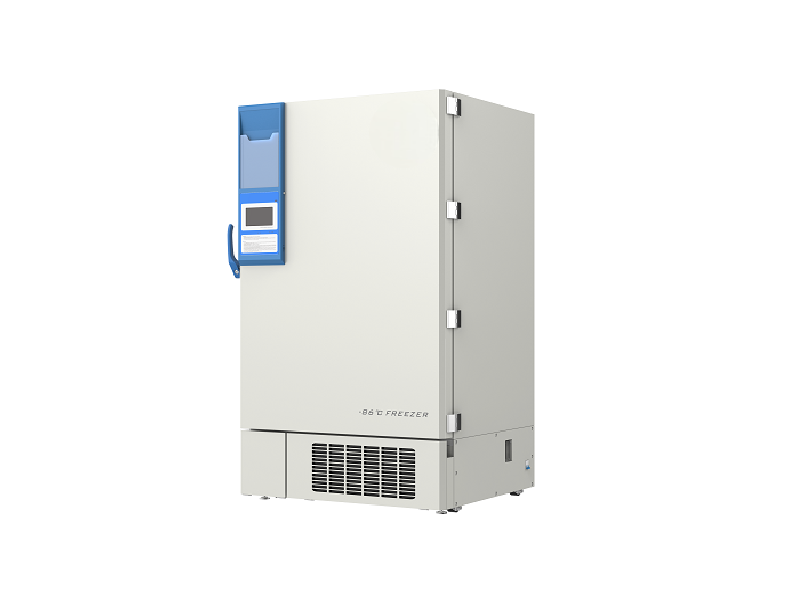

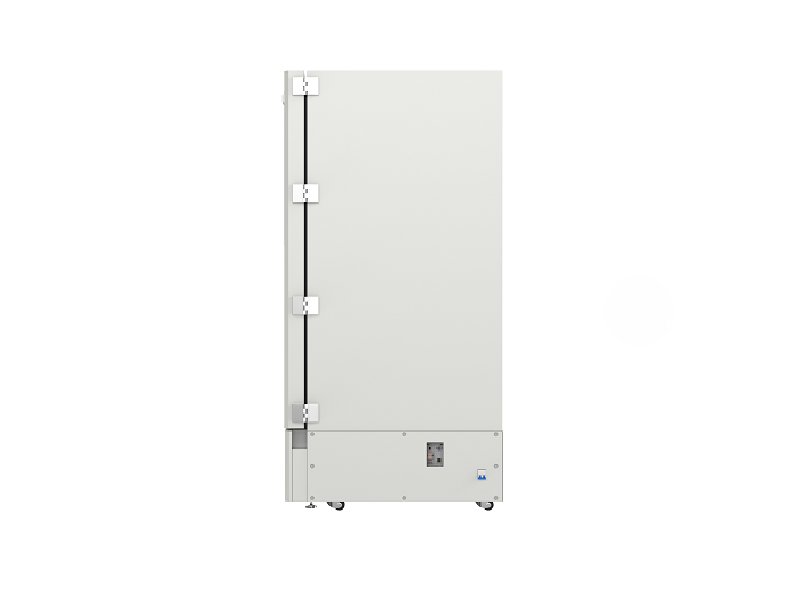

Detailed Images

Refrigeration System

  • The imported high-efficiency compressor and EBM fan ensure energy savings and exceptional performance.
  • The large finned condenser, with fin spacing ≤2mm, provides effective heat dissipation.

Security System

  • The comprehensive audible and visual alarm system includes alerts for high/low temperature, sensor failure, power failure, low battery, door ajar, main board communication error, high ambient temperature, built-in data logger USB failure, and samples past their expiration date.

  • The compressor start delay and stopping interval protection ensure reliable operation.

  • Both the touchscreen controller and keyboard controller are equipped with password protection, preventing unauthorized adjustments to the operation.

3D Thermal Insulation

The six sides of the cabinet are constructed from high-efficiency VIP vacuum thermal insulation panels. The thermal insulation design of the inner door, made from foaming material, and the outer door system, which has been awarded multiple patents, significantly enhance the freezer’s thermal insulation performance.

Ergonomic Design

  • The newly designed assisting handle and vacuum release port allow the freezer to be operated with one hand, making it easier to open and close the outer door.

  • The newly added file box makes recording easier and more convenient.

  • The liner, made from stainless steel 304 for medical use, is low-temperature tolerant, corrosion-resistant, has a long service life, and is easy to clean.

  • The universal casters and leveling feet design offer greater convenience for movement and secure fixation.

Optional Accessories

Connect to Wi-Fi to upload data to cloud storage, monitor the device, quickly check the refrigerator’s status, and ensure sample safety. An optional Bluetooth printer allows for real-time export of temperature data, temperature graphs, setting operations, and other information to track the freezer’s operating status. Optional features such as card unlocking, fingerprint unlocking, and facial recognition unlocking are available for quick access to samples.

Features

  • Designed for COVID-19 vaccine storage, the new generation of ultra-low temperature refrigeration systems ensures fast refrigeration and was awarded the Second Prize under the State Technological Invention Award.
  • The system incorporates an imported high-efficiency compressor, a separated evaporator, a composite heat exchanger, an optimized fractional condensation and separation system, and high-efficiency thermal insulation. This combination saves energy and reduces the freezer’s power consumption by 40%.
  • The low-noise direct cooling circuit, suspension frame, sound-absorbing compartment, and low-noise fan work together to minimize the noise generated by the freezer.

Technical Data

Model No.

SMI-165ICS-SA-856

Cabinet type

Upright

Capacity(L)

856

Internal size (W X D X H)mm

877 X 696 X 1378

External size (W X D X H)mm

1217 X 1025 X 1994

Package size (W X D X H)mm

1330 X 1155 X 2176

NW/GW(Kgs)

390/470(wood packing)

Temperature range

-40 to -86℃

Ambient temperature

16-32℃

Cooling performance

-86℃

Climate class

N

Controller

Microprocessor

Display

HD intelligent touch screen

Compressor

2Nos.

Cooling method

Direct cooling

Defrost mode

Manual

Refrigerant

Mixture gas

Insulation thickness(mm)

L/R:130, B:120

External material

Cold rolled steel

Inner material

Stainless steel

Shelves

3(stainless steel)

Door lock with key

Yes

External lock

Yes

Access port

3pcs. Ø 25 mm

Casters

4+(2 leveling feet)

Data logging/Interval/Memeory capacity

USB/Record every 5 minute/ 10 years

Backup battery

Yes

Temperature

High/Low temperature, High ambient temperature

Electrical

Power failure, Low battery

System

Sensor failure, Main board communication error ,Condenser overheating alarm, Door ajar

Standard

Remote alarm contact，RS485

Options

Chart recorder, CO2 backup system
