Large Volume Ultra-Low Deep Freezer -20°C to -40°C SMI-165LVDF 1007

Home ≫ Ultra Low Temp.> Deep Freezer -40°C  >Large Volume Ultra-Low Deep Freezer -20°C to -40°C SMI-165LVDF 1007

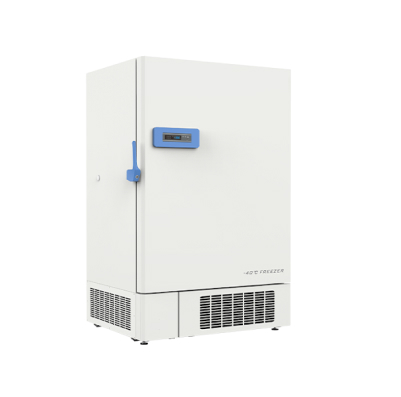

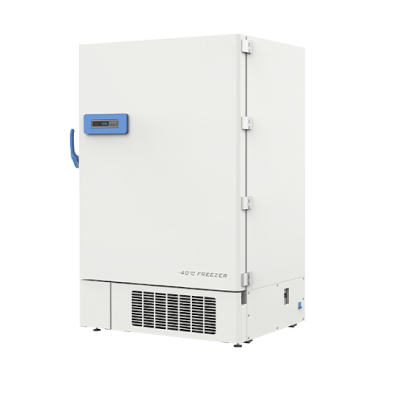

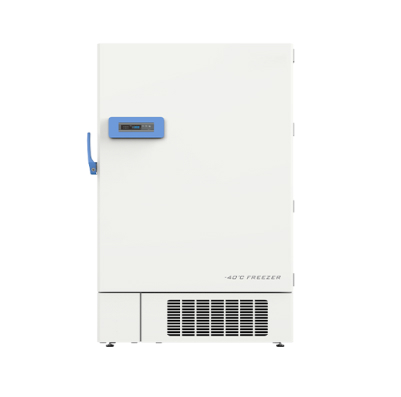

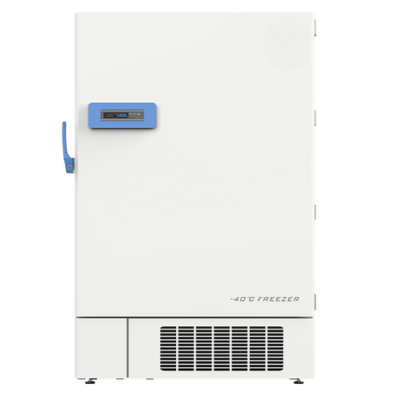

Large Volume Ultra-Low Deep Freezer -20°C to -40°C SMI-165LVDF 1007

CLICK TO SCAN

Description

The Jindal Ultra-Low Temperature Deep Freezer (-20°C to -40°C), model SMI-165ULDF-1007, is equipped with a high-quality refrigeration system for rapid cooling. Its high-precision temperature control system simultaneously displays various parameters, including power voltage, internal cabinet temperature, and environmental temperature, clearly indicating the operational status. The temperature inside the cabinet can be set freely within the range of -20°C to -40°C.

The two-layer, heat-insulated foamed door with an airbag-type outer steel design effectively prevents the loss of refrigerating capacity.

High-efficiency Refrigeration System

  • The Freon-free refrigerant, compressor from an internationally renowned brand, and EBM fan ensure rapid cooling while being energy-efficient and environmentally friendly.
  • The refrigerating circuit, designed with proprietary intellectual property rights, guarantees high efficiency and stability.
  • The cabinet are made from high-performance insulation material, improving thermal insulation performance to a large extent.
Previous
Next
Enquire Now

Detailed Images

Temperature Control

The high-precision microcomputer temperature control system, combined with platinum resistor temperature sensors, ensures exceptionally accurate temperature regulation.

Ergonomic Design

The high-quality steel plate structure with a phosphate coating, along with a galvanized steel sheet (or optional stainless steel) liner and a low-noise design, helps create a more comfortable environment.

Features

  • The digital temperature display shows various parameters simultaneously, such as internal cabinet temperature, power voltage, and environmental temperature, clearly indicating the operating status.
  • The high-precision microcomputer temperature control system, combined with platinum resistor temperature sensors, enables users to set the internal cabinet temperature within a range of -20℃ to -40℃.
  • The compressor, supplied by an internationally renowned brand, and the EBM fan are powerful, energy-efficient, and highly effective.
  • The large-area finned condenser features a fin spacing of 2mm or less, providing a large surface area for heat dissipation and ensuring satisfactory performance.
  • The two-layer heat-insulating foamed door with an airbag-type outer seal, along with the multi-patented insulation design of the outer door system, effectively prevents refrigerating capacity loss.
  • The cabinet is made from high-performance insulation material, significantly improving thermal insulation performance.
  • The well-developed alarm system includes multiple alarm functions: high/low temperature alarm, power failure alarm, sensor failure alarm, low battery alarm, poor heat dissipation of condenser alarm, system failure alarm, and more.
  • The turn-on delay and stopping interval protection functions ensure reliable operation.
  • The keyboard lock and password protection functions prevent unauthorized adjustments to operating parameters.
  • The rotating handle facilitates easy door opening.

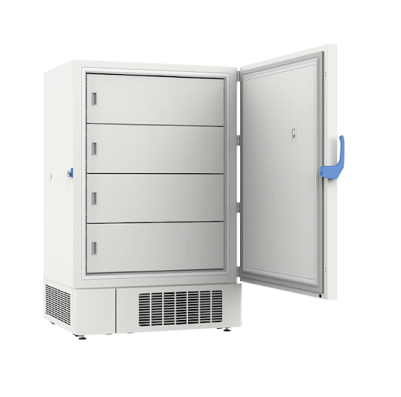

  • The adjustable layered structure allows convenient storage of various items.
  • The liner, made from stainless steel for medical use, is low-temperature tolerant, corrosion-resistant, durable, and easy to clean.

Scope of Application

Suitable for use in scientific research, cryogenic testing of special materials, low temperature resistance testing of biological materials, vaccines, biological products, military products, and more. It is ideal for research institutions, the electronics industry, the chemical industry, hospitals, health and disease prevention systems, university laboratories, military enterprises, and other similar applications.

Technical Data:

Model No.:

SMI-165LVDF 1007

Cabinet type

Upright

Capacity(L）

1007

Internal size(W X D X H)mm

1022 X 696 X 1378

External size(W X D X H)mm

1360 X 1006 X 1980

Package size(W X D X H)mm

1473 X 1155 X 2176

NW/GW(Kgs)

320/440

Temperature range

-20 to -40℃

Ambient temperature

16-32℃

Cooling performance

-40℃

Climate class

N

Controller

Microprocessor

Display

Digital display

Compressor

2 No.

Cooling method

Direct cooling

Defrost mode

Manual

Refrigerant

R290

Insulation thickness(mm)

L/R:130, B:120

External material

Cold Rolled Steel

Inner material

Stainless steel / Galvanized steel(optional)

Drawers

3(Stainless Steel)

Door lock with key

Yes

Access port

2pc. Ø 25 mm

Casters

4+(2 leveling feet)

Data logging/Interval/Memory capacity

USB/Record every 10 minutes/1000,000data

Backup battery

Yes

Temperature

High/Low temperature, High ambient temperature

Electrical

Power failure, Low battery

System

Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure

Standard

RS485, Remote alarm contact & Chart Recorder is optional
