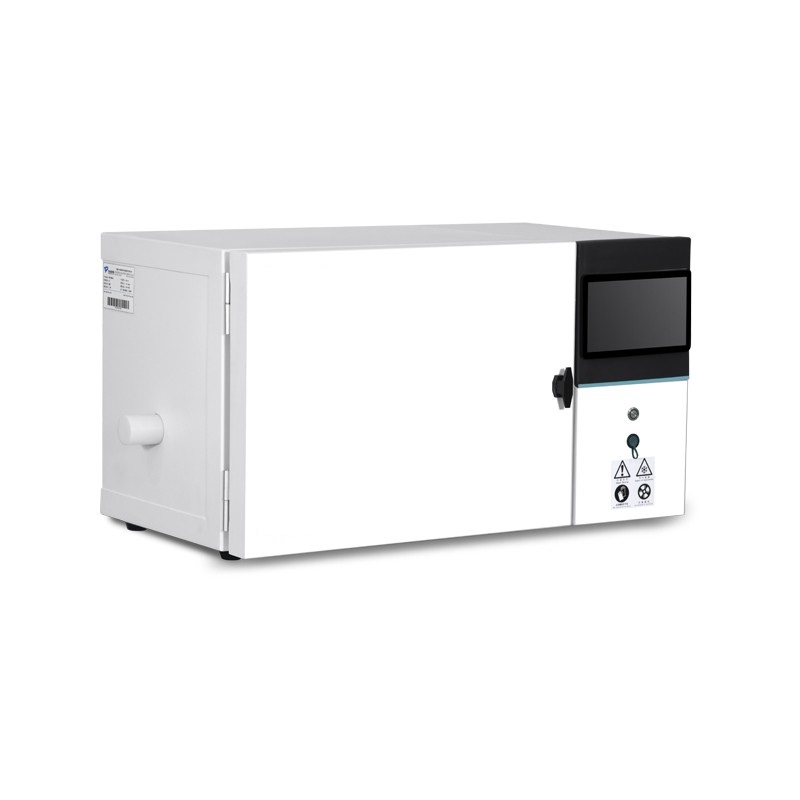

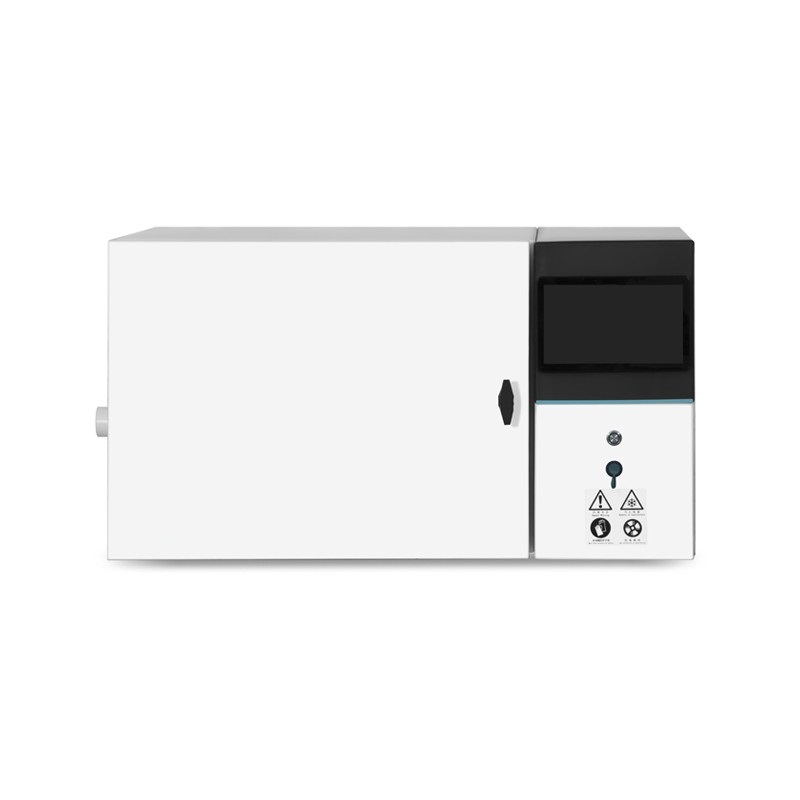

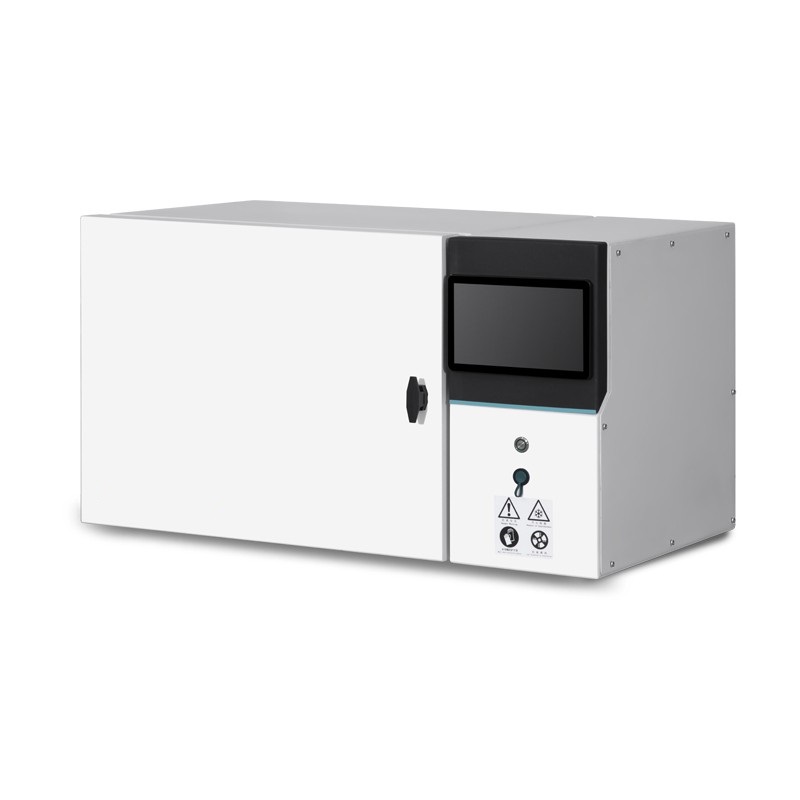

JINDAL Liquid Nitrogen Controlled Rate Freezer is a programmable cooling device that is widely used for cooling temperature-sensitive cells, such as primary cells. The newly designed integrated Cell Digit Cooling system uses the latest temperature control and liquid nitrogen dispersion technology to ensure a uniform and stable cooling process. The CDG freezer is capable of IQ/OQ operation, which meets the needs of GLP laboratories.
Temperature Range: 50℃～-190℃
Freezing Rate: 0.1 ~ 99.9 ℃/Min
Heating Rate: 0.1 ~ 10℃/Min
Temperature Deviation: ＜2℃

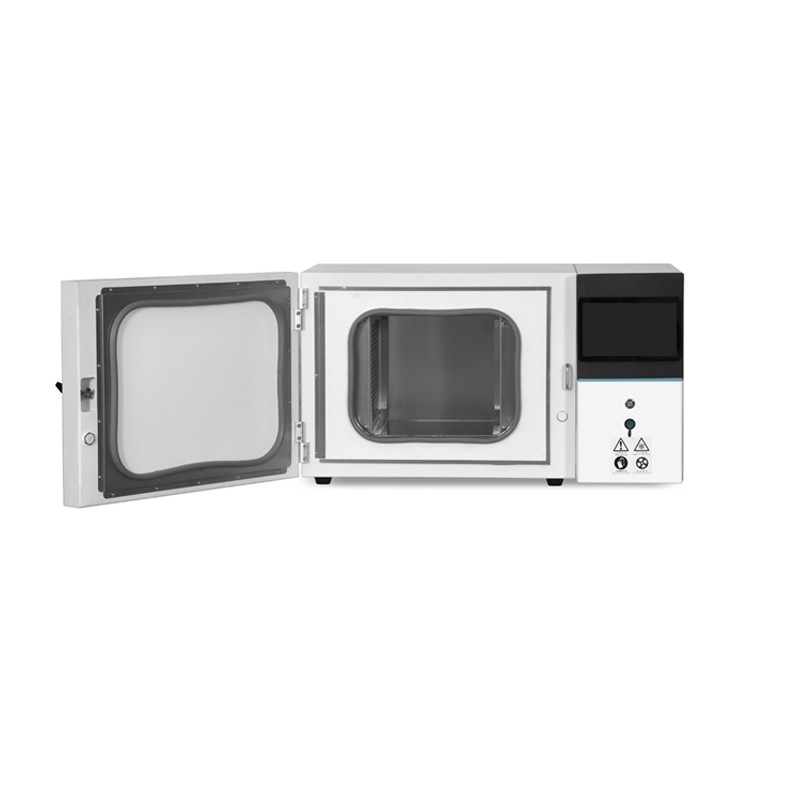

The outer shell of the freezer is made of powder-coated, corrosion-resistant material, and the inner chamber is made of durable SUS304 Stainless steel.
The high precision microprocessor control and LCD touch screen interface provide accurate temperature control.
The original polyurethane insulation material with in-situ foaming provides excellent insulation performance, ensuring low temperature fluctuation.

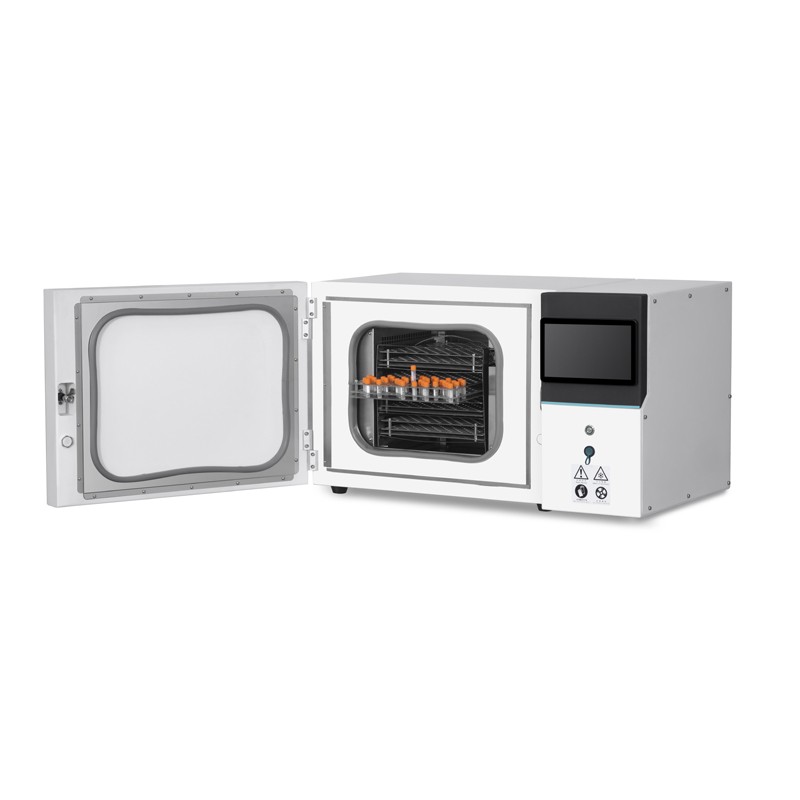

The LN2C freezer is equipped with dual solenoid valves for improved safety. The touch screen interface features a touch door opening function ,which allows for easy sample insertion and removal.
The touch screen displays the samples and chamber temperature curves, as well as the enthalpy of fusion and other parameters. The entire operation process is documented with automatic data backup.
The built-in fan（with protective cover) provides horizontal laminar flow circulation, and evenly dispersed liquid nitrogen ,which ensures quiet operation and temperature uniformity.
|
Model No.
|
SMI-LN2C-001
|
SMI-LN2C-002
|
SMI-LN2C-003
|
|---|---|---|---|
|
Exterior Dimensions W*D*H (mm)
|
810*540*790
|
960*540*790
|
1110*540*790
|
|
Interior Dimensions W*D*H (mm)
|
180*305*330
|
330*305*330
|
485*305*330
|
|
Capacity(L)
|
17L
|
34L
|
51L
|
|
Net Weight(Kg)
|
64
|
75
|
83
|
|
2ml Tubes
|
380
|
805
|
1185
|
|
5ml Tubes
|
152
|
322
|
474
|
|
25/50 ml Blood Bags
|
30
|
60
|
90
|
|
250ml Blood Bags
|
10
|
20
|
30
|
