Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-225A

Home ≫Ultra Low Temp.>Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-225A

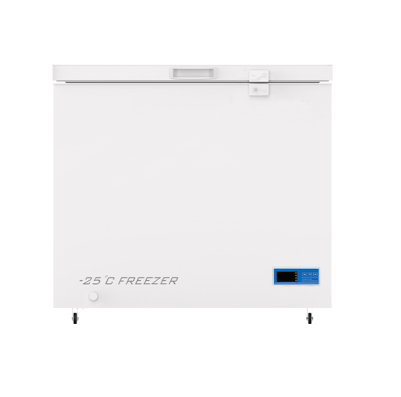

Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-225A

CLICK TO SCAN

  • Stable temperature performance
  • High quality refrigeration system
  • High-precision temperature control
  • Reliable audible and visual alarm system
  • Cost-effective biomedical chest freezer



Overview

Jindal Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-225A is specially designed in medical and laboratory grade. This low temp freezer brings out stable performance in refrigeration and temperature control. And this chest deep freezer provides you with optional capacity in 226L  to meet different storage needs. It is equipped with environmentally friendly Freon-free refrigerant and high-efficiency compressor, which can ensure energy-saving and fast refrigeration.

Refrigeration System

The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise. The condenser installed on the bottom ensures temperature stability and system reliability.

Temperature Control

The high-precision computerized temperature control system ensures an adjustable temperature within a range from -10 to -25℃ inside the cabinet.

Security System

The well-developed audible & visual alarm system (sensor failure alarm,  high temperature/low temperature alarm, etc.) makes it safer for storage; The turn-on delay and stopping interval protection function can ensure reliability in running.

Human-oriented

The airbag-type built-in door gasket is dustproof and easy to clean. The design of upward door opening and the balancing door hinge facilitate door opening; the built-in shelves are convenient for placement of things.

Previous
Next
Enquire Now

Features

  • The digital temperature display can indicate operating status clearly.
  • The high-precision microcomputer temperature control system enables users to set the temperature inside the cabinet within a range from -10℃ to -25℃.
  • The well-developed audible & visual alarm system makes it safer for storage.
  • The turn-on delay and stopping interval protection function can ensure reliability in running.
  • The door is equipped with a lock, improving security of sample storage.
  • The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise.
  • The condenser installed on the bottom ensures temperature stability and system reliability.
  • The CFC-free polyurethane foam technology and the thicker insulating layer can improve the effect of thermal insulation.

Mappings

Image available inn the gallery

Scope of Application

Low Temperature Deep Freezer suitable for freezing of ice bars and storage of various things needing refrigerated storage such as reagent, etc. Suitable for use in hospitals, clinics, health and disease prevention systems, laboratories in colleges & universities, the frozen food industry and catering industry, etc.

Technical Data:

Model
SMI-165LDF-225A
Cabinet
Chest
Capacity(L）
225
Internal Size(W*D*H)mm
954*410*703
External Size(W*D*H)mm
1115*610*890
Package Size(W*D*H)mm
1158*646*940
NW(Kg)
50/55
Performance
Temperature Range
-10～-25℃
Ambient Temperature
16-32℃
Cooling Performance
-25℃
Climate Class
N
Controller
Microprocessor
Display
Digital Display
Refrigeration
Compressor
1pc
Cooling Method
Direct Cooling
Defrost Mode
Manual
Refrigerant
R290
Insulation Thickness(mm)
75
Construction
External Material
PCM
Inner Material
Embossed aluminum sheet
Coated hanging basket
1
Door lock with key
Yes
Casters
4（2 casters with brake)
Alarm
Temperature
High/Low temperature
System
Sensor Failure
