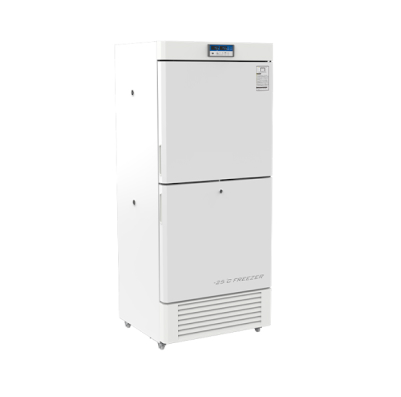

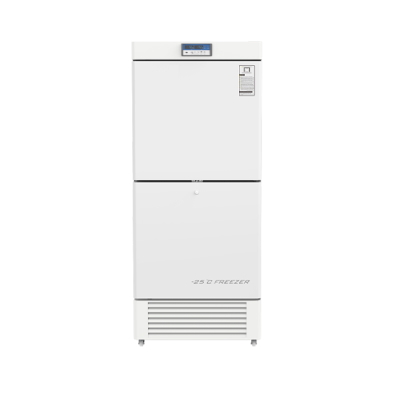

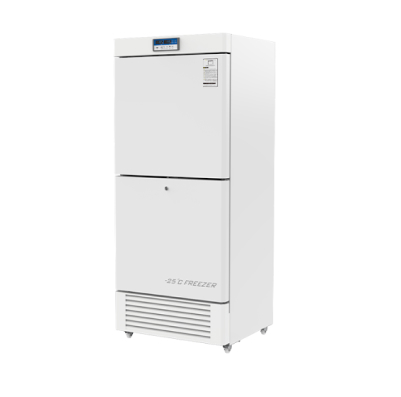

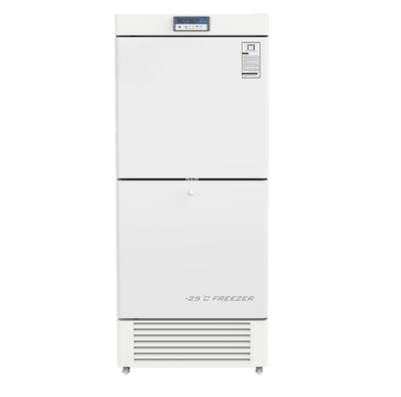

Jindal Low Temperature Deep Freezer -10°C to -25°C SMI-165LDF-449 is special for medical freezer and lab freezer. This low temperature freezer is designed with two compressors and two chambers, which allows you to control the upper chamber and lower chamber independently. And the high-precision microcomputer temperature control system has the ability to set the temperature inside the cabinet in the range of -10°C to -25°C. The built-in door gasket can perfectly maintain a constant inside temperature and is easy to clean. The low temp freezer is best for storage of various medical and scientific materials, including reagent, and more.
The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor, supplied by a renowned brand, ensure energy savings and low noise. The bottom-mounted condenser enhances temperature stability and system reliability.
The high-precision computerized temperature control system ensures an adjustable temperature range of -10°C to -25°C inside the cabinet.
The advanced audible and visual alarm system, including sensor failure alarms and high/low-temperature alarms, enhances storage safety. The turn-on delay and stopping interval protection functions ensure reliable operation.
The airbag-type built-in door gasket is dustproof and easy to clean. The upward-opening door design, combined with a balancing door hinge, ensures effortless operation, while the built-in shelves provide convenient storage options.
The Low-Temperature Deep Freezer is ideal for freezing ice bars and storing items requiring refrigerated storage, such as reagents. It is suitable for use in hospitals, clinics, health and disease prevention systems, university laboratories, the frozen food industry, and the catering industry.
Model No.: | SMI-165LDF-449 |
Cabinet type | Vertical |
Capacity(L） | 449 |
Internal size(W X D X H)mm | (650 X 570 X 627) X 2 |
External size(W X D X H)mm | 810 X 735 X 1960 |
Package size(W X D X H)mm | 895 X 820 X 2135 |
NW/GW(Kg) | 136/165 |
Performance | |
Temperature range | -10 to -25℃ |
Ambient temperature | 16-32℃ |
Cooling performance | -25℃ |
Climate class | N |
Controller | Microprocessor |
Display | Digital display |
Refrigeration | |
Compressor | 02 Nos. |
Cooling method | Direct cooling |
Defrost mode | Manual |
Refrigerant | R600a |
Insulation thickness(mm) | 80 |
Construction | |
External material | PCM |
Inner material | Aluminum Plate with Spraying |
Shelves | 12 (ABS) |
No. Of Door | 02 |
Access Port | 2pcs. Ø 25 mm |
Battery Back up | Yes |
Data Logging/ Memory Capacity | USB/Record every 10 minutes / 100,000data |
Door lock with key | Yes |
Casters | 4（2 casters with brake) |
Alarm | |
Temperature | High/Low temperature, High Ambient Temperature |
System | Sensor failure, Built-in USB datalogger failure, Door ajar, Main board Communication error, Recorder failure |
Product Brochure Link here
