Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-507A

Home ≫Ultra Low Temp.>Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-507A

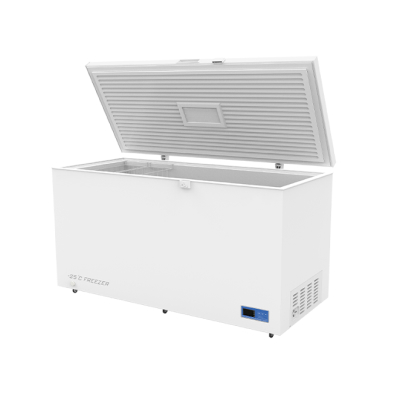

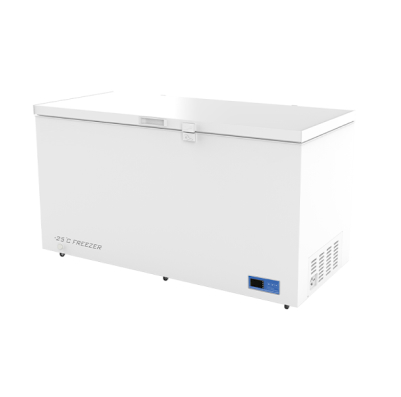

Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-507A

CLICK TO SCAN

  • Stable temperature performance
  • High quality refrigeration system
  • High-precision temperature control
  • Reliable audible and visual alarm system
  • Cost-effective biomedical chest freezer



Overview

Jindal Low Temperature Deep Freezer -10°C ~-25°C SMI-165LDF-507A is specially designed in medical and laboratory grade. The low temp. freezer brings out stable performance in refrigeration and temperature control. And this chest deep freezer provides you with optional capacity in 508L to meet different storage needs. It is equipped with environmentally friendly Freon-free refrigerant and high-efficiency compressor, which can ensure energy-saving and fast refrigeration.

Refrigeration System

The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise. The condenser installed on the bottom ensures temperature stability and system reliability.

Temperature Control

The high-precision computerized temperature control system ensures an adjustable temperature within a range from -10 to -25℃ inside the cabinet.

Security System

The well-developed audible & visual alarm system (sensor failure alarm, high temperature/low temperature alarm, etc.) makes it safer for storage; The turn-on delay and stopping interval protection function can ensure reliability in running.

Previous
Next
Enquire Now

Features

  • The digital temperature display can indicate operating status clearly.
  • The high-precision microcomputer temperature control system enables users to set the temperature inside the cabinet within a range from -10℃ to -25℃.
  • The well-developed audible & visual alarm system makes it safer for storage.
  • The turn-on delay and stopping interval protection function can ensure reliability in running.
  • The door is equipped with a lock, improving security of sample storage.
  • The environmentally friendly Freon-free refrigerant and high-efficiency enclosed compressor supplied by a famous brand can ensure energy saving and low noise.
  • The condenser installed on the bottom ensures temperature stability and system reliability.
  • The CFC-free polyurethane foam technology and the thicker insulating layer can improve the effect of thermal insulation.

Scope of Application

Low Temperature Deep Freezer suitable for freezing of ice bars and storage of various things needing refrigerated storage such as reagent, etc. Suitable for use in hospitals, clinics, health and disease prevention systems, laboratories in colleges & universities, the frozen food industry and catering industry, etc.

Technical Data:

Model
SMI-165LDF-507A
Cabinet
Chest
Capacity(L）
507
Internal Size(W*D*H)mm
1504*545*673
External Size(W*D*H)mm
1650*735*880
Package Size(W*D*H)mm
1775*852*1061
NW(Kg)
74/95
Performance
Temperature Range
-10～--25℃
Ambient Temperature
16-32℃
Cooling Performance
-25℃
Climate Class
N
Controller
Microprocessor
Display
Digital Display
Refrigeration
Compressor
1pc
Cooling Method
Direct Cooling
Defrost Mode
Manual
Refrigerant
R134a
Insulation Thickness(mm)
70
Construction
External Material
PCM
Inner Material
PCM
Coated hanging basket
2
Door lock with key
Yes
Casters
6（2 casters with brake)
Alarm
Temperature
High/Low temperature
System
Sensor Failure
