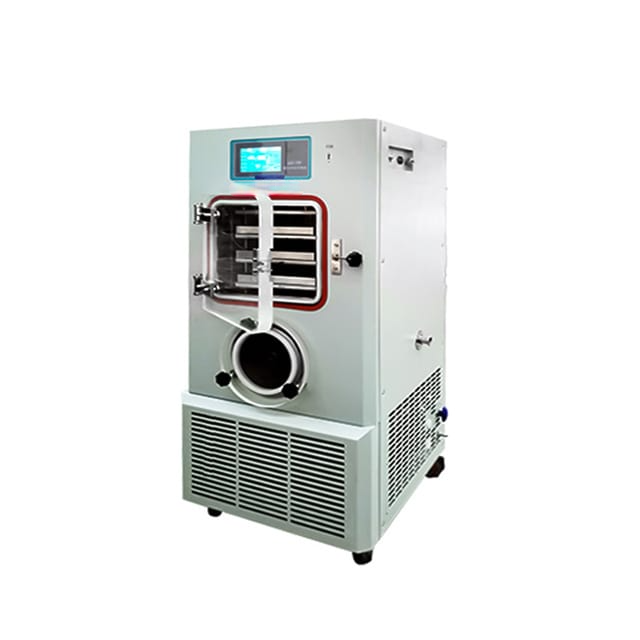

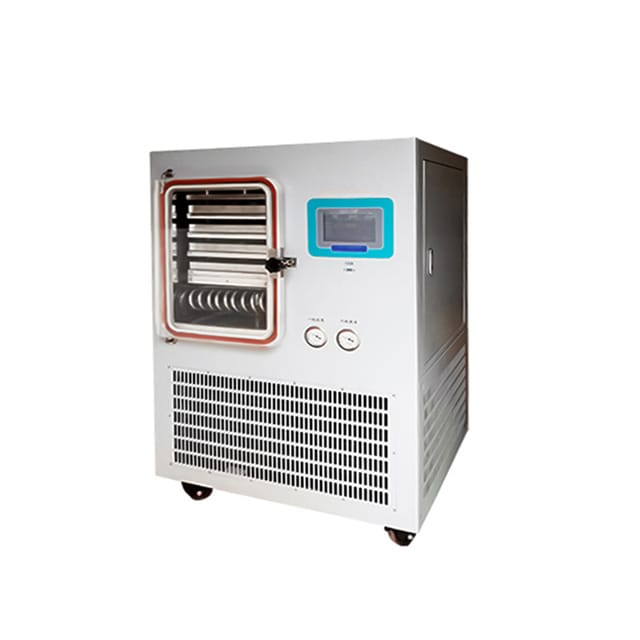

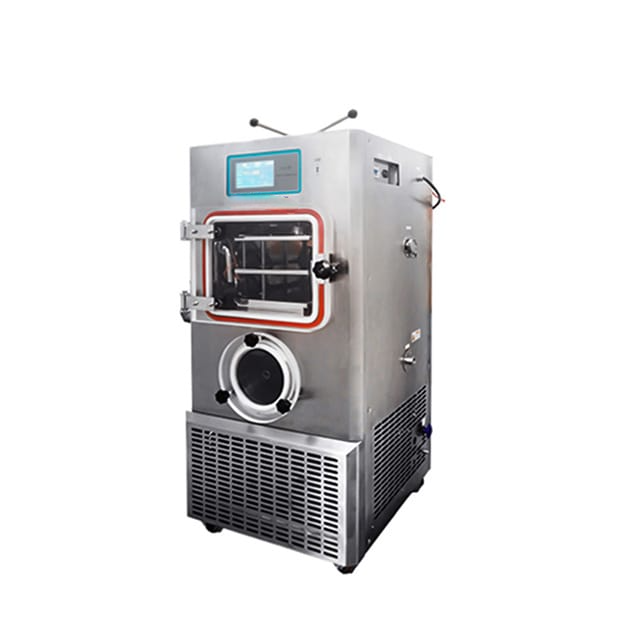

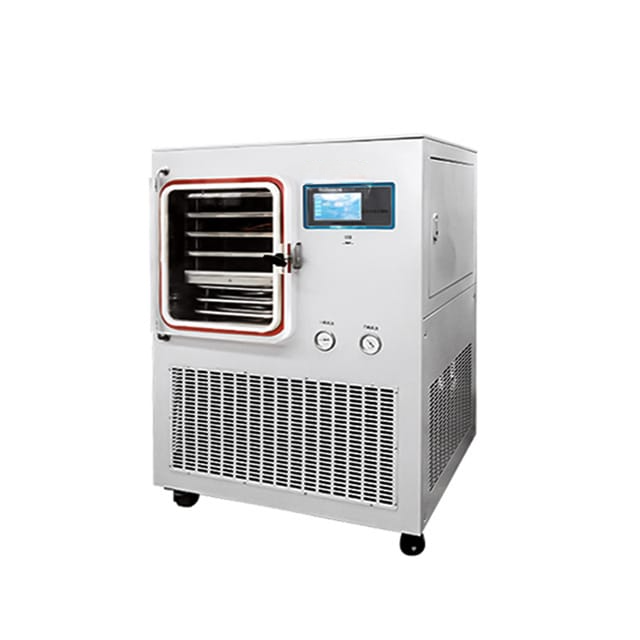

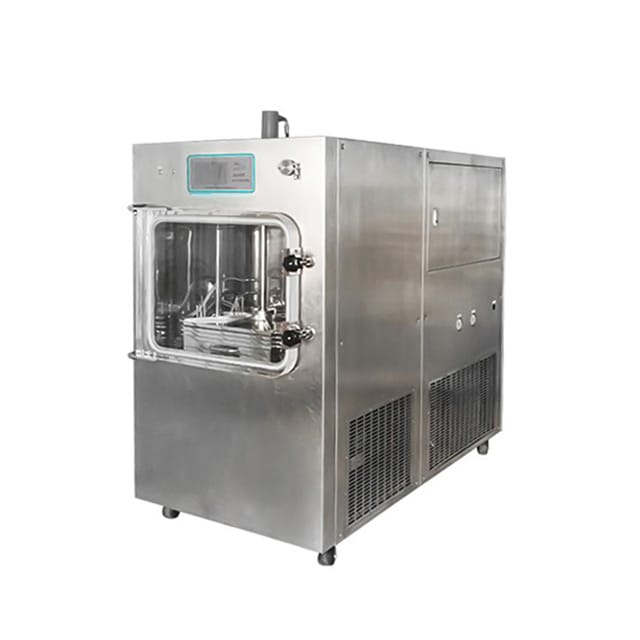

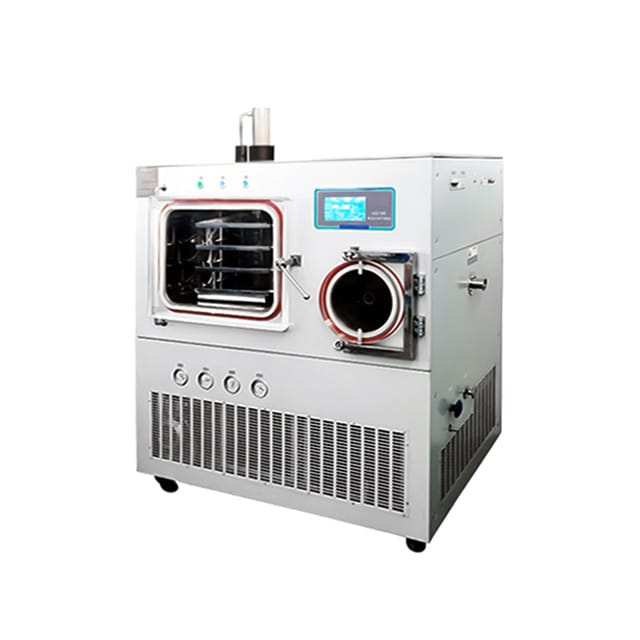

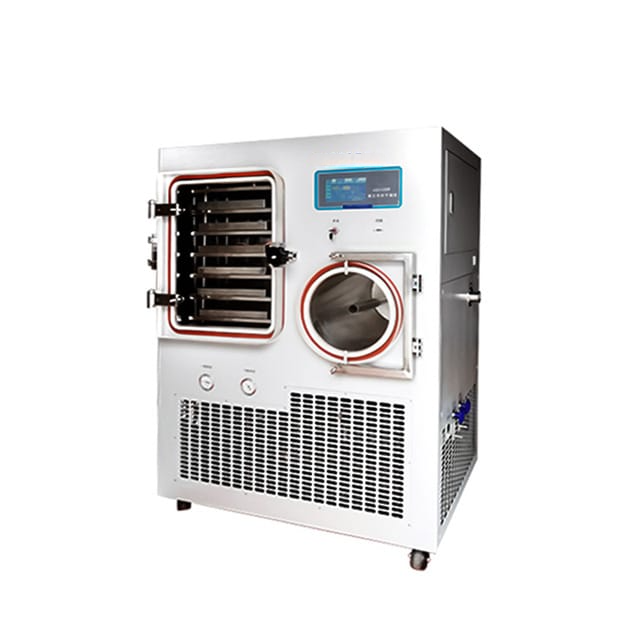

Pilot Freeze Dryer SMI-114P

CLICK TO SCAN

Description

JINDAL pilot series vacuum freeze dryer is suitable for laboratory samples of freeze drying test, pilot use, & for a small amount of production.

Latest Ergonomic Features:

  • Pre-Freezing & drying are at the same place
  • With cascade refrigeration Technology
  • Silicon oil is intermediate medium in the shelves for heating to ensure uniform drying of material
  • Shelf temperature is adjustable & easy to control
  • Tray can be cleaned & is easy to operate
  • The freeze dryer consists of a 7” colour touch screen linked to a PID intelligent control system
  •  The historical data can be accessed by touch of a button & has an inbuilt storage of data for 1 month
  • Equipped with on board USB interface for data download
  • The ice condenser, operation panel are made of SS 304 grade & easy to clean
  • Front door is made of transparent colourless organic glass, the test process can be easily viewed.

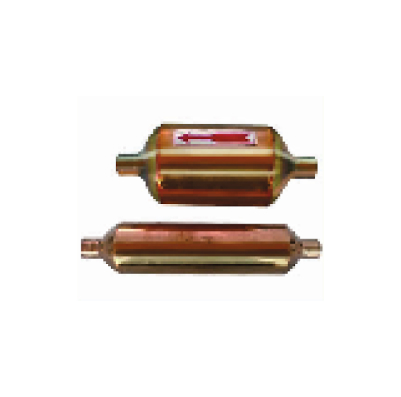

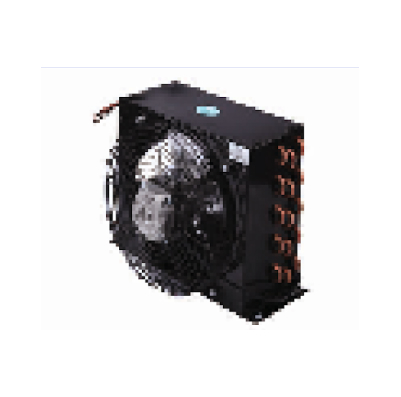

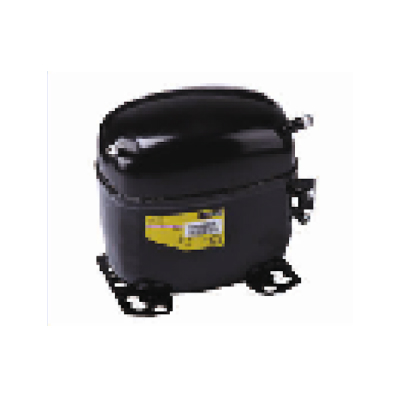

Components Used

Previous
Next
Enquire Now

Technical Data:

Model

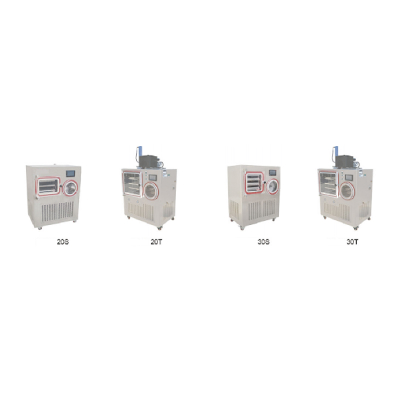

SMI-114P-20S (Standard)
SMI-114P-20T (Stoppering)
SMI-114P-30S (Standard)
SMI-114P-30T (Stoppering)
Freeze Drying Area
0.24 m2
0.3 m2
Shelf Temperature
-50℃～+70℃
Cold Trap Temperature
-80℃
Vacuum Degree
＜10 Pa
Max Water Capture Capacity
3.6Kg
4.5Kg
Cold Trap Volume
13.5L
Cold Trap Size (Diameter X H)
Φ240 X 300mm
Drying Chamber Size (W X D X H)
470 X 485 X 420mm
Shelf & Tray Size (W X D X H)
Shelf:305 X 405 X 17mm Tray: 300 X 400 X 20mm
Qty. Of Shelf & Tray
Shelf: 2+1 Tray: 2
Shelf: 3+1 Tray: 3
Sample Loading Capacity (Liquid)
2L
3L
Height Between Trays
145mm
90mm
Tray Temperature Difference
±1℃
Refrigerant
R404A + R23
Condenser Cooling Mode
Air Cooling
Defrost Mode
Electric Defrosting
Stoppering Mode
-
Hydraulic
-
Hydraulic
Total Qty. Of Vial
Φ20mm
468
702
Φ18mm
864
1296
Φ12mm
1584
2376
Vacuum Pump
6L/S(22m3/h)
Power Supply
AC220V/50Hz/60Hz(single phase), AC415V/50Hz/60Hz(three phase)
Electric Defrosting Consumption
400W
Silicone Oil Heating Rods Consumption
400W
Hydraulic Pressure Station Consumption
-
1.5KW
-
1.5KW
Total Consumption
3KW
4.5KW
3KW
4.5KW
External Size (W X D X H)
1200 X 750 X 1250/1600mm
Packing Size (W X D X H) And Gross Weight
Main Body
1200X870X1500mm (310Kg)
1070X880X1800mm (360Kg)
1300X880X1500mm (320Kg)
1300X880X1850mm (400Kg)
Vacuum Pump
600 X 210 X 410mm (40Kg)
715 X 280 X 315mm (65Kg)

Optional accessory: Imported vacuum pump

Note: Exterior casing: (Optional): stainless steel or GI steel with powder coating

Model
SMI-114P-50S (Standard)
SMI-114P-50T (Stoppering)
SMI-114P-100S (Standard)
SMI-114P-100T (Stoppering)
Freeze Drying Area
0.5 m2
1 m2
Shelf Temperature
-50℃～+70℃
Cold Trap Temperature
-80℃
Vacuum Degree
＜10 Pa
Max Water Capture Capacity
7.5Kg
15Kg
Cold Trap Volume
18L
35L
Cold Trap Size (Diameter X H)
Φ255 X 350mm
Φ300 X 500mm
Drying Chamber Size (W X D X H)
470 X 548 X 550mm
640 X 685 X 550mm
Shelf & Tray Size (W X D X H)
Shelf:305 X 455 X 17mm Tray: 300 X 450 X 20mm
Shelf:550 X 480 X 17mm Tray: 475 X 272 X 25mm
Qty. Of Shelf & Tray
Shelf: 4+1,Tray: 4 Shelf: 3+1,Tray: 3
Shelf: 6+1,Tray: 6 Shelf: 4+1,Tray: 4
Sample Loading Capacity (Liquid)
5L
10L
Height Between Trays
90mm
Tray Temperature Difference
±1℃
Refrigerant
R404A + R23
Condenser Cooling Mode
Air Cooling
Defrost Mode
Electric Defrosting
Stoppering Mode
-
Hydraulic
-
Hydraulic
Total Qty. Of Vial
Φ20mm
1040
2016
Φ18mm
1944
3944
Φ12mm
3456
7020
Vacuum Pump
8L/S(29m3/h)
15L/S(54m3/h)
Power Supply
AC220V/50Hz/60Hz(single phase) AC415V/50Hz/60Hz(three phase)
AC415V/50Hz/60Hz(three phase) AC220V/50Hz/60Hz(three phase)
Electric Defrosting Consumption
500W
600W
Silicone Oil Heating Rods Consumption
800W
1600W
Hydraulic Pressure Station Consumption
-
1.5KW
-
1.5KW
Total Consumption
7KW
8.5KW
8.5KW
10KW
External Size (W X D X H)
1200 X 850 X 1500/1850mm
1500 X 1000 X 1600/1950mm
Main Body Weight
470 Kg
730 Kg
Packing Size (WXDXH) And Gross Weight
Main Body
1250 X 900 X 1560mm (472 Kg)
1250 X 900 X 1880mm (520Kg)
1700 X 1120 X 1800mm (650Kg)
1700 X 1120 X 1960mm (750Kg)
Vacuum Pump
715 X 280 X 315mm (65Kg)
715 X 280 X 315mm (85Kg)

Optional accessory: Imported vacuum pump

Note: Exterior casing: (Optional): stainless steel or GI steel with powder coating
