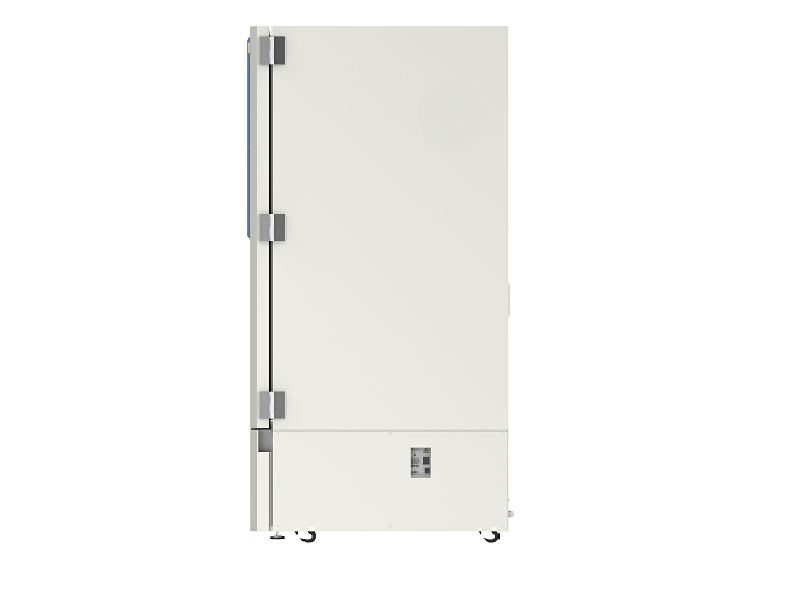

This Jindal Touch Screen ULT Vaccine Freezer -40 to -86℃ Android-controlled, ultra-low energy-saving freezer can be used as a laboratory freezer, ultra-low medical freezer, or deep freezer. It is suitable for applications in hospitals, health and disease prevention systems, colleges and universities, research institutions, the electronics industry, biological engineering, and more.
The SMI-165ICS-SA-396 is a highly sought-after ultra-low temperature freezer, ideal for COVID-19 vaccine storage.
A 7-inch intelligent HD touchscreen provides a user-friendly interface and more precise temperature control. Equipped with Bluetooth, Wi-Fi, and other features, it offers convenient operation and comprehensive functionality.
The high-precision microcomputer control system, combined with platinum resistor sensors, allows users to set the internal cabinet temperature within a range of -40℃ to -86℃.
The comprehensive audible and visual alarm system includes alerts for high/low temperature, sensor failure, power failure, low battery, door ajar, main board communication error, high ambient temperature, built-in data logger USB failure, and samples past their expiration date.
The compressor start delay and stopping interval protection ensure reliable operation.
Both the touchscreen controller and keyboard controller are equipped with password protection, preventing unauthorized adjustments to the operation.
The six sides of the cabinet are constructed from high-efficiency VIP vacuum thermal insulation panels. The thermal insulation design of the inner door, made from foaming material, and the outer door system, which has been awarded multiple patents, significantly enhance the freezer’s thermal insulation performance.
The newly designed assisting handle and vacuum release port allow the freezer to be operated with one hand, making it easier to open and close the outer door.
The newly added file box makes recording easier and more convenient.
The liner, made from stainless steel for medical use, is low-temperature tolerant, corrosion-resistant, has a long service life, and is easy to clean.
The universal casters and leveling feet design offer greater convenience for movement and secure fixation.
Connect to Wi-Fi to upload data to cloud storage, monitor the device, quickly check the refrigerator’s status, and ensure sample safety. An optional Bluetooth printer allows for real-time export of temperature data, temperature graphs, setting operations, and other information to track the freezer’s operating status. Optional features such as card unlocking, fingerprint unlocking, and facial recognition unlocking are available for quick access to samples.
Model No. | SMI-165ICS-SA-396 |
Capacity(L) | 396 |
Internal size(W X D X H)mm | 440 X 696 X 1266 |
External size(W X D X H)mm | 785 X 1041 X 1947 |
Package size(W X D X H)mm | 890 X 1165 X 2158 |
NW/GW(Kgs) | 237/315（Wood Packing） |
Temperature range | -40 to -86℃ |
Ambient temperature | 16-32℃ |
Cooling performance | -86℃ |
Climate class | N |
Controller | Microprocessor |
Display | HD intelligent touch screen |
Compressor | 1Nos. |
Cooling method | Direct cooling |
Defrost mode | Manual |
Refrigerant | Mixture gas |
Insulation thickness(mm) | L/R: 130, B: 130 |
External material | Cold rolled steel |
Inner material | Stainless steel |
Shelves | 3(stainless steel) |
Door lock with key | Yes |
External lock | Yes |
Access port | 2pcs. Ø 25 mm |
Casters | 4+(2 leveling feet) |
Data logging/Interval/Memory capacity | USB/Record every 5 minute / 10 years |
Backup battery | Yes |
WIFI | Yes |
Temperature | High/Low temperature, High ambient temperature |
Electrical | Power failure, Low battery |
System | Sensor failure, Main board communication error, Condenser overheating, Door ajar |
Standard | RS485, Remote alarm contact |
Options | Chart recorder, CO2 backup system |
