ULT Vaccine Freezer -86°C SMI-165ULT-HC-776

Home ≫Ultra Low Temp.>ULT Vaccine Freezer -86°C SMI-165ULT-HC-776

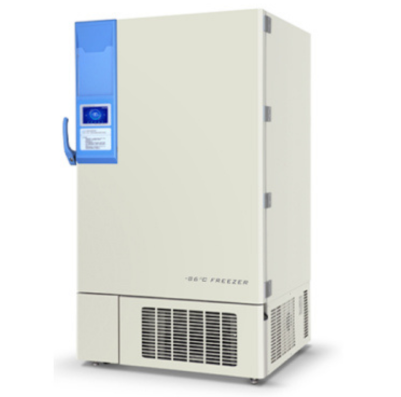

ULT Vaccine Freezer -86°C SMI-165ULT-HC-776

CLICK TO SCAN

Description

  • Fast refrigeration for target temperature
  • High-efficiency compressor, Hydrocarbon environmental refrigerant
  • Ultra low noise design for environment friendly
  • Reduce power consumption of the freezer by 40%
  • Equipped with VIP vacuum thermal insulation plate

Jindal ULT Vaccine Freezer -86°C SMI-165ULT-HC-776 brings super updates in ultra low temperature freezer series. The new structure of the deep freezer for laboratory and medical comes with 2 independent inner doors. The optimized foaming insulation inside the doors provides better temperature performance. This ultra low freezer/ lab freezer is specially designed to meet the demands for long-term and safe storage of the high-valued medical and laboratory materials.

Previous
Next
Enquire Now

High configuration control system

The ultra low freezer has a new look 7 inches LED touch screen display, giving you a more user-friendly and convenient interface. And it makes sure the temperature displays accurately in 0.1℃. And to set the inside temperature from -40°C~-86°C.

Safety alarm system

This ultra cold freezer provides 10 types of audible and visible alarms. The safety alarm system includes high or low temperature alarm,, door ajar alarm, power failure alarm, Condenser overheating alarm, and system failure alarm.

Exquisite structure design

Jindal SMI-165ULT-HC-776 medical  and laboratory ultra low freezer is designed with 2 independent inner doors with foaming insulation, which can ensure better temperature performance. The external material is made of high quality structural steel, while the inner material is made of stainless steel.

Features

  • India’s leading manufacturer of ultra-low temperature freezers.
  • Equipped with SECOP compressor and famous Germany brand EBM fans.
  • Adopted CFC-free patent hydrocarbon refrigerant for fast refrigeration and ensuring environment friendly.
  • PT-100 platinum resistance sensors for sensitively detecting the temperature changes.
  • Lockable keyboard and password protected to prevent from adjusting parameters without authorizing.
  • Equipped with VIP Plus vacuum insulation panel in 130mm foaming insulation to ensure the stability of temperature.
  • Designed with a lockable front door with full height handle to prevent unauthorized access.
  • For safe storage, it allows machine startup delay and power off protection.
  • For the casters, it is fitted with 4 PCS casters and 2 leveling feet for easy moving.
  • The optional configurations are warning lamp, smart temperature monitor system, temperature recorder, and CO2 back-up system.
  • Certificate: CE certificate, ISO9001, ISO14001,ISO13485
  • SMI-165ULT-HC-776 with twin-compressor, if one is damaged, the other one could keep the temperature at -70℃ stably

 Scope of Application

This HC ultra low temperature  freezer can be used as laboratory freezer, ultra low medical freezer and deep freezer , suitable for application in hospitals, health and disease prevention systems, colleges and universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, and more.

Specifications

Model
SMI-165ULT-HC-776
Cabinet Type
Upright
Capacity(L）
776
Internal Size(W*D*H)mm
865*696*1286
External Size(W*D*H)mm
1205*1025*1955
Package Size(W*D*H)mm
1320*1155*2171
NW(Kg)
365/455
Performance
Temperature Range
-40～-86℃
Ambient Temperature
16-32℃
Cooling Performance
-86℃
Climate Class
N
Controller
Microprocessor
Display
Touch Screen
Refrigeration
Compressor
2pcs
Cooling Method
Direct Cooling
Defrost Mode
Manual
Refrigerant
HC
Insulation Thickness(mm)
130
Construction
External Material
Cold rolled steel
Inner Material
Stainless Steel
Shelves
3(stainless steel)
External Lock
Yes
Access Port
3pcs. Ø 25 mm
Door lock with key
Yes
Backup Battery
Yes
Data logging/Interval/Memory capacity
USB/Record every 1 minutes/365 days
Casters
4+(2 leveling feet)
Alarm
Temperature
High/Low temperature,High ambient temperature
Electrical
Power failure,Low battery
System
Sensor failure,Main board communication error,Condenser overheating,Door ajar
Accessory
Standard
Remote alarm contact
Options
Chart recorder, CO2 backup system
