ULT Vaccine Freezer -86°C SMI-165ULT-HC-856

Home ≫Ultra Low Temp. >  HC Ultra Low Freezer -86℃ >ULT Vaccine Freezer -86°C SMI-165ULT-HC-856

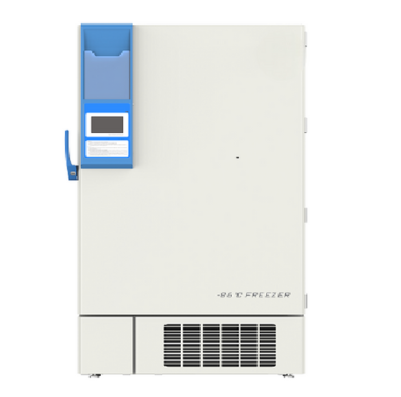

ULT Vaccine Freezer -86°C SMI-165ULT-HC-856

CLICK TO SCAN

Description

The Jindal ULT Vaccine Freezer -86°C SMI-165ULT-HC-856 is a newly designed deep freezer for laboratory and medical use, featuring two independent inner doors. Its optimized foaming insulation ensures superior temperature performance. This ultra-low freezer is specifically engineered to meet the demands for long-term, secure storage of high-value medical and laboratory materials.

Advanced Control System

The ultra-low freezer features a new 7-inch LED touchscreen display, offering a more user-friendly and convenient interface. It ensures precise temperature display accuracy to 0.1℃, and allows you to set the internal temperature within a range of -40°C to -86°C.
Previous
Next
Enquire Now

Detailed Images

Advanced safety alert system

This ultra-cold freezer is equipped with 10 types of audible and visible alarms. The safety alarm system includes high/low temperature alarms, door ajar alarm, power failure alarm, condenser overheating alarm, and system failure alarm.

Elegant structural design

The Jindal SMI-165ULT-HC-856 medical and laboratory ultra-low freezer features two independent inner doors with foaming insulation, ensuring superior temperature performance. The exterior is constructed from high-quality structural steel, while the interior is made of durable stainless steel.

Features

  • India’s leading manufacturer of ultra-low temperature freezers offers advanced features for reliable performance and environmental sustainability
  • Equipped with SECOP compressors and renowned German brand EBM fans
  • Uses a patented CFC-free hydrocarbon refrigerant for fast cooling while being environmentally friendly
  • Features PT-100 platinum resistance sensors for highly sensitive temperature detection
  • Includes a lockable keyboard and password protection to prevent unauthorized parameter adjustments
  • Designed with VIP Plus vacuum insulation panels and 130mm foaming insulation for exceptional temperature stability
  • Features a lockable front door with a full-height handle to prevent unauthorized access
  • Ensures safe storage with machine startup delay and power-off protection
  • Fitted with 4 casters and 2 leveling feet for easy mobility
  • Optional configurations include a warning lamp, smart temperature monitoring system, temperature recorder, and CO2 backup system
  • Certified with CE, ISO9001, ISO14001, and ISO13485 certifications
  • The SMI-165ULT-HC-856 are equipped with twin compressors; if one fails, the other maintains a stable temperature of -70℃

Technical Data

Model No.:

SMI-165ULT-HC-856

Cabinet type

Upright

Capacity(L)

858

Internal size(W X D X H)mm

877 X 696 X 1378

External size(W X D X H)mm

1217 X 1025 X 1994

Package size(W X D X H)mm

1330 X 1155 X 2176

NW/GW(Kgs)

390/470(wood packing)

Temperature range

-40 to -86℃

Ambient temperature

16-32℃

Cooling performance

-86℃

Climate class

N

Controller

Microprocessor

Display

 Touch screen

Compressor

2 No.

Cooling method

Direct cooling

Defrost mode

Manual

Refrigerant

HC

Insulation thickness(mm)

L/R:130, B:130

External material

Cold rolled steel

Inner material

Stainless steel

Shelves

3(stainless steel)

Door lock with key

Yes

External lock

Yes

Access port

3pcs. Ø 25 mm

Casters

4+(2 leveling feet)

Data logging/Interval/Memory capacity

USB/Record every 5 minutes / 10 year

Backup battery

Yes

Temperature

High/Low temperature, High ambient temperature

Electrical

Power failure

System

Sensor failure, Main board communication error, Condenser overheating alarm, Door ajar, System failure

Standard

Remote alarm contact

Options

Chart recorder, CO2 backup system
