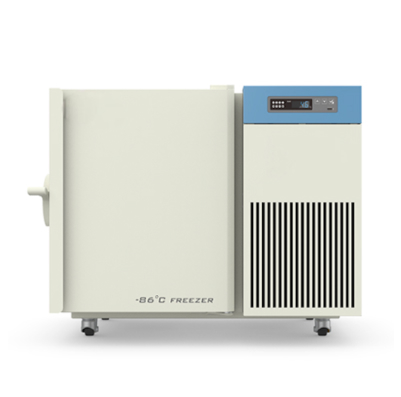

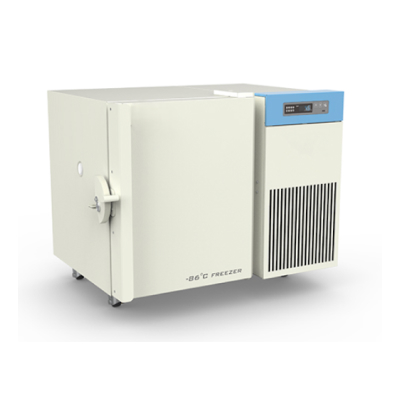

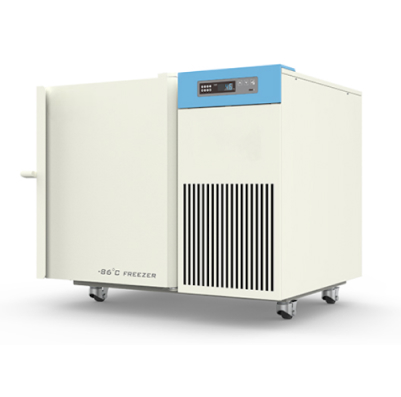

The Jindal Under Counter ULT Freezer -86°C SMI-165EUCF-HC-48 is compact yet highly efficient. It is specifically designed for the storage of low-temperature scientific experiments, plasma, biomaterials, and other biological products. This mini deep freezer is ideal for use in hospitals, blood banks, university laboratories, electronic industries, research institutes, military applications, pelagic fishery companies, and sanitation or anti-epidemic efforts.
Equipped with a microprocessor-based temperature controller, it allows you to set a temperature range from -40°C to -86°C. Its upright design and galvanized steel sheet interior (with an optional stainless steel upgrade) make it easy to clean. Additionally, this ultra-low temperature freezer offers a reliable alarm system, complete with a keyboard lock and password access for enhanced security.
Equipped with a microprocessor-based temperature control system, it allows the temperature range to be freely set between -40℃ and -86℃. At an ambient temperature of 32℃, the lowest temperature can be set to -86℃ with a precision of 0.1℃.
This under-counter ultra-low temperature freezer features a lockable door to prevent unauthorized access. It is designed with a delayed start function and a safe stop interval between restarts and shutdowns. The compact deep freezer is equipped with an audible and visual alarm system, including alarms for power failure, high/low temperature, communication failure, high ambient temperature, and sensor failure, among others.

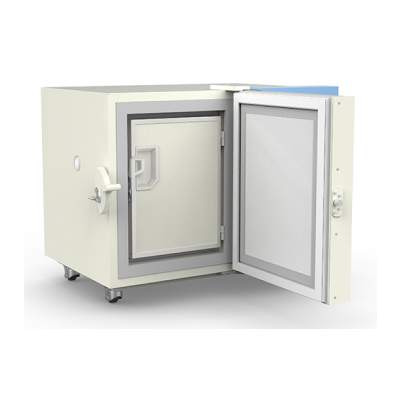

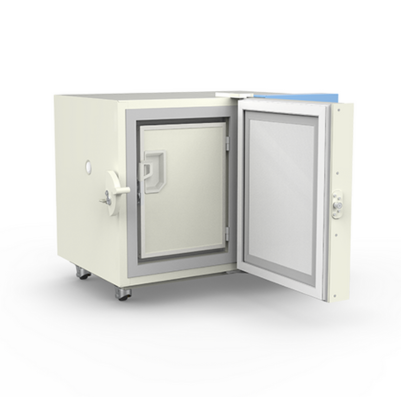

The four casters make the freezer easy to handle. Its front lockable door features VIP Plus vacuum insulation, ensuring excellent temperature uniformity and preventing overheating. The 110mm foaming insulation design further enhances temperature performance.
The Undercounter Ultra-Low Temperature Freezer SMI-165EUCF-HC-48 can be used as a laboratory freezer, ultra-low medical freezer, or deep freezer. It is suitable for use in hospitals, blood banks, health and disease prevention systems, colleges and universities, research institutions, the electronics industry, biological engineering, and more.
Model No. | SMI-165EUCF-HC-48 |
Cabinet type | Upright |
Capacity(L) | 48 |
Internal size(W X D X H)mm | 305 X 425 X 430 |
External size(W X D X H)mm | 951 X 700 X 757 |
Package size(W X D X H)mm | 1110 X 840 X 935 |
NW/GW(Kgs) | 104/156(wood packing) |
Temperature range | -40 to -86℃ |
Ambient temperature | 16-32℃ |
Cooling performance | -86℃ |
Climate class | N |
Controller | Microprocessor |
Display | Digital display |
Compressor | 1Nos. |
Cooling method | Direct cooling |
Defrost mode | Manual |
Refrigerant | HC |
Insulation thickness(mm) | L/R:110, B:110 |
External material | Cold rolled steel |
Inner material | Stainless steel |
Shelves | 1(stainless steel) |
Door lock with key | Yes |
External lock | Yes |
Padlock | Yes |
Access Port | 1pc. Ø 25 mm |
Casters | 4 |
Data logging/Interval/Memory capacity | USB/Record every 10 minutes / 100,000 data |
Backup battery | Yes |
Temperature | High/Low temperature, High ambient temperature, Condenser overheating alarm |
Electrical | Power failure, Low battery |
System | Sensor failure, Door ajar, Communication error, Built-in USB datalogger failure |
Standard | RS485, Remote alarm contact |
Options | CO2 backup system |
