Under Counter ULT Freezer -86°C SMI-165EUCF-HC-98

Home ≫ Ultra Low Temp. >Economy ULT -86°C HC >Under Counter ULT Freezer -86°C SMI-165EUCF-HC-98

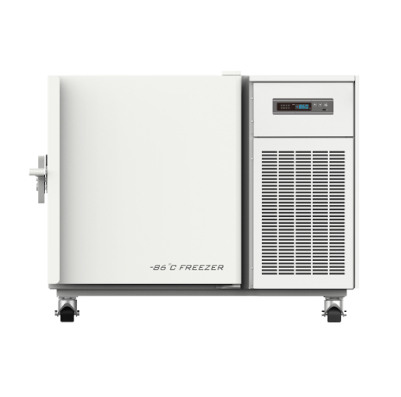

Under Counter ULT Freezer -86°C SMI-165EUCF-HC-98

CLICK TO SCAN

Description

The Jindal Under Counter ULT Freezer -86°C SMI-165EUCF-HC-98 is an under-counter deep freezer designed for laboratory and medical use. This ultra-low deep freezer features high-precision temperature control, ensuring consistent temperatures within the cabinet, ranging from -40°C to -86°C. It is designed with a human-oriented approach, promoting energy efficiency and an eco-friendly, pollution-free environment. The freezer is ideal for the safe storage of laboratory research materials, pharmaceutical raw materials, and more. It is suitable for use in blood banks, health and disease prevention systems, hospitals, colleges, universities, research institutions, the electronics industry, biological engineering, military enterprises, and deep-sea fishing companies.

Previous
Next
Enquire Now

Temperature Control system

The -86°C ultra-low temperature freezer SMI-165EUCF-HC-98 features a microprocessor-based temperature control system, allowing you to set the temperature inside the cabinet within the range of -40°C to -86°C. It ensures precise temperature control with an accuracy of ±1°C.

Powderful Refrigeration System

The SMI-165EUCF-HC-98 small deep freezer is equipped with a Secop compressor and a renowned EMB fan, both of which are energy-efficient and environmentally friendly. The large finned condenser, with fins spaced 2 mm apart or less, ensures effective heat dissipation.

Effective Thermal Insulation System

This mini deep freezer is equipped with a VIP Plus vacuum insulation foaming door with a seal. Additionally, all six sides of the cabinet are made from high-performance vacuum insulation materials, which significantly enhance its thermal insulation performance.

Alarm System

This ultra-low temperature freezer features a lockable door to prevent unauthorized access. It also includes a delayed start function and a safe stop interval between restart and termination. The small deep freezer is equipped with an audible and visual alarm system, which includes alerts for power failure, high/low temperature, communication failure, high ambient temperature, sensor failure, and more.

Features

  • India’s leading manufacturer of ultra-low temperature freezers, featuring a high-precision microcomputer temperature control system for easy and precise temperature setting.
  • The platinum resistor temperature sensors enable more accurate temperature control.
  • The high-definition, user-friendly control panel allows for temperature range settings from -40°C to -86°C, with a digital temperature display accurate to 1°C. A lockable door, keyboard lock, and password access prevent unauthorized access and operation.
  • The upright deep freezer is constructed with stainless steel materials and painted steel panel outer materials, and includes four casters for easy handling.

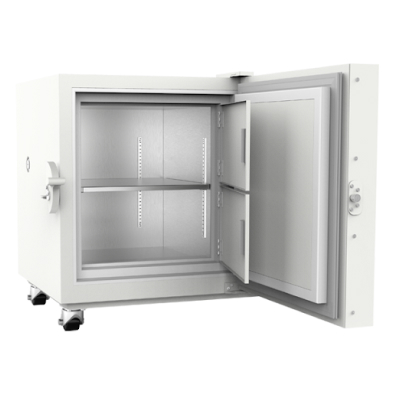

  • It is equipped with 2-3 adjustable stainless steel shelves, an inner door, and double silicone gasket seals.
  • Power supply: 220V/50Hz 1 phase, with the option to change to 220V 60Hz or 110V 50/60Hz.
  • Optional features include a chart recorder, CO2 backup system, freezer racks/boxes, and a remote alarm system.

Scope of Application

The Undercounter ultra-low deep freezer SMI-165EUCF-HC-98 can be used as a laboratory freezer, ultra-low medical freezer, and deep freezer. It is suitable for use in hospitals, health and disease prevention systems, research institutions, colleges and universities, the electronics industry, biological engineering, military enterprises, deep-sea fishing companies, and more.

Technical Data

Model No.

SMI-165EUCF-HC-98

Cabinet type

Upright

Capacity(L)

98

Internal size(W X D X H)mm

450 X 450 X 514

External size(W X D X H)mm

1066 X 742 X 820

Package size(W X D X H)mm

1230 X 863 X 991

NW/GW(Kgs)

145/189(wood packing)

Temperature range

-40 to -86℃

Ambient temperature

16-32℃

Cooling performance

-86℃

Climate class

N

Controller

Microprocessor

Display

Digital display

Compressor

1Nos.

Cooling method

Direct cooling

Defrost mode

Manual

Refrigerant

HC

Insulation thickness(mm)

L:90, R:115, B:91.5

External material

Cold rolled steel

Inner material

Stainless steel

Shelves

1(stainless steel)

Door lock with key

Yes

External lock

Yes

Access port

1pc. Ø 25 mm

Casters

4

Data logging/Interval/Memory capacity

USB/Record every 10 minutes /100,000data

Backup battery

Yes

Temperature

High/Low temperature,High ambient temperature

Electrical

Power failure , Low battery

System

Sensor failure, Communication error, Built-in datalogger USB failure, Condenser overheating alarm ,Door ajar

Standard

RS485,Remote alarm contact

Options

CO2 backup system
